Name: Lenovo 01CV840 netværkskort Intern Fiber 16000 Mbit/s
Brand: Lenovo
SKU: 01CV840
Price: 24050.000 DKK
Availability: OutOfStock

Lenovo

Lenovo 01CV840 netværkskort Intern Fiber 16000 Mbit/s
Varenummer: 03X9023

DKK 537,50 / Stk

DKK 430,00 ekskl. moms

Forventet på lager 15-05-2025

Lenovo 01CV840. Intern. Forbindelsesteknologi: Ledningsført, Værtsgrænseflade: PCIe, Grænseflade: Fiber. Maksimal dataoverførselshastighed: 16000 Mbit/s. Produktfarve: Sort, Grøn, Sølv

Mere information

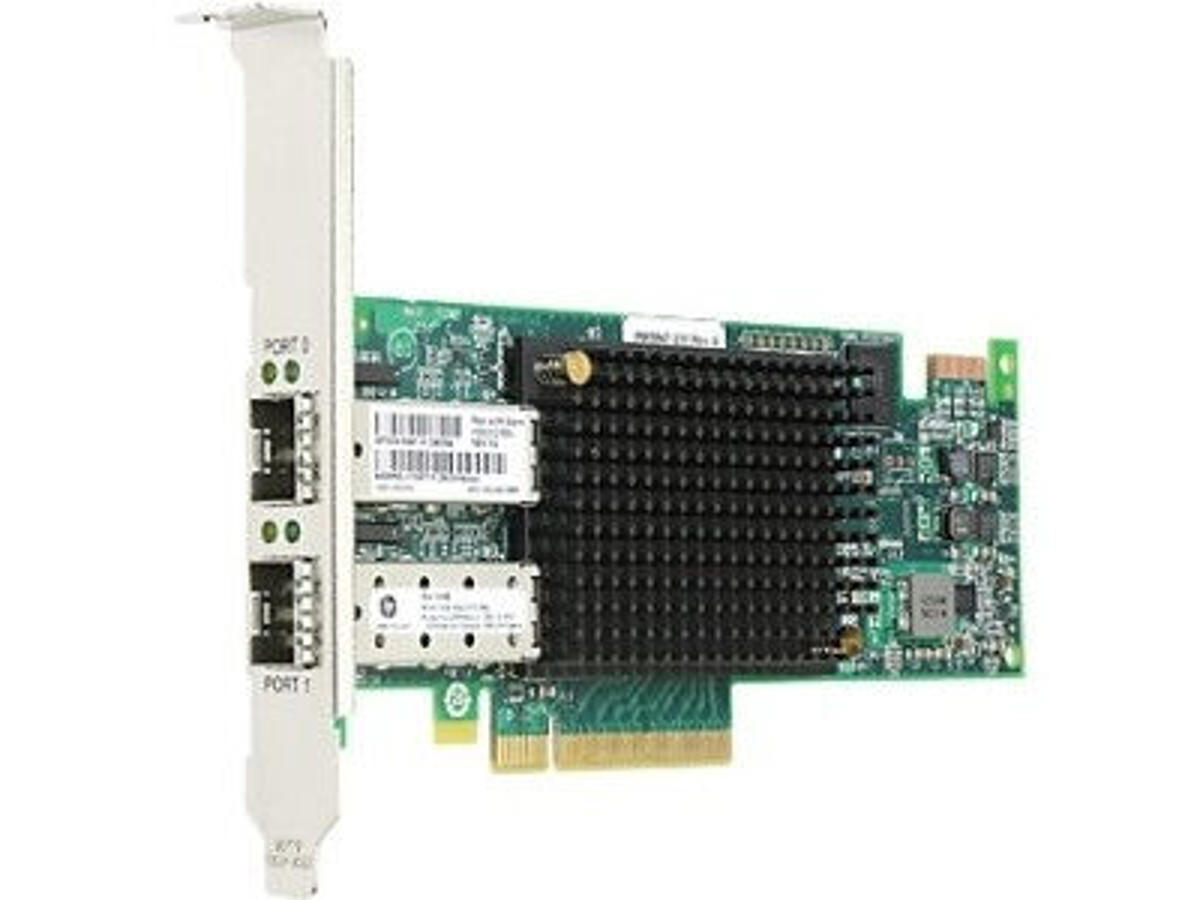

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.

The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.

Porte & Grænseflader
Forbindelsesteknologi	Ledningsført
Værtsgrænseflade	PCIe
Grænseflade	Fiber
Fiberkanal porte	2
Fiber optisk strømstik	FC, SFP+
PCI version	3.0
Netværk
Maksimal dataoverførselshastighed	16000 Mbit/s
Fuld duplex	Ja
Webbaseret administration	Ja
Maksimal driftstilstand	150 m
Design
Intern	Ja
Komponent til	Server
Produktfarve	Sort, Grøn, Sølv
Stativ-montering	Ja
Rackkapacitet	2U
Hot-swap	Ja
Understøtter hot-plug	Ja
LED-indikatorer	Ja
Gennemsnitstid mellem fejl (MTBF)	10000000 t
Certificering	AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition
Kompatible produkter	System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
Systemkrav
Understøttede Linux-operativsystemer	RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
Andre understøttede operativsystemer	VMware vSphere ESXi
Understøttede operativsystemer til servere	Windows Server 2012, Windows Server 2012 R2
Driftsbetingelser
Driftstemperatur (T-T)	0 - 55 °C
Opbevaringstemperatur (T-T)	-20 - 85 °C
Relativ luftfugtighed ved drift (H-H)	5 - 95%
Vægt & størrelser
Dybde	168 mm
Højde	69 mm
Emballeringsdata
Antal	1
Simpelt beslag	Ja
Pakketype	Kasse
Emballage indhold
Monteringsbeslag inkluderet	Ja
Tekniske detaljer
Compliance-certifikater	RoHS
Logistik data
Harmoniseret systemkode (HS)	85176990
Andre funktioner
PCI-SIG* SR-IOV kompetent	Ja
