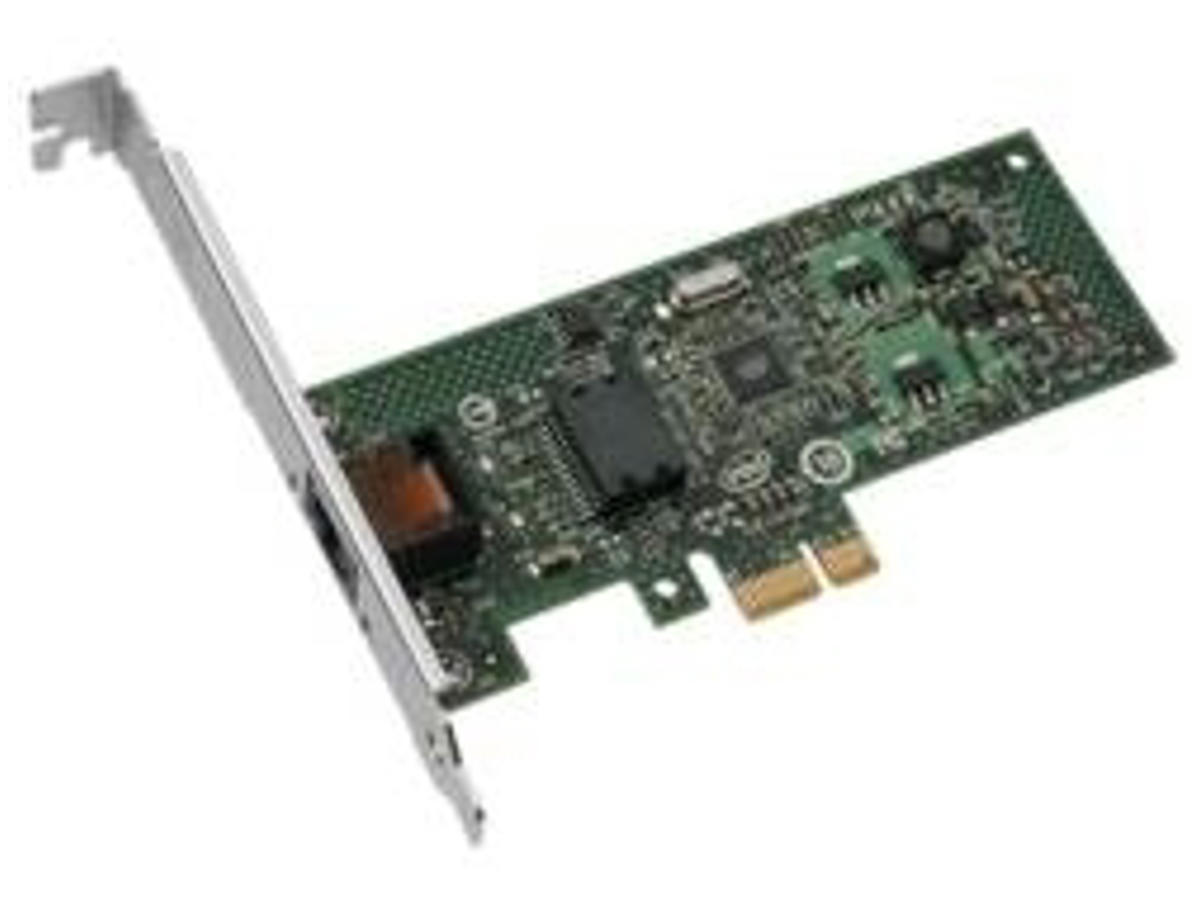

For PCs with PCI Express (PCIe*) slots, the Intel Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Ethernet LAN-porte (RJ-45) | 1 |
PCI version | 1.1 |
Netværk | |
Maksimal dataoverførselshastighed | 1000 Mbit/s |
Maksimal driftstilstand | 100 m |
LAN Kontroller | Intel® 82574L |
Design | |
Intern | Ja |
Certificering | FCC B, UL, CE |
Strømstyring | |
Strømforbrug (typisk) | 1,9 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Vægt & størrelser | |
Bredde | 55,3 mm |
Dybde | 119,2 mm |
Højde | 120 mm |
Logistik data | |
Harmoniseret systemkode (HS) | 8517620090 |
Andre funktioner | |
Overholdelse af branchestandarder | 802.3z |
Minimum systemkrav | Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS |
Kabeltype | Category-5 up to 100m |
Markedssegment | Desktop |
Understøttede dataoverførselshastigheder | 10/100/1000 Mbit/s |
Speed & slot width | 2.5 GT/s, x1 Lane |
Muligheder med lav halogen tilgængelig | Ingen |
Grænsefladetype | PCIe v1.1 (2.5 GT/s) |
Produkttype | Network Interface Card |
Thermal Design Power (TDP) | 1,9 W |
Processorserie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
Ethernet adapter ARK ID | 50395 |
Eksportkontrolklassisfikationsnummer (ECCN) | 5A991 |
Automatiseret sporingssystem til vareklassificering (CCATS) | NA |
Controller type | Intel 82574L |
Beslagshøjde | Low-Profile (LP) / Full-Height (FH) |
Lanceringsdato | Q3'08 |
Netværkskort kabel medium | Copper |
Netværkskorttype | Desktop |
Produktbeskrivelse URL | http://www.intel.com/Assets/PDF/prodbrief/319831.pdf |
Status | Launched |
Sidste ændring | 63903513 |
Produktfamilie | Intel Gigabit desktop adapter |
Produktserie | Intel Gigabit CT |
Produktkode navn | Shelter Island |
