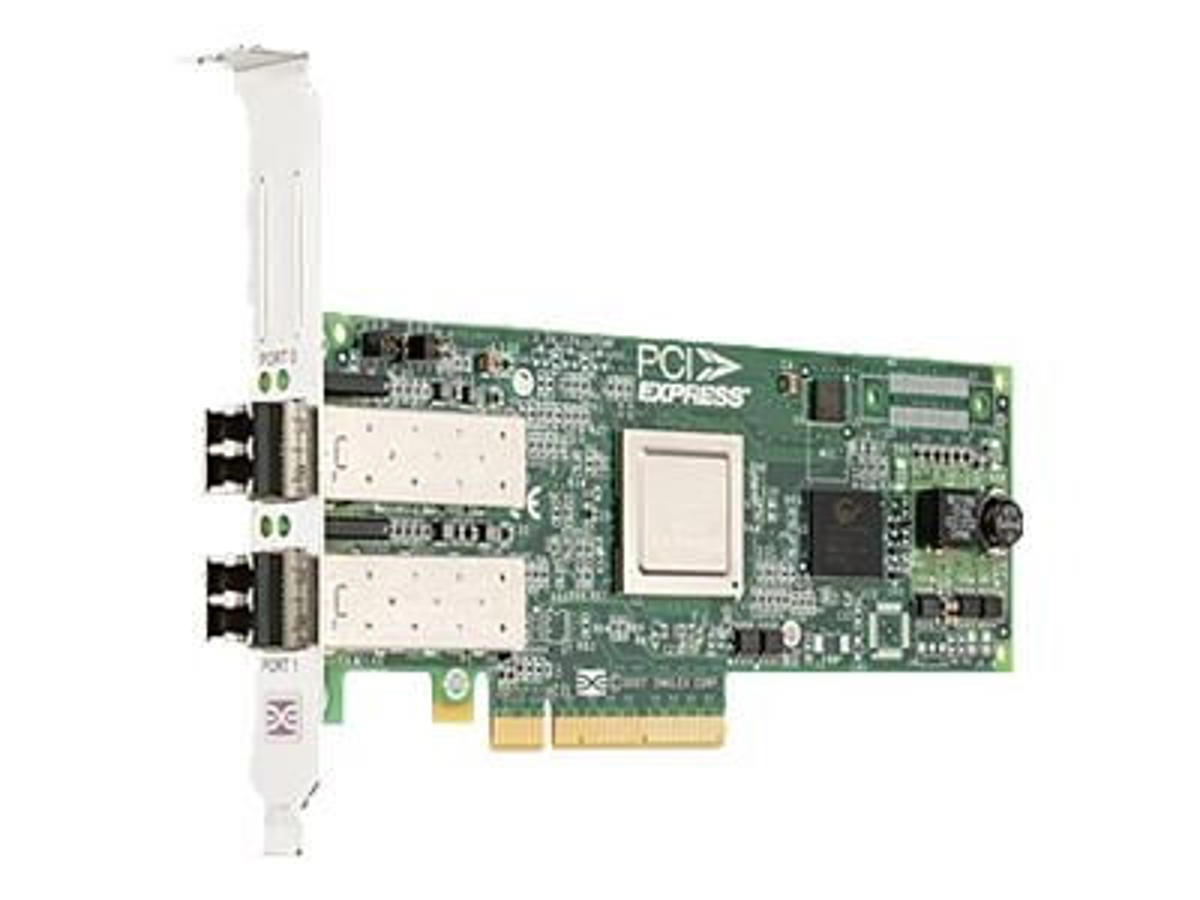

Emulex LPe12002-E HBA
The Emulex LPe12002-E HBA from Dell is a dual-ported host bus adapter that provides servers with limited PCI slots, greater port capacity and performance for virtualized data-center environments, critical information applications, and high-bandwidth applications such as backup, data replication and disaster-recovery implementations.
The LPe12002-E HBA is capable of delivering outstanding performance by leveraging a single ASIC design and combining unique hardware architecture to offer higher bus speed, fiber channel speed, lower latency and CPU offload.
Compatibility
This product is compatible with the following systems:
- PowerEdge R630;
- PowerEdge R730;
- PowerEdge R730XD.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Fiber |
Fiberkanal porte | 2 |
PCI version | 2.0 |
PCI-kort formfaktor | Halvhøjde (lavprofil) |
Netværk | |
Maksimal dataoverførselshastighed | 8192 Mbit/s |
Netværksstandarder | IEEE 802.3ae |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 10000 Mbit/s |
Kobber ethernet kabelteknologi | 10GBASE-T |
Fiber ethernet kabelteknologi | 10GBASE-ER, 10GBASE-EW, 10GBASE-LR, 10GBASE-LW, 10GBASE-SR, 10GBASE-SW |
Design | |
Intern | Ja |
Komponent til | Server |
Produktfarve | Grøn |
Certificering | CISPR 22 Class A, DHHS, EN55022 Class A, EMC, ICES-003 Class A, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, EN 60825-1, EN55024 Class A, BSMI Class A, VCCI Class A |
Kompatible produkter | PowerEdge R630 PowerEdge R730 PowerEdge R730XD |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate |
Understøttede operativsystemer til servere | Windows Server 2003, Windows Server 2008 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Dybde | 167,6 mm |
Højde | 68,9 mm |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
