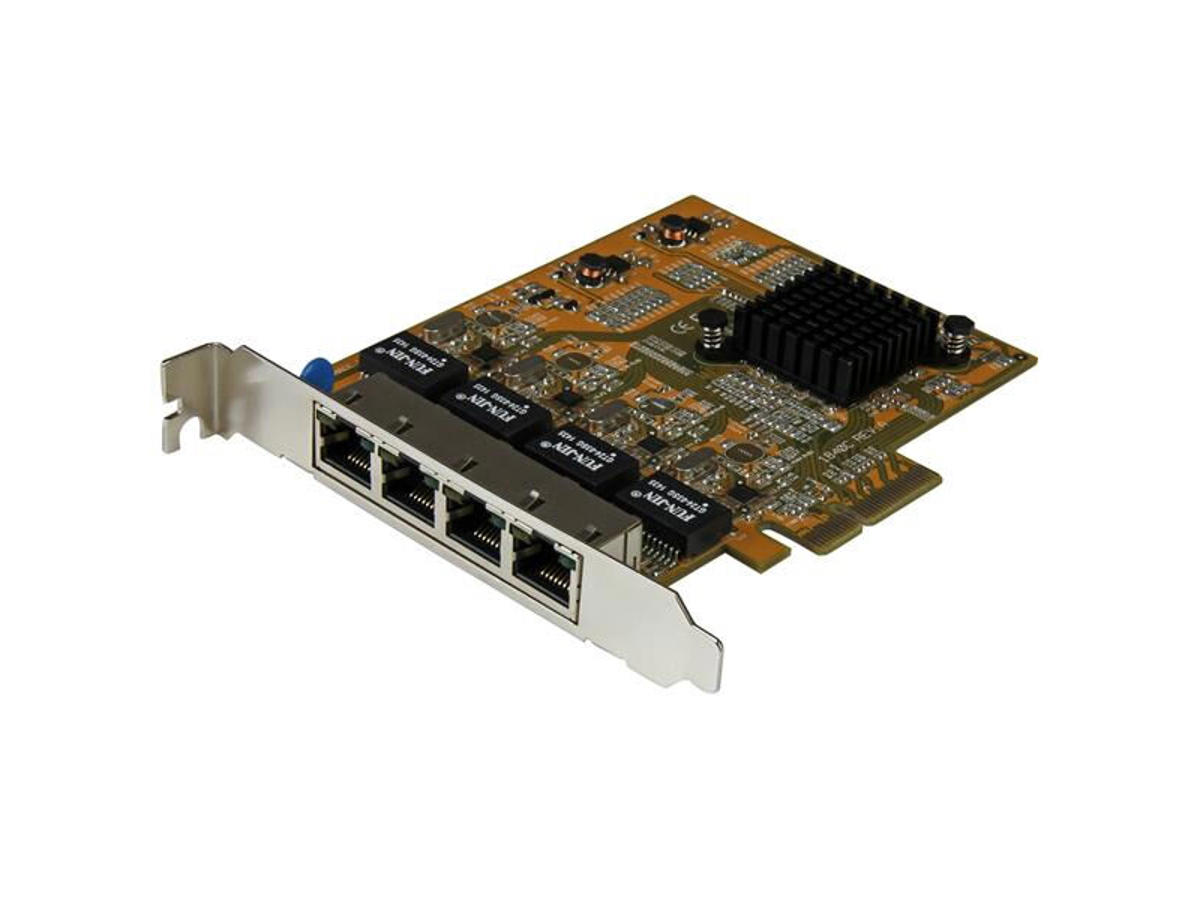

Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
The StarTech.com Advantage
- Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
- Realtek RTL8111G chipset for reliable performance
- Supports full-duplex flow control
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Ethernet |
Ethernet LAN-porte (RJ-45) | 4 |
Netværk | |
Maksimal dataoverførselshastighed | 2000 Mbit/s |
Netværksstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 10,1000,100 Mbit/s |
Kabelteknologi | 10/100/1000BaseT(X) |
Wake-on-LAN klar | Ja |
Auto MDIX IEEE | Ingen |
Fuld duplex | Ja |
Jumbo Frames support | Ja |
Design | |
Intern | Ja |
Chipsæt | Realtek RTL8111G |
LED-indikatorer | Aktivitet, Link |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Understøttede Linux-operativsystemer | Ja |
Understøttede operativsystemer til servere | Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -40 - 75 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 120 mm |
Dybde | 138 mm |
Højde | 18 mm |
Vægt | 95 g |
Emballeringsdata | |
Pakkebredde | 209 mm |
Pakkedybde | 145 mm |
Pakkehøjde | 40 mm |
Pakkevægt | 184 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Hovedkassens bredde (udvendigt) | 446 mm |
Hovedkassens længde (udvendigt) | 521 mm |
Hovedkassen højde (udvendigt) | 344 mm |
Produkter pr. hovedkasse (udvendigt) | 50 stk |
Andre funktioner | |
Flowkontrol support | Ja |
Farve på etui | Gul |
