Built-in High Availability
Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.
Made for demanding environments

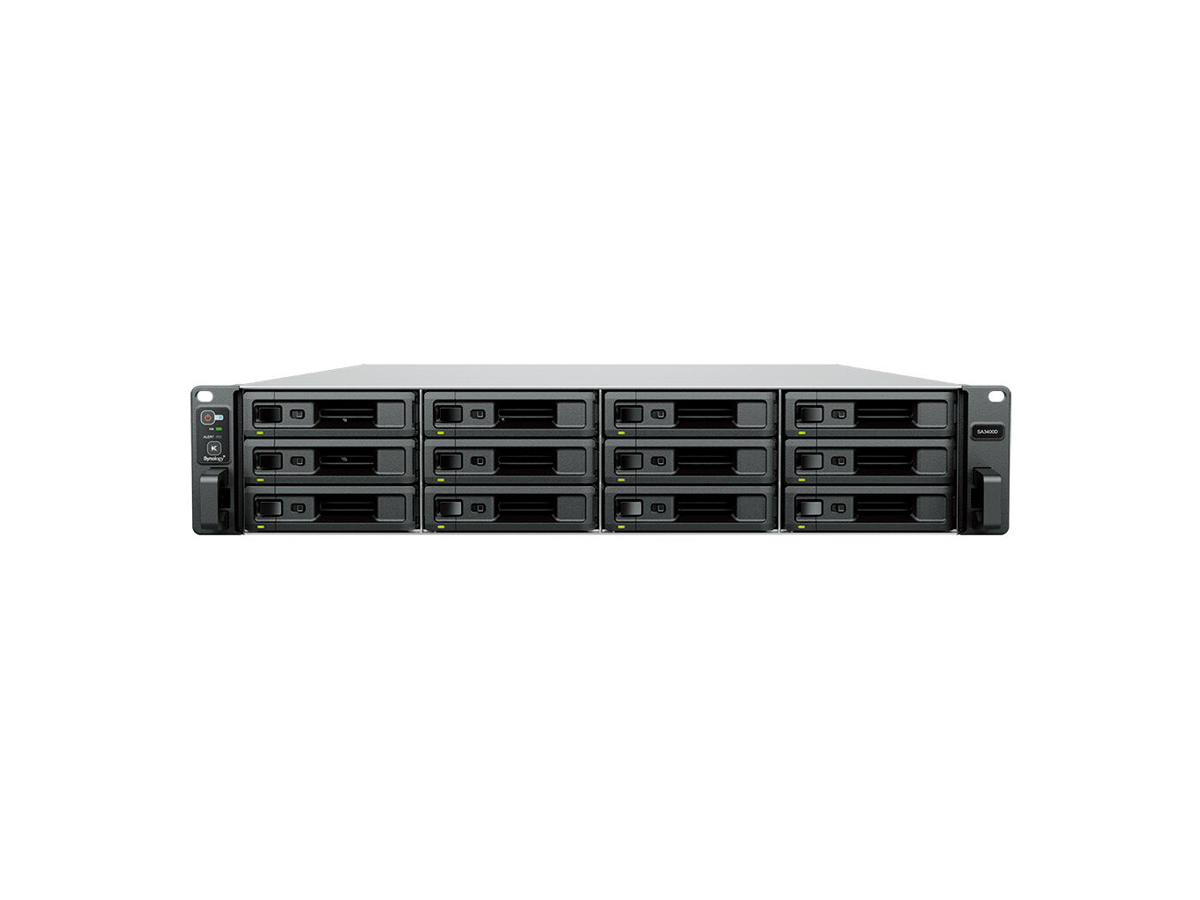

The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.
Consolidate your data infrastructure
Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.
Flexible options to meet changing needs
Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.
Add storage capacity on demand
Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.
Boost network and I/O performance
Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.
Performance backed by Synology drives
Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.
Lagring | |
Datalagringsdriver installeret | Ingen |
Antal understøttede lagerdiske | 12 |
Installeret lagerdisktype | Ingen |
Understøttet datalagringsdrev typer | HDD & SSD |
Grænseflade til lagerdisk | Serial Attached SCSI (SAS) |
Understøtter RAID | Ja |
Understøttede lagerdisk størrelser | 2.5,3.5" |
RAID-niveauer | 0, 1, 5, 10, JBOD |
Hot-swap drevbåse | Ja |
Understøttede filsystemer | BTRFS, ext4 |
Processor | |
Processorserie | Intel® Xeon® D |
Processorproducent | Intel |
Processormodel | D-1541 |
Processorfrekvens | 2,1 GHz |
Processor boost frekvens | 2,7 GHz |
Processorkerner | 8 |
Processor-cache | 12 MB |
CPU-konfiguration (maks.) | 1 |
Hukommelse | |
Intern hukommelse | 8 GB |
Intern hukommelsestype | DDR4 |
Maksimal understøttede RAM | 64 GB |
Netværk | |
Ethernet LAN | Ja |
Understøttede netværksprotokoller | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
Link aggregering | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 3 |
USB-port | Ingen |
Design | |
Kabinettype | Stativ (2U) |
Kølingstype | Aktiv |
Antal blæsere | 2 blæser(e) |
Ventilator diameter | 6 cm |
Præstation | |
Type | NAS |
Backup funktion | Ja |
Antal brugere | 16000 bruger(e) |
Adgangskontrolliste (ACL) | Ja |
Knap til nulstilling | Ja |
Strømstyring | |
Strømforsyningens kapacitet (PCU) | 500 W |
Antal strømforsyninger | 2 |
Redundant strømforsyning | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Vægt & størrelser | |
Bredde | 482 mm |
Dybde | 724 mm |
Højde | 88 mm |
Vægt | 19,7 kg |
Processor særlige funktioner | |
Intel® Secure Key Technology version | 1,00 |
Intel® TSX-NI-version | 1,00 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 35 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
