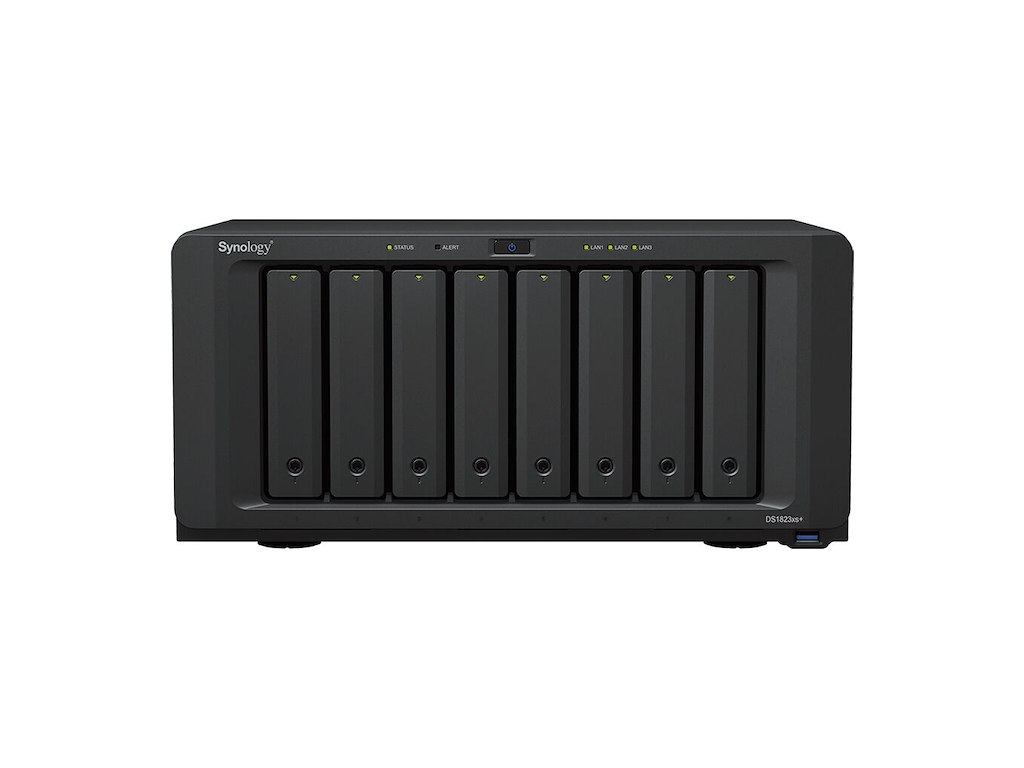

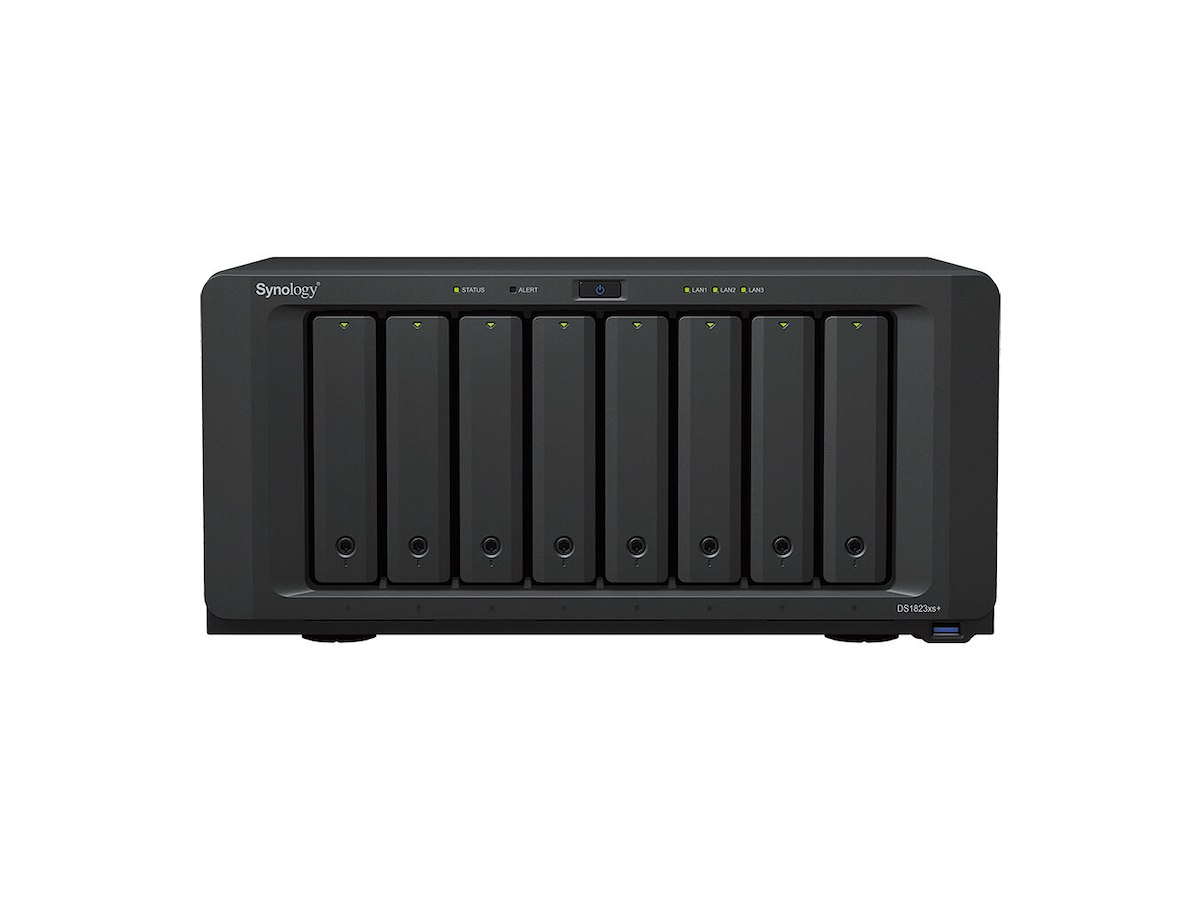

Synology DiskStation DS1823xs+ NAS Tower Ryzen Embedded V1780B 8 GB DDR4 48 TB HDD DiskStation Manager Sort
Varenummer: DS1823XSPLUS+HAT3300-6TX8
.
DKK 39.550,00 / Stk
DKK 31.640,00 ekskl. moms
  •
Synology DiskStation DS1823xs+. Type: NAS. Kabinettype: Tower. Enhedsklasse: Små & mellemstore virksomheder. Processorserie: Ryzen Embedded, Processormodel: V1780B, Processorfrekvens: 3,35 GHz. Intern hukommelse: 8 GB, Intern hukommelsestype: DDR4. Total installeret opbevaringskapacitet: 48 TB, Installeret lagerdisktype: HDD. Operativsystem installeret: DiskStation Manager


Mere information

  • Flexible large-scale storage for small and medium-sized businesses

    Private data center on your desk
    The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.

    Desktop-sized powerhouse
    Over 3,100/2,600 MB/s seq. read/write,1 built-in 10GbE, and up to 144 TB raw storage2 before expansion.

    Flexible configuration
    Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.3

    Versatile applications
    Back up 300 endpoints, manage 75 IP cameras,4 or safely sync and share files between devices and sites.

    Safe, dependable, and scalable
    Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.

    Data integrity protection

    The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.

    Efficient remote management
    Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).

    Plug-and-play expansion
    The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.

    The performance you need

    Configure the DS1823xs+ to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.

    Store, share, and protect
    Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

    Flexible file server
    Use the DS1823xs+ as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross-site syncing to empower collaboration between offices or branches.

    Private cloud
    A private cloud suite for file sharing
    Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.

    Dependable and secure network storage
    Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built-in snapshot technology and other backup options.

    A private cloud suite for file sharing
    Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
    Dependable and secure network storage
    Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built-in snapshot technology and other backup options.

    Cross-site syncing
    Secure site-to site file and folder syncing
    Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two-way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page. Learn more
    Efficient cross-site syncing through the cloud
    Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.9 Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds.

    Backup repository
    Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built-in technologies.
    Centralize your backup and recovery solution
    Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

    Perform full system backups with Synology
    Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.
    Protect folders and LUNs with snapshots
    Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.

  • Lagring
    Datalagringsdriver installeret Ja
    Total installeret opbevaringskapacitet 48 TB
    Antal installerede lagerdiske 8
    Antal understøttede lagerdiske 8
    Installeret lagerdisktype HDD
    Understøttet datalagringsdrev typer HDD & SSD
    Kapacitet af datalagringsdrev 6 TB
    Grænseflade til lagerdisk Serial ATA III
    Understøtter RAID Ja
    Understøttede lagerdrev brugerflader Serial ATA III
    Understøttede lagerdisk størrelser 2.5,3.5,M.2
    Antal M.2 (M & B) porte 2
    RAID-niveauer 0, 1, 5, 6, 10, F1, JBOD
    Online RAID-migrering Ja
    Online RAID-udvidelse Ja
    Hot-swap drevbåse Ja
    Understøttede filsystemer BTRFS, Fedt, HFS+, NTFS, exFAT, ext3, ext4
    Processor
    Processorserie Ryzen Embedded
    Processorproducent AMD
    Processormodel V1780B
    Processorfrekvens 3,35 GHz
    Processor boost frekvens 3,6 GHz
    Processorkerner 4
    Processortråde 8
    Antal understøttede processorer 1
    Hukommelse
    Intern hukommelse 8 GB
    Intern hukommelsestype DDR4
    Maksimal understøttede RAM 32 GB
    Hukommelsesstik 2
    Hukommelse form faktor SO-DIMM
    Fejlkorrigerende kode Ja
    Netværk
    Ethernet LAN Ja
    Ethernet LAN-datahastigheder 10,100,1000,10000 Mbit/s
    Ethernet LAN datahastighed understøttet (maks.) 10000 Mbit/s
    Kobber ethernet kabelteknologi 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
    iSCSI-understøttelse Ja
    Wake-on-LAN klar Ja
    Understøttede netværksprotokoller SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
    Link aggregering Ja
    Porte & Grænseflader
    Ethernet LAN-porte (RJ-45) 4
    USB-port Ja
    Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3
    Antal eSATA-porte 2
    Samtidige forbindelser 2000
    PCI Ekspres x8 (Gen 3.x) slots 1
    Design
    Kabinettype Tower
    Kølingstype Aktiv
    Produktfarve Sort
    Antal blæsere 2 blæser(e)
    Ventilator diameter 12 cm
    Drevlåsning Ja
    LED-indikatorer Ja
    Indbygget skærm Ingen
    Slot til kabellås Ja
    Kabellåseslids type Kensington
    Indbyggede højttaler(e) Ingen
    Præstation
    Type NAS
    Enhedsklasse Små & mellemstore virksomheder
    Backup funktion Ja
    Backup detaljer Cloud, iSCSI LUN
    Flersproget support Ja
    Antal brugere 16000 bruger(e)
    Støjniveau 23,6 dB
    Indbygget kortlæser Ingen
    Snapshot Ja
    Administrationsprotokoller SNMP
    Sikkerhedsalgoritmer AES, HTTPS, SSH, SSL/TLS
    Adgangskontrolliste (ACL) Ja
    Knap til nulstilling Ja
    Tænd-/slukkontakt Ja
    Indbygget FTP-server Ja
    Understøttet browser Chrome, Firefox, Edge, Safari
    System logfil Ja
    Varm reservedel Ja
    Software
    Operativsystem installeret DiskStation Manager
    Version af operativsystem 7,1,1
    Understøttede operativsystemer til servere Windows Server 2019
    Strømstyring
    Placering af strømforsyning Indbygget
    Strømforsyningens kapacitet (PCU) 250 W
    Antal strømforsyninger 1
    Redundant strømforsyning Ingen
    Strømforbrug (typisk) 87,93 W
    Strømforbrug (HDD standby) 28,37 W
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50/60 Hz
    Vægt & størrelser
    Bredde 343 mm
    Dybde 243 mm
    Højde 166 mm
    Emballage indhold
    Kabler inkluderet Vekselstrøm, LAN (RJ-45)
    Antal strømkabler 1
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 95%
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
    Andre funktioner
    Compliance-certifikater BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, VCCI
