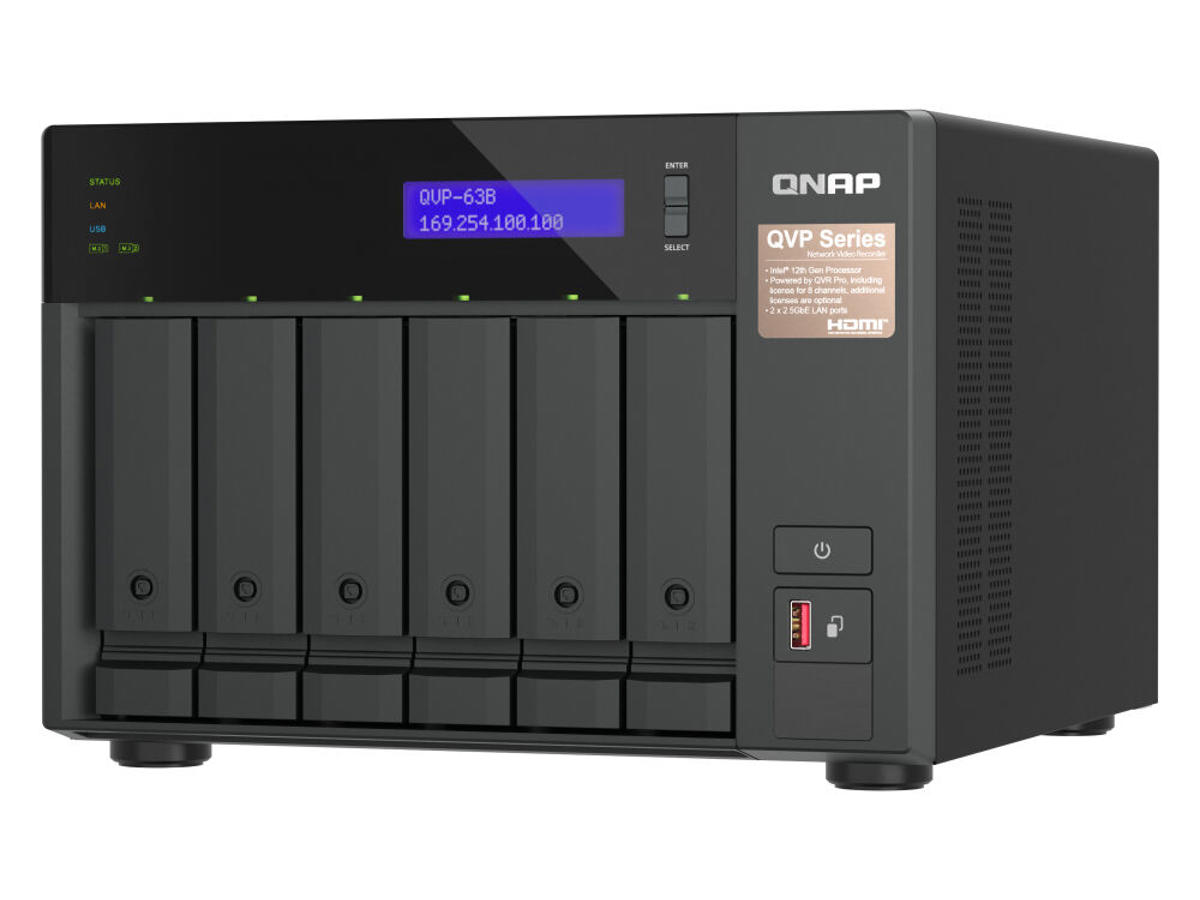

The QVP-63B QVR Pro is a tower-based network surveillance server with an Intel® Core™ multi-core processor that supports eight free IP camera channels and up to thirty-six IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-63B fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.
Support ONVIF cameras
Supports thousands of cameras from over 190 brands and ONVIF standards.
Surveillance management
Monitor and manage cameras from Windows®, Mac® and mobile devices.
Storage scalability
Add storage space to the QVP-63B by using QNAP expansion units.
QVP-63B vs. other NAS-based surveillance systems. What’s the difference?
In a conventional NAS-based surveillance system, surveillance is just one of many applications available to users. As all these applications need to share NAS system resources and storage space, surveillance performance could be impacted. The QVP-63B QVR Pro Appliance overcomes this by providing dedicated storage space and reserving full system resources for surveillance, delivering the utmost performance to fulfill professional surveillance system requirements. The QVP-63B also comes with built-in camera channel licenses and essential applications to enable local installation without requiring an internet connection. Simply install the hard drives and power up the QVP-63B to start the installation process.
High-capacity video surveillance storage solution
QVP-63B is a professional network surveillance server, compatible with 6,000+ IP cameras of 190+ brands and thousands of ONVIF network cameras.
Comprehensive camera support and management
The QVP-63B supports thousands of camera models from over 190+ brands with a variety of image formats (including cameras that use ONVIF and RTSP/ HTTP streaming). Even USB webcams are supported, allowing home and budget-conscious users to quickly build surveillance solutions tailored to their environment while providing convenient camera management.
Motion detection using budget-friendly USB webcams
Standard surveillance systems normally only support event recording and notification functions for expensive cameras with integrated motion detection. The QVP-63B provides motion detection even for entry-level cameras and USB webcams. As long as your camera can stream its footage to the QVR Pro appliance (e.g. through RTSP protocol) it supports motion detection, allowing you to build a budget-friendly, motion-detecting surveillance system.
QVR Pro Client
The QVR Pro Client software can be installed on Windows® and Mac® devices, allowing you to monitor from different platforms and flexibly switch from live view or playback mode to take full control over monitored areas.
Live view and playback
Monitor the live view of multiple channels and play recordings on a single interface. You can also view recordings at a specific time by clicking the timeline or by defining a time range.
Region of Interest
The Region of Interest (ROI) feature allows for viewing multiple regional images from the same camera in live view and playback mode. You can define and enlarge multiple areas to watch the area more closely.
Qdewarp Technology
The innovative Qdewarp enables users to view standard fisheye camera recordings in proportional ratios and sizes without affecting original recordings. The distorted parts on the edges can be turned into a clear panoramic view.
Multiple Notification Methods
The event notification provides multiple ways of being informed of emerging events, including flashing red borders of channels, alert buzzers, and the motion icon on the e-map.
Easy remote monitoring with the QVR Pro Client mobile app
The QVR Pro Client mobile app allows you to remotely monitor multiple channels simultaneously. If your network connection is slow or metered/capped, you can choose the low-bandwidth mode to view a bandwidth-optimized stream without affecting the quality of recordings. In addition, you can remotely set the camera’s preset point or control the PTZ cameras within the app
QVR Center
QVR Pro control center
Centrally manage multiple QVR Pro servers installed in different areas. You can also centrally monitor live feeds, play back recordings and receive event notifications from multiple QVR Pro servers, helping you reduce response times to events.
QVR Guard
High-availability failover management
Protect QVR Pro from system failure to ensure uninterruptible surveillance recordings. If your QVR Pro fails or crashes, QVR Guard automatically takes over recording tasks, providing dependable redundancy for your surveillance system.
QVR Face
Smart facial recognition and analytics
Obtain real-time video analytics from connected cameras and use them to set profiles, groups, and event notifications for instant facial recognition. This is ideal for smart retail, door access management, and VIP welcoming systems.
Lagring | |
Datalagringsdriver installeret | Ingen |
Antal understøttede lagerdiske | 6 |
Installeret lagerdisktype | Ingen |
Understøttet datalagringsdrev typer | HDD & SSD |
Understøtter RAID | Ja |
Understøttede lagerdrev brugerflader | M.2, Serial ATA II, Serial ATA III |
Understøttede lagerdisk størrelser | 2.5,3.5" |
Antal M.2 (M & B) porte | 2 |
RAID-niveauer | 1, 5, 6, 10, JBOD |
Online RAID-migrering | Ja |
Online RAID-udvidelse | Ja |
Hot-swap drevbåse | Ja |
Understøttede filsystemer | ext4 |
Processor | |
Processorserie | Intel® Core™ i3 |
Processorproducent | Intel |
Processorkerner | 4 |
Processortråde | 8 |
Bus type | DMI3 |
Konfigurerbar TDP-down frekvens | 2,4 GHz |
CPU-konfiguration (maks.) | 1 |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4 |
Maksimal understøttede RAM | 32 GB |
Hukommelsesstik | 2 |
Hukommelse form faktor | SO-DIMM |
Flashhukommelse | 5000 MB |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 1000 Mbit/s |
DHCP-server | Ja |
Wake-on-LAN klar | Ja |
Understøttede netværksprotokoller | HTTP, HTTPS, TCP/IP, UDP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
USB-port | Ja |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 1 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
Antal HDMI-porte | 1 |
HDMI-version | 2.0 |
Lyd in/out | Ja |
PCU Ekspres x4 (Gen 3.x) slots | 1 |
Design | |
Kabinettype | Tower |
Kølingstype | Aktiv |
Produktfarve | Sort |
Antal blæsere | 4 blæser(e) |
Ventilator diameter | 9,2 cm |
Blæser 2, diameter | 6 cm |
LED-indikatorer | HDD, LAN, Status, USB |
Indbygget skærm | Ja |
Skærmtype | LCD |
Indbyggede højttaler(e) | Ja |
Antal indbyggede højttalere | 1 |
Præstation | |
Type | NAS |
Enhedsklasse | Små & mellemstore virksomheder |
Backup funktion | Ja |
Backup detaljer | Cloud |
Lydalarm | Ja |
Støjniveau | 23,8 dB |
Webbaseret administration | Ja |
Sikkerhedsalgoritmer | HTTPS, SSH |
Knap til nulstilling | Ja |
Tænd-/slukkontakt | Ja |
System logfil | Ja |
Varm reservedel | Ja |
Understøtter S.M.A.R.T. | Ja |
USB kopifunktion | Ja |
Strømstyring | |
Placering af strømforsyning | Indbygget |
Strømforsyningens kapacitet (PCU) | 250 W |
Antal strømforsyninger | 1 |
Strømforbrug (typisk) | 45,6 W |
Strømforbrug (dvale) | 26,52 W |
Vekselstrømsindgangsspænding | 100-240 V |
Vægt & størrelser | |
Bredde | 264,3 mm |
Dybde | 280,8 mm |
Højde | 188,2 mm |
Vægt | 6,32 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, LAN (RJ-45) |
Antal strømkabler | 1 |
Antal skruer | 56 |
Processor særlige funktioner | |
Indlejret tilgængelige muligheder | Ja |
Enhanced Intel SpeedStep Teknologi | Ja |
Udfør deaktivering af bit | Ja |
Idle status | Ja |
Intel® 64 | Ja |
Intel® klar video teknologi | Ja |
Intel® Enhanced Halt State | Ja |
Intel® Identity Protection Technology version | 1,00 |
Intel® Secure Key Technology version | 1,00 |
Intel® Stabil Billede Platformsprogram (SIPP) | Ingen |
Intel® Trusted Execution Teknologi | Ingen |
Intel® TSX-NI | Ingen |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
