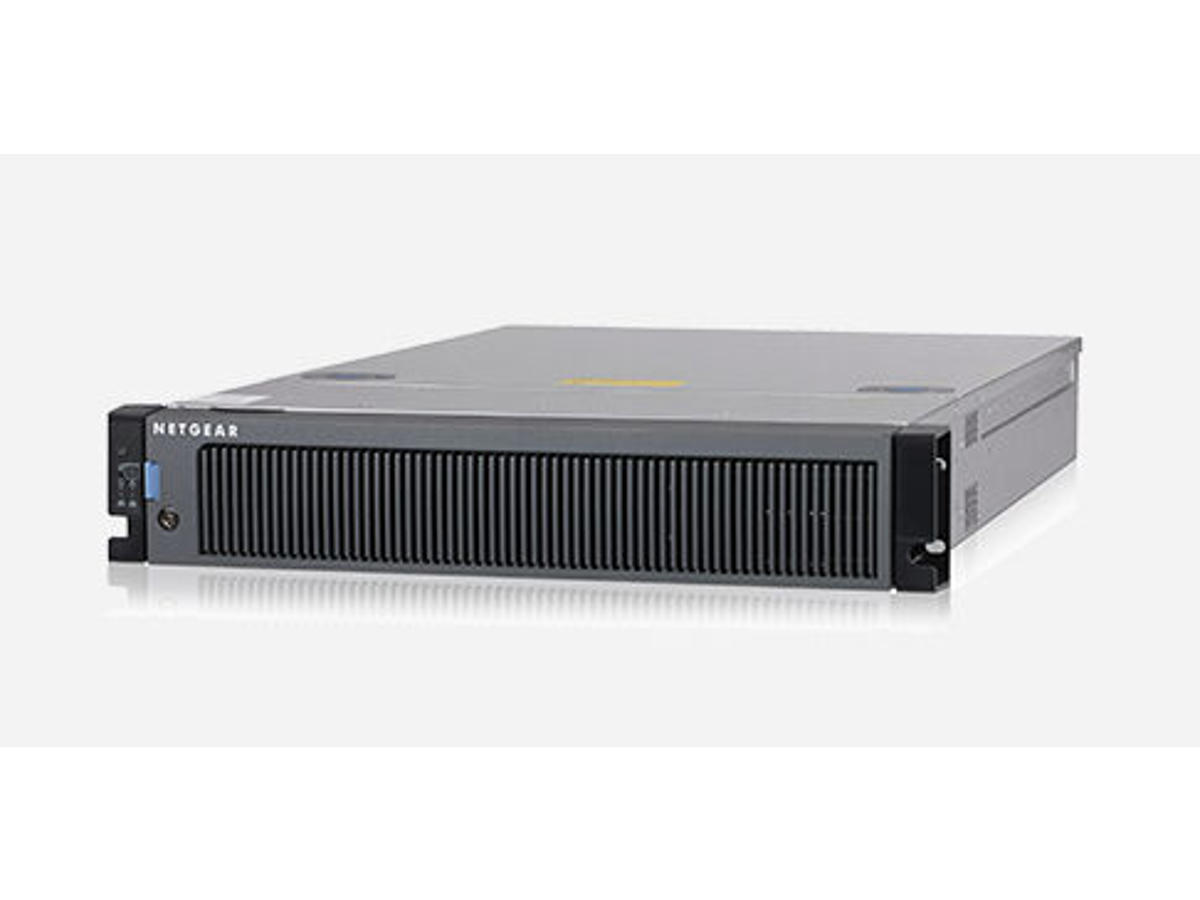

High performance 2U Rackmount NAS for backup, file-serving, collaboration and virtualization environments.
Best Data Protection for SMB
ReadyNAS with its 5 levels of data protection protects your data against human error, catastrophic events and silent data corruption. 5 years warranty and next business day hardware replacement guarantee worry-free IT. And "ReadyCLOUD" private cloud provides file sharing and sync without boundaries.
Ultra-High Performance Network Storage for SMBs
Get the most storage bang for your IT buck. ReadyNAS packs industry leading innovation and unmatched performance into top-end storage. Unlimited snapshots. Thin provisioning. Replication for disaster recovery. Real-time anti-virus and encryption. In short, ReadyNAS lets you do more with your business data than you ever thought you could afford.
5 Layers of File Protection
- Automatic RAID protects against disk failure
- Exclusive snapshot technology for point in time file recovery
- Real-time anti-virus software protects against viruses and malware
- Bit rot protection defends against media degradation
- Free cloud backup for your most important files
Easily Move Data Offsite
Whether a business wants to mirror information between two data high-powered data centers or a school district is looking to consolidate individual school data to a central office, replication technology is the key. ReadyNAS Replicate is a powerful and easy-to-use disaster recovery solution designed for business of any size.
Cloud Storage for the Office
Accessing data anytime, anywhere and from any connected device is fast becoming the standard in modern computing. Unfortunately, there are serious privacy risks associated with storing valuable business data on public cloud servers. With ReadyNAS and the ReadyCLOUD access platform, creating a safe and inexpensive private cloud for your business is now a reality.
Lagring | |
Datalagringsdriver installeret | Ja |
Total installeret opbevaringskapacitet | 48 TB |
Antal installerede lagerdiske | 12 |
Antal understøttede lagerdiske | 12 |
Understøttet datalagringsdrev typer | HDD & SSD |
Kapacitet af datalagringsdrev | 4 TB |
Understøtter RAID | Ja |
Understøttede lagerdisk størrelser | 2.5,3.5" |
Maksimalt understøttet lagerkapacitet | 120 TB |
RAID-niveauer | 0, 1, 5, 6, 10, 50, 60 |
Hot-swap drevbåse | Ja |
Understøttede filsystemer | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
Dårlig blok scanning | Ja |
Processor | |
Processorserie | Intel® Xeon® E3 v5, Intel Xeon E3-1200 v5 |
Processorproducent | Intel |
Processormodel | E3-1225V5 |
Processorfrekvens | 3,3 GHz |
Processor boost frekvens | 3,7 GHz |
Processorkerner | 4 |
Processortråde | 4 |
Processor-cache | 8 MB |
Bus type | DMI3 |
CPU-konfiguration (maks.) | 1 |
PCI Express-konfigurationer | 1x16, 1x8+2x4, 2x8 |
PCI Express slots version | 3.0 |
Processor cache type | Smart cache |
Processor kodenavn | Skylake |
Processor litografi | 14 nm |
Processor driftstilstande | 64-bit |
Processor-pakke størrelse | 37.5 x 37.5 mm |
Processor sokkel | LGA 1151 (stik H4) |
Skalerbarhed | 1S |
Systembus-hastighed | 8 GT/s |
Thermal Design Power (TDP) | 80 W |
On-board grafikkort, model | Intel® HD Graphics P530 |
Maksimal intern hukommelse understøttet af processor | 64 GB |
Hukommelsesbåndbredde understøttet af processor (maks.) | 34,1 GB/sek. |
Konfliktfri processor | Ja |
Hukommelse | |
Intern hukommelse | 8 GB |
Intern hukommelsestype | DDR4 |
Maksimal understøttede RAM | 64 GB |
Flashhukommelse | 256 MB |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 1000 Mbit/s |
DHCP-klient | Ja |
Jumbo Frames support | Ja |
iSCSI-understøttelse | Ja |
Understøttede netværksprotokoller | TCP/IP, IPv4, IPv6 |
Link aggregering | Ja |
Balance system | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 4 |
USB-port | Ja |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
Grafik | |
Indbygget grafikadapter basefrekvens | 400 MHz |
Indbygget grafikadapter dynamisk frekvens (maks.) | 1150 MHz |
Indbygget grafikadapter DirectX-version | 12.0 |
Indbygget grafikadapter OpenGL-version | 4.4 |
Indbygget grafikadapter-ID | 0x191D |
Maksimalt indbygget grafikadapterhukommelse | 1,7 GB |
Antal understøttede skærme (indbygget grafik) | 3 |
Design | |
Kabinettype | Stativ (2U) |
Kølingstype | Aktiv |
Produktfarve | Sort |
Antal blæsere | 3 blæser(e) |
Ventilator diameter | 8 cm |
LED-indikatorer | LAN, Strøm, System |
Præstation | |
Type | NAS |
Enhedsklasse | Små & mellemstore virksomheder |
Backup funktion | Ja |
Backup detaljer | Cloud, USB drev, iSCSI LUN |
Antal brugere | 8192 bruger(e) |
Støjniveau | 49 dB |
Snapshot | Ja |
Webbaseret administration | Ja |
Sikkerhedsalgoritmer | 256-bit AES, HTTPS, SSH, SSL/TLS |
Adgangskontrolliste (ACL) | Ja |
Indbygget BitTorrent klient | Ja |
Indbygget UPnP™ AV -medieserver | Ja |
Indbygget iTunes server | Ja |
Indbygget FTP-server | Ja |
Understøttet browser | Microsoft Internet Explorer 9+, Microsoft Edge, Mozilla Firefox 14+, Google Chrome 50+, Apple Safari 5+ |
Netværkstidsprotokol (NTP) klient | Ja |
System logfil | Ja |
Varm reservedel | Ja |
Understøtter S.M.A.R.T. | Ja |
Filmappe | 1024 |
Fjernbetjent | Ja |
Software | |
Operativsystem installeret | ReadyNAS OS |
Version af operativsystem | 6 |
Understøttede Windows-operativsystemer | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | Ja |
Understøttede operativsystemer til servere | Windows Server 2008 R2, Windows Server 2012 |
Andre understøttede operativsystemer | Android, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC, Solaris 8, Solaris 9, Solaris 9 SPARC, iOS |
Strømstyring | |
Strømforsyningens kapacitet (PCU) | 550 W |
Antal strømforsyninger | 2 |
Strømforbrug (maks.) | 210 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Vægt & størrelser | |
Bredde | 445 mm |
Dybde | 707 mm |
Højde | 88 mm |
Processor særlige funktioner | |
Indlejret tilgængelige muligheder | Ja |
Enhanced Intel SpeedStep Teknologi | Ja |
Udfør deaktivering af bit | Ja |
Grafisk og IMC litografi | 14 nm |
Idle status | Ja |
Intel® 64 | Ja |
Intel® klar video teknologi | Ja |
Intel® Enhanced Halt State | Ja |
Intel® Secure Key Technology version | 1,00 |
Intel® Trusted Execution Teknologi | Ja |
Intel® TSX-NI | Ja |
Intel® TSX-NI-version | 1,00 |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Clear Video HD Teknologi (Intel® CVT HD) | Ja |
Intel® Clear Video Teknologi til MID (Intel® CVT for MID) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ingen |
Intel® Insider™ | Ja |
Intel® InTru™ 3D Teknologi | Ja |
Intel® OS Guard | Ja |
Intel® Quick Sync Video Teknologi | Ja |
Intel® Sikker Nøgle | Ja |
Intel® Smart Cache | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® Wireless Display (Intel® WiDi) | Ja |
Maksimalt antal PCI Express-kanaler | 16 |
Termiske overvågningsteknologier | Ja |
Hukommelsestyper understøttet af processor | DDR3L-SDRAM, DDR4-SDRAM |
Hukommelsesspænding understøttet af processor | 1,35 V |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Andre funktioner | |
DLNA-certificeret (Digital Living Network Alliance) | Ja |
Compliance-certifikater | RoHS |
Certificering | FCC Class A, CE Class A, VCCI Class A |
Processor ARK ID | 88168 |
