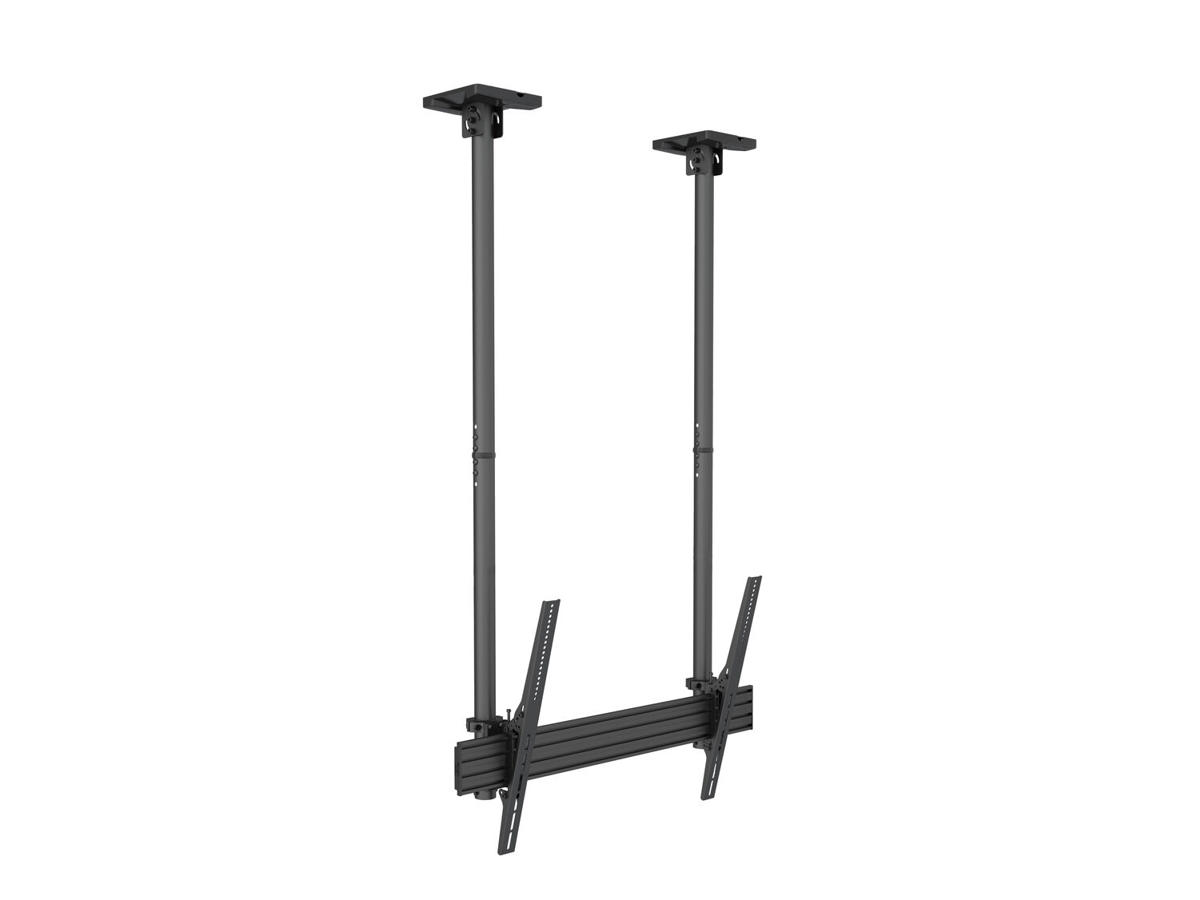

Multibrackets Pro Series M Ceiling Mount Pro MBC1USD is our innovative - ready to be installed Single-Display Super Duty Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1USD is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Montering | |
Maksimal vægtkapacitet | 135 kg |
Maksimal skærmstørrelse kompatibilitet | 2,54 m (100") |
Monteringstype | Loft |
Montering interface kompatibilitet (min.) | 100 x 100 mm |
Montering interface kompatibilitet (maks.) | 900 x 600 mm |
Minimal skærmstørrelse kompatibilitet | 101,6 cm (40") |
Panel montering grænseflade | 100 x 100,900 x 600 mm |
Antal understøttede skærme | 1 |
Ergonomisk | |
Højdejustering | Ja |
Højdejusteringstype | Vejledning |
Højdejusteringsområde | 580 - 1550 mm |
Hældningsvinkelområde | -6 - 15° |
Drejelig vinkel | 90° |
Rotationsvinkel | 8° |
Forbedret kabelstyring | Ja |
Loftsmontering rørlængde (min.) | 58 cm |
Loftsmontering rørlængde (maks.) | 155 cm |
Design | |
Produktfarve | Sort |
Husmateriale | Aluminium, Stål |
Vægt & størrelser | |
Bredde | 690 mm |
Dybde | 200 mm |
Højde | 1780 mm |
Vægt | 12 kg |
Emballeringsdata | |
Pakkebredde | 233 mm |
Pakkedybde | 831 mm |
Pakkehøjde | 188 mm |
Pakkevægt | 17 kg |
Antal pr. pakke | 1 stk |
Logistik data | |
Forsendelseskasses kassens bredde (indvendig) | 20,5 cm |
Forsendelseskassens længde (indvendig) | 102 cm |
Forsendelseskassens højde (indvendig) | 15 cm |
Forsendelseskassens bruttovægt (indvendig) | 14 kg |
Produkter pr. forsendelseskasse (indvendig) | 1 stk |
