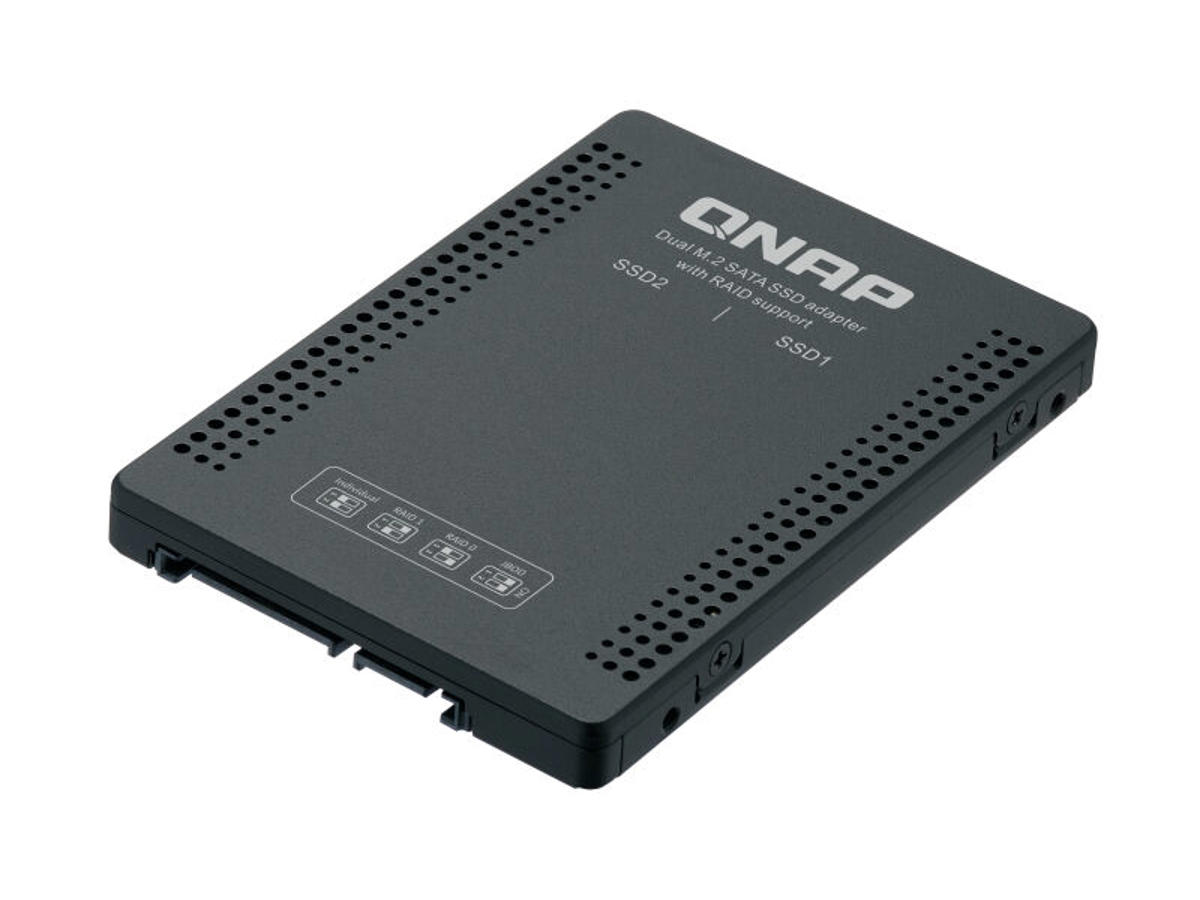

The QDA-A2MAR can accommodate two M.2 SATA SSDs within a single 2.5-inch SATA drive bay. No software driver is required for the QDA-A2MAR, and it can be installed in a PC/workstation (Windows®, Linux®) or QNAP NAS to flexibly add high-performance M.2 SATA SSDs with RAID configurations to meet various storage needs.
Supports various RAID levels
The QDA-A2MAR supports a variety of RAID configurations. Depending on your requirements, you can use the bundled metal pin as disk mode switch tool to select your ideal RAID mode: Individual, JBOD, RAID 0, or RAID 1. Windows® users can use the QNAP External RAID Manager utility to view the RAID group status and disk health information.
Install in a PC/workstation for higher performance or data protection
When using two M.2 SSDs instead of a single 2.5-inch drive in a PC/workstation (Windows® or Linux®) you can create a RAID 0 for enhanced performance, or RAID 1 to add data redundancy for greater data protection. The M.2 SSDs also help achieve maximized performance and lower latency, ideal for on-the-fly video editing and server-grade applications.
External RAID Manager for Windows users
The QNAP External RAID Manager utility allows Windows® users to view the drive status and RAID information of the QDA-A2MAR. Firmware updates for the QDA-A2MAR can also be managed with the External RAID Manager utility.
Install in QNAP NAS for efficient storage or SSD caching
The QDA-A2MAR supports hardware RAID that will not consume CPU resources to help sustain optimal NAS performance. You can install one or more QDA-A2MAR in a NAS to maximize the storage utilization of available 2.5-inch drive bays. The QDA-A2MAR can accommodate two M.2 SSDs to create an SSD volume for performance-demanding workflows or work in an efficient tiered-storage environment with Qtier. It can also boost IOPS performance when configuring SSD caching. RAID information and disk health of the QDA-A2MAR can be monitored through the QTS Storage & Snapshots Manager.
Lagring | |
Størrelse på lagerdisk | M.2 |
Understøttede lagerdrev brugerflader | M.2 |
Antal understøttede lagerdiske | 2 |
RAID-niveauer | 0, 1 |
Porte & Grænseflader | |
USB-tilslutning | Ingen |
Design | |
Produkttype | SSD kabinet |
Produktfarve | Sort |
Præstation | |
Dataoverførselshastighed | 6 Gbit/sek. |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Understøttede Linux-operativsystemer | Ja |
Vægt & størrelser | |
Bredde | 69,9 mm |
Dybde | 100,5 mm |
Højde | 9,5 mm |
Vægt | 100 g |
Emballage indhold | |
Skruer inkluderet | Ja |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
