Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

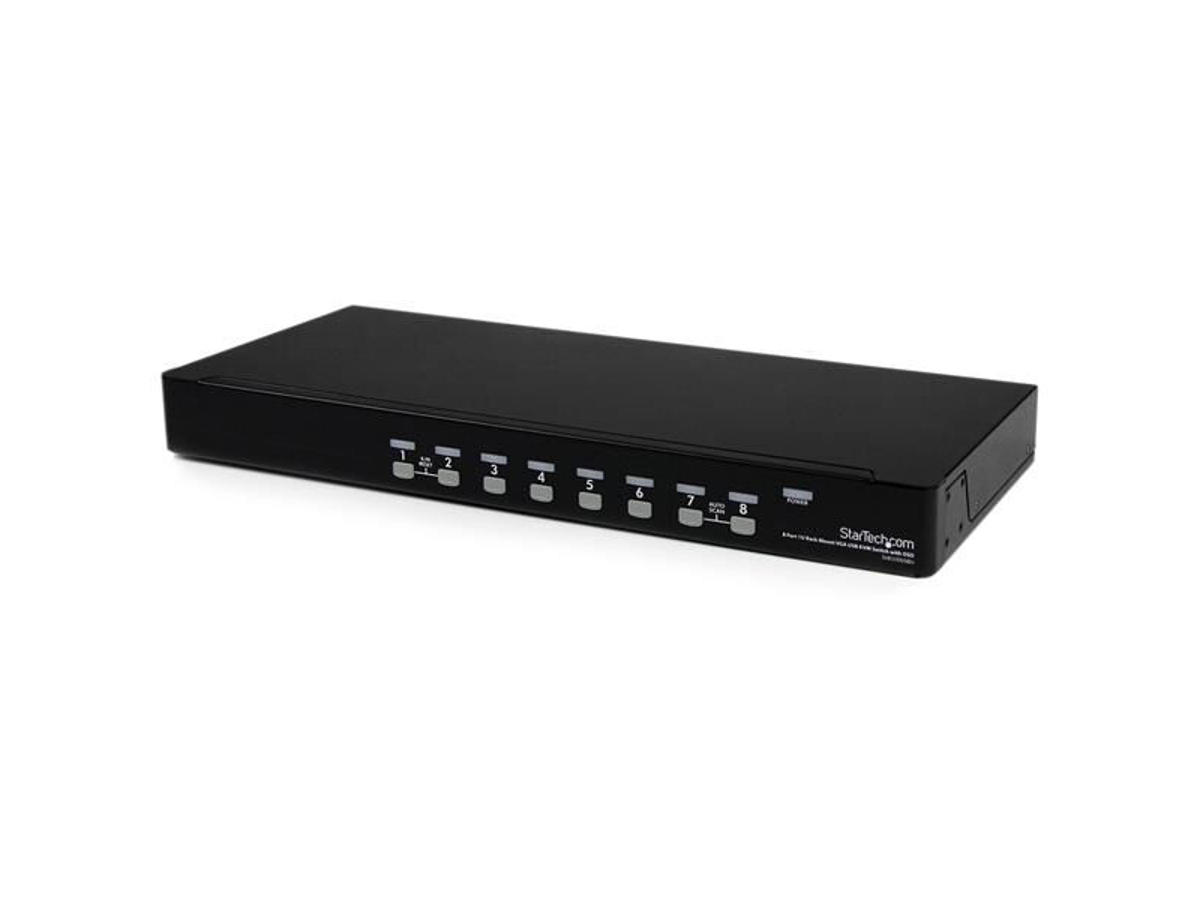

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment
Porte & Grænseflader | |
Antal kontrollerede computere | 8 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | VGA |
Konsol porte | USB A, VGA (D-Sub) |
Antal VGA-porte (D-sub) | 9 |
Antal konsol USB porte | 2 |
Lydforbindelse | Ingen |
DC-in-stik | Ja |
Præstation | |
Maksimal opløsning | 1920 x 1440 pixel |
Plug and play | Ja |
Daisy kæde | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Stål |
LED-indikatorer | Ja |
Gennemsnitstid mellem fejl (MTBF) | 150000 t |
Certificering | CE, FCC, TAA, REACH |
Display | |
Indbygget skærm | Ingen |
Skærmvisning (OSD) | Ja |
Strømstyring | |
Indgangsspænding | 100 - 240 V |
Indgangsstrøm | 0.8 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 1,5 A |
Strømstiktype | Type M |
Kompatible strømplug typer | EU, UK, US |
Bæredygtighed | |
Compliance-certifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 540 mm |
Dybde | 180 mm |
Højde | 45 mm |
Vægt | 2,9 kg |
Emballeringsdata | |
Pakkebredde | 89 mm |
Pakkedybde | 573 mm |
Pakkehøjde | 268 mm |
Pakkevægt | 3,3 kg |
Emballage indhold | |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Andre funktioner | |
Forbindelsesteknologi | Ledningsført |
Dimensioner (BxDxH) | 540 x 180 x 45 mm |
Porte, antal | 8 |
Effektkrav | 110 - 240 AC |
Understøttelse af lyd | Ingen |
IP kontrol | Ingen |
Logistik data | |
Harmoniseret systemkode (HS) | 85176200 |
