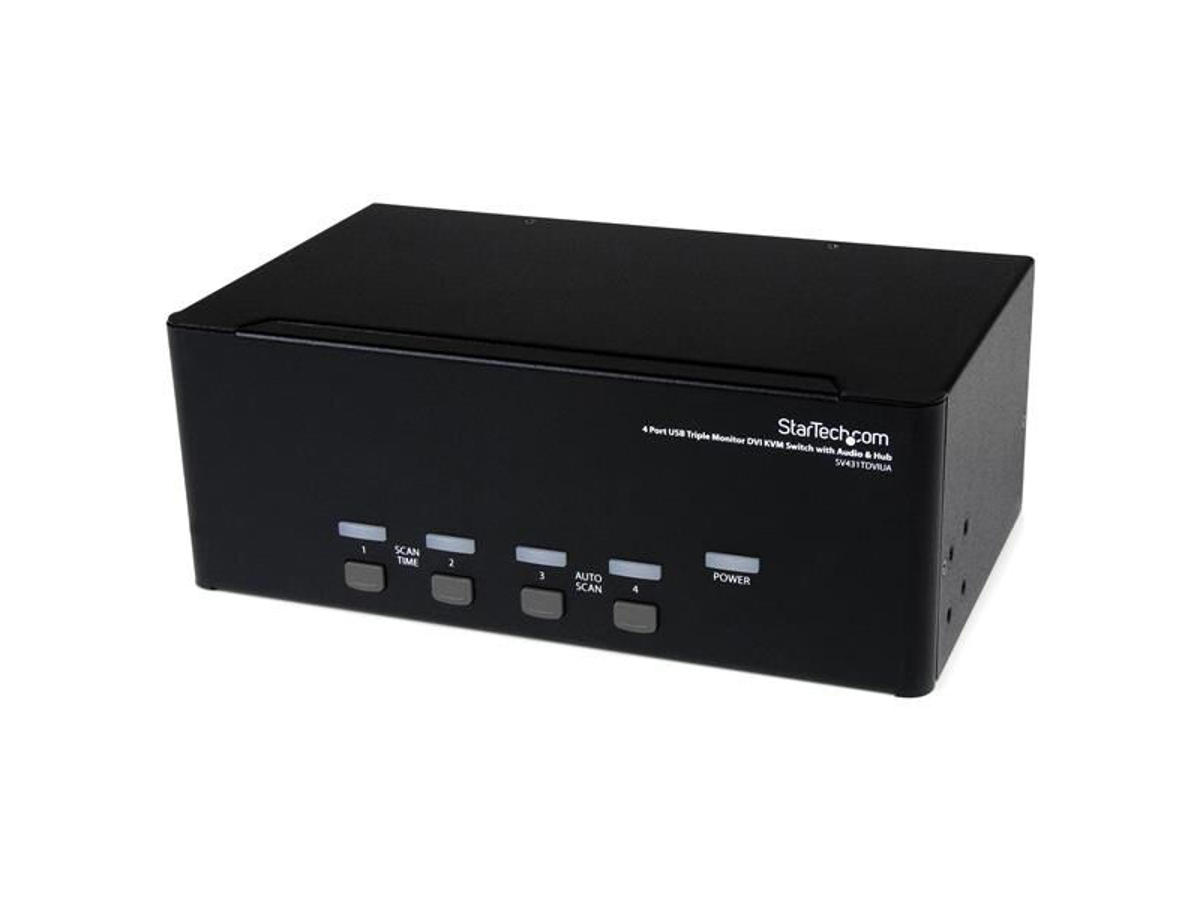

The SV431TDVIUA 4-Port Triple Monitor DVI USB KVM Switch allows 4 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple DVI KVM switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV431TDVIUA 4-Port Triple Monitor DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- By enabling control of four triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
Porte & Grænseflader | |
Antal kontrollerede computere | 4 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | DVI-I |
Konsol porte | 3,5 mm hovedtelefon, 3.5mm mic, USB A |
Antal konsol USB porte | 4 |
Lydforbindelse | Ja |
Udgange til hovedtelefoner | 4 |
Antal mikrofon-indgange | 4 |
DC-in-stik | Ja |
Præstation | |
Maksimal opløsning | 1920 x 1200 pixel |
Maksimal digital opløsning | 1920 x 1200 pixel |
Skanningsinterval | 3,8,15,30 sek./side |
HDCP | Ja |
Daisy kæde | Ingen |
Antal brugere | 1 bruger(e) |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Husmateriale | Stål |
LED-indikatorer | Ja |
Genvejstaster | Ja |
Certificering | CE, FCC, UL |
Display | |
Indbygget skærm | Ingen |
Strømstyring | |
Indgangsspænding | 110-240 V |
Indgangsstrøm | 0.8 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 1,5 A |
Ekstern strømadapter | Ja |
Strømstiktype | Type M |
Kompatible strømplug typer | EU, UK, US |
Bæredygtighed | |
Compliance-certifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 219 mm |
Dybde | 137 mm |
Højde | 81 mm |
Vægt | 1,5 kg |
Emballeringsdata | |
Pakkebredde | 272 mm |
Pakkedybde | 297 mm |
Pakkehøjde | 108 mm |
Pakkevægt | 2,2 kg |
Emballage indhold | |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176200 |
Andre funktioner | |
Understøttelse af lyd | Ja |
IP kontrol | Ingen |
