Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor

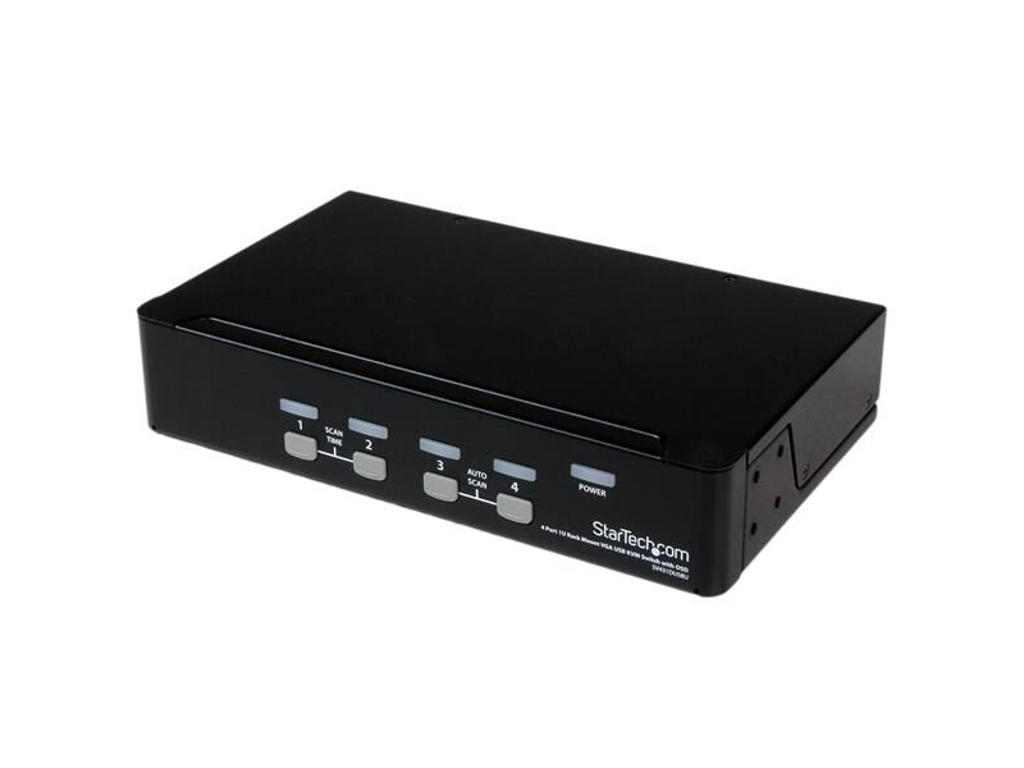

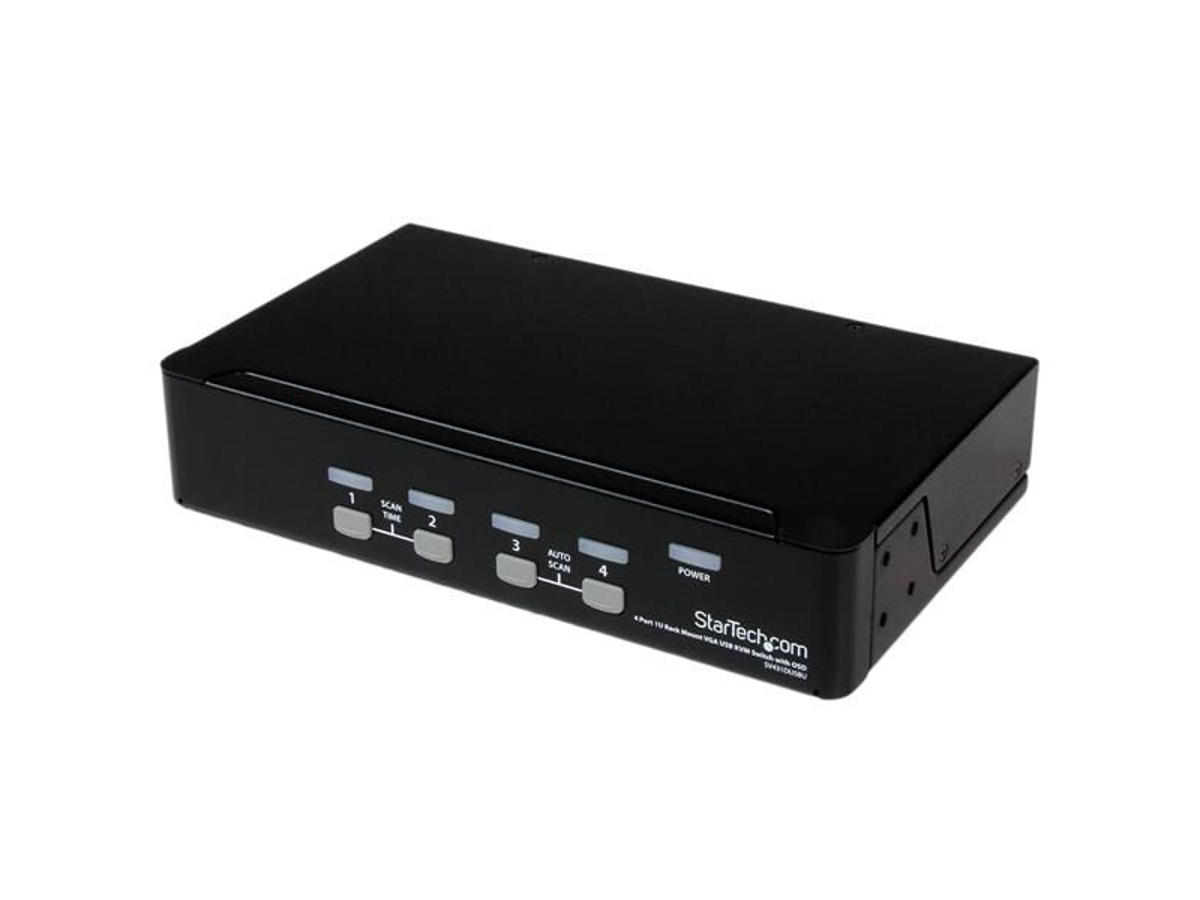

The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Porte & Grænseflader | |
Antal kontrollerede computere | 4 |
Tastatur porttype | Ingen |
Mus porttype | Ingen |
Video porttype | VGA |
Konsol porte | USB A, VGA (D-Sub) |
Antal VGA-porte (D-sub) | 5 |
Antal konsol USB porte | 2 |
Antal USB 2.0-porte | 2 |
Lydforbindelse | Ingen |
DC-in-stik | Ja |
Præstation | |
Maksimal opløsning | 1920 x 1440 pixel |
Maksimal analog opløsning | 1920 x 1440 pixel |
Plug and play | Ja |
Daisy kæde | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Stål |
LED-indikatorer | Strøm |
Genvejstaster | Ja |
Gennemsnitstid mellem fejl (MTBF) | 143000 t |
Certificering | CE, FCC, TAA, REACH |
Display | |
Indbygget skærm | Ingen |
Skærmvisning (OSD) | Ja |
Strømstyring | |
Indgangsspænding | 110 - 240 V |
Indgangsstrøm | 0.2 A |
Udgangsspænding | 9 V |
Udgangsstrøm | 0,6 A |
Strømforbrug (typisk) | 5,4 W |
Ekstern strømadapter | Ja |
Strømstiktype | Type M |
Kompatible strømplug typer | AU, EU, UK, US |
Bæredygtighed | |
Compliance-certifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 220 mm |
Dybde | 130 mm |
Højde | 43 mm |
Vægt | 957 g |
Emballeringsdata | |
Pakkebredde | 411 mm |
Pakkedybde | 215 mm |
Pakkehøjde | 89 mm |
Pakkevægt | 1,6 kg |
Emballage indhold | |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176200 |
Andre funktioner | |
Understøttelse af lyd | Ingen |
IP kontrol | Ingen |
