Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

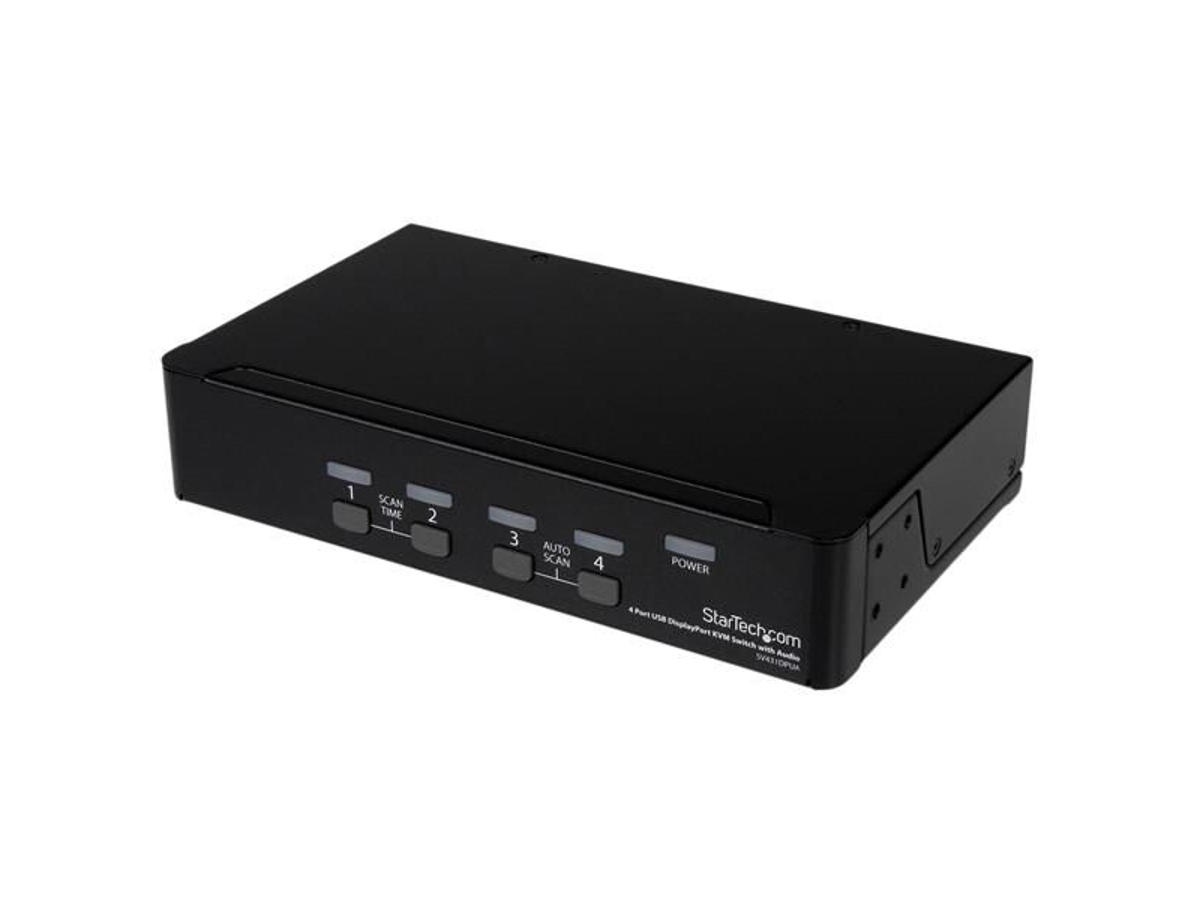

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Porte & Grænseflader | |
Antal kontrollerede computere | 4 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | DisplayPort |
Konsol porte | DisplayPort, 3,5 mm hovedtelefon, 3.5mm mic, USB A |
Antal konsol USB porte | 4 |
USB stik | Ja |
Lydforbindelse | Ja |
Udgange til hovedtelefoner | 5 |
Antal mikrofon-indgange | 5 |
DC-in-stik | Ja |
Præstation | |
Maksimal opløsning | 3840 x 2400 pixel |
Maksimal digital opløsning | 2560 x 1600 pixel |
DDC2B support | Ja |
Understøtter hot-plug | Ja |
Plug and play | Ja |
Daisy kæde | Ingen |
Antal brugere | 1 bruger(e) |
Lyd kanaler | 7.1 |
Design | |
Produktfarve | Sort |
Husmateriale | Stål |
LED-indikatorer | Ja |
Trykknap | Ja |
Genvejstaster | Ja |
Gennemsnitstid mellem fejl (MTBF) | 136000 t |
Certificering | CE, FCC, UL, TAA, REACH |
Display | |
Indbygget skærm | Ingen |
Skærmvisning (OSD) | Ingen |
Strømstyring | |
Indgangsspænding | 100 - 240 V |
Indgangsstrøm | 0.8 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 1,5 A |
Ekstern strømadapter | Ja |
Strømstiktype | Type M |
Kompatible strømplug typer | AU, EU, UK, US |
Bæredygtighed | |
Compliance-certifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 221 mm |
Dybde | 130,6 mm |
Højde | 44 mm |
Vægt | 1 kg |
Emballeringsdata | |
Pakkebredde | 214 mm |
Pakkedybde | 411 mm |
Pakkehøjde | 87 mm |
Pakkevægt | 1,6 kg |
Emballage indhold | |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176200 |
Andre funktioner | |
Understøttelse af lyd | Ja |
IP kontrol | Ingen |
