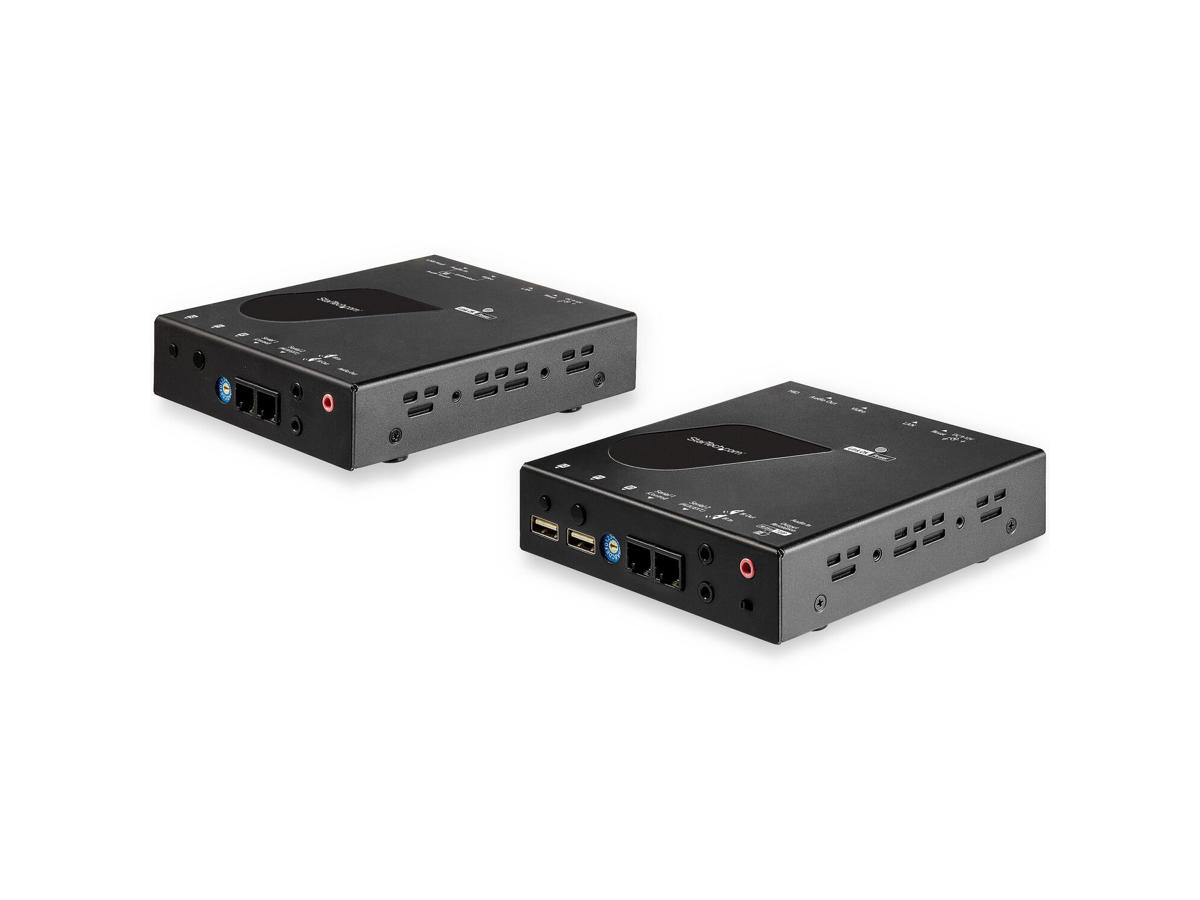

StarTech.com SV565HDIP KVM Switch Sort
Varenummer: SV565HDIP
.
DKK 10.206,25 / Stk
DKK 8.165,00 ekskl. moms
  •
StarTech.com SV565HDIP. Tastatur porttype: USB, Mus porttype: USB, Video porttype: HDMI. HD-type: 4K Ultra HD, Maksimal opløsning: 3840 x 2160 pixel, Video båndbredde: 30 Hz. Produktfarve: Sort, Husmateriale: Stål, Gennemsnitstid mellem fejl (MTBF): 60000 t. Indgangsspænding: 100 - 240 V, Indgangsstrøm: 0.6 A, Udgangsspænding: 12 V. Compliance-certifikater: RoHS


Mere information

  • KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through

    This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

    Supports UHD 4K 30Hz

    The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

    Hassle-Free Installation

    With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

    The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

    Versatile Configuration Options

    The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

    For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).

    SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

    The StarTech.com Advantage

  • Porte & Grænseflader
    Tastatur porttype USB
    Mus porttype USB
    Video porttype HDMI
    Antal HDMI-porte 2
    USB stik Ja
    Antal USB 2.0 type-A hub porte 2
    Lydforbindelse Ja
    Udgange til hovedtelefoner 8
    Antal mikrofon-indgange 2
    DC-in-stik Ja
    Netværk
    Ethernet LAN-porte (RJ-45) 2
    Præstation
    HD-type 4K Ultra HD
    Maksimal opløsning 3840 x 2160 pixel
    Video båndbredde 30 Hz
    Daisy kæde Ingen
    Maksimal driftstilstand 100 m
    Chipsæt ASPEED - AST1520
    Lyd kanaler 7.1
    Design
    Produktfarve Sort
    Husmateriale Stål
    LED-indikatorer Ja
    Genvejstaster Ingen
    Gennemsnitstid mellem fejl (MTBF) 60000 t
    Certificering CE, FCC, TAA, REACH
    Display
    Indbygget skærm Ingen
    Skærmvisning (OSD) Ja
    Strømstyring
    Indgangsspænding 100 - 240 V
    Indgangsstrøm 0.6 A
    Udgangsspænding 12 V
    Udgangsstrøm 1,5 A
    Strømforbrug (typisk) 18 W
    Ekstern strømadapter Ja
    Strømstiktype Type M
    Kompatible strømplug typer AU, EU, JP, UK
    Bæredygtighed
    Compliance-certifikater RoHS
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -10 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 80%
    Vægt & størrelser
    Bredde 117 mm
    Dybde 130 mm
    Højde 28 mm
    Vægt 610 g
    Emballeringsdata
    Pakkebredde 365 mm
    Pakkedybde 195 mm
    Pakkehøjde 235 mm
    Emballage indhold
    Kabler inkluderet HDMI, LAN (RJ-45), Telefon (RJ-11), USB
    Hurtig installationsvejledning Ja
    AC-adapter inkluderet Ja
    Gummifødder Ja
    Logistik data
    Harmoniseret systemkode (HS) 85176200
    Hovedkassens bredde (udvendigt) 385 mm
    Hovedkassens længde (udvendigt) 495 mm
    Hovedkassen højde (udvendigt) 265 mm
    Produkter pr. hovedkasse (udvendigt) 6 stk
    Andre funktioner
    IP kontrol Ingen
