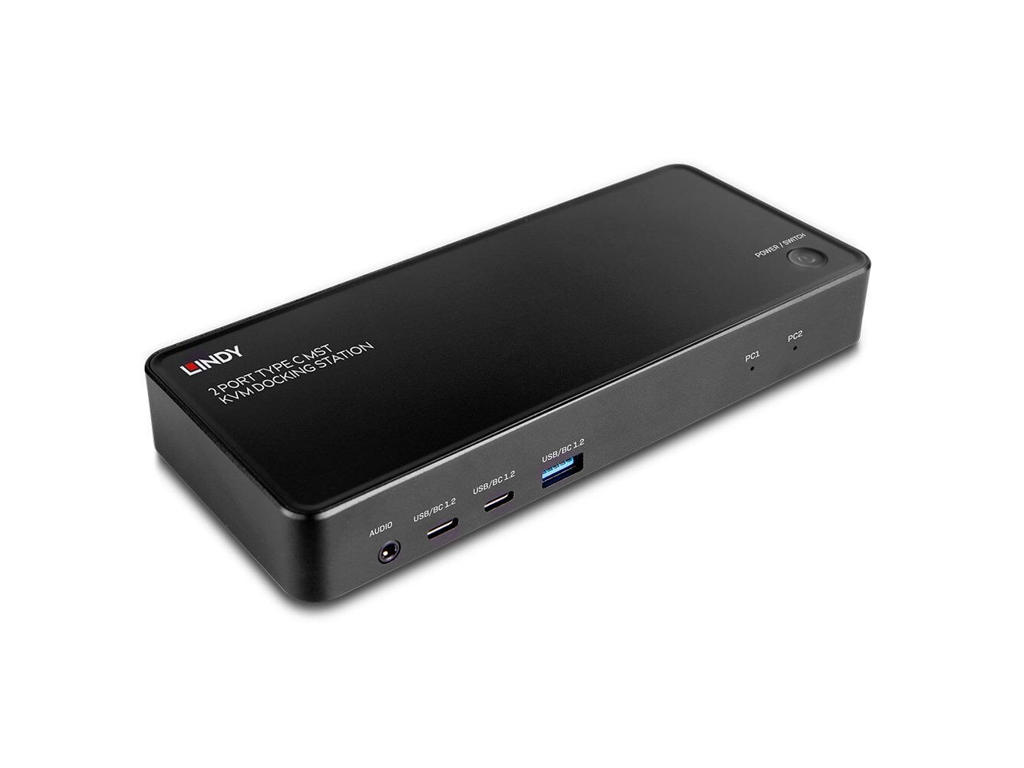

The Lindy 2 Port Type C MST KVM Docking Station is a compact and versatile solution for connecting laptops to a range of interfaces including two displays. Featuring all critical interfaces required for a modern workstation, this device combines the comfort of a Desktop Docking Station with a Type C KVM Switch; it provides two USB 3.2 Type C inputs to connect sources such as laptops, tablets or smartphones in order to share the same workstation and peripherals connected. Switching is easily possible by pushing the button on the top of the unit.
The Docking Station enables the connection of two displays via HDMI and DisplayPort outputs at resolutions of 3840x2160@60Hz using DisplayPort Alternate Mode through the USB Type C ports. It supports also MST function to manage the simultaneous connection of both monitors, one with 4K30 and one with 1920x1080@60Hz maximum resolutions.
The USB Type C and Type A ports on the front panel provide up to 5Gbps of data transfer and BC 1.2 for fast charging perfect for connecting peripherals such as a hard drive, webcam and for charging a mobile device. Both USB Type C inputs support USB Power Delivery 3.0, PC1 port up to 100W (connecting an additional Type C PD power supply to PD port) while PC2 port up to 65W (just connecting the included power supply).
It provides also a Gigabit Ethernet and a 3.5mm port to connect a Network and an Audio stereo input/output device such as headphones, speakers or microphone.
Porte & Grænseflader | |
Antal kontrollerede computere | 2 |
Video porttype | HDMI |
Konsol porte | 3,5 mm hovedtelefon, DisplayPort, HDMI, RJ–45, USB A, USB C |
Antal HDMI-porte | 1 |
HDMI-version | 2.0 |
Antal DisplayPorts | 1 |
DisplayPort-version | 1.4 |
Antal USB 2.0 type-C-porte | 2 |
Antal konsol USB porte | 6 |
Lydforbindelse | Ja |
Udgange til hovedtelefoner | 1 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Præstation | |
HD-type | 4K Ultra HD |
Maksimal opløsning | 3840 x 2160 pixel |
Video båndbredde | 60 Hz |
Dataoverførselshastighed (maks.) | 5 Gbit/sek. |
HDCP | Ja |
Design | |
Produktfarve | Sort |
Husmateriale | Aluminium, Plast |
Strømstyring | |
Indgangsspænding | 24 V |
Udgangsstrøm | 5,6 A |
Bæredygtighed | |
Compliance-certifikater | REACH, RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 85% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 85% |
Vægt & størrelser | |
Bredde | 185 mm |
Dybde | 79 mm |
Højde | 28 mm |
Vægt | 926 g |
Emballeringsdata | |
Pakkebredde | 250 mm |
Pakkedybde | 203 mm |
Pakkehøjde | 50 mm |
Pakkevægt | 1,08 kg |
Pakketype | Kasse |
Emballage indhold | |
Brugervejledning | Ja |
