Features
Hardware
- High port density – RJ-45 connectors for up to 8 ports in a 1U housing
- A dedicated USB port directly connects to a laptop for easy Console operation
- One bus for remote KVM over IP access
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Multiplatform support - Windows, Mac, Sun and Linux
- Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*
- Daisy-chain up to 15 additional units – control up to 128 computers from a single console
* With KVM Adapter Cable KA7000 series.
Management
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Local Log Event
- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 Management software
- Power Over the NET™ integration for remote power control
- Firmware upgradeable
- IPv6 capable
Ease-to-Use Interface
- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode#8482;
- Keyboard broadcast – keyboard input can be duplicated on all the attached servers
Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- 128-bit SSL encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multilanguage support
- Exit Macros support
- BIOS-level access
Package Contents

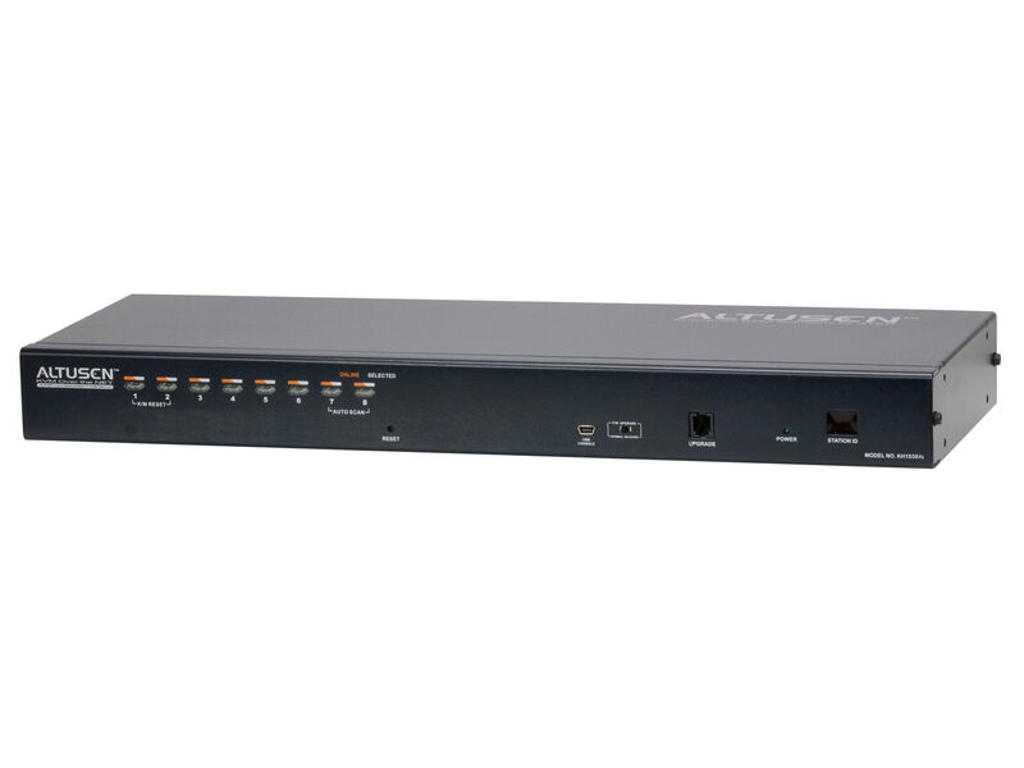

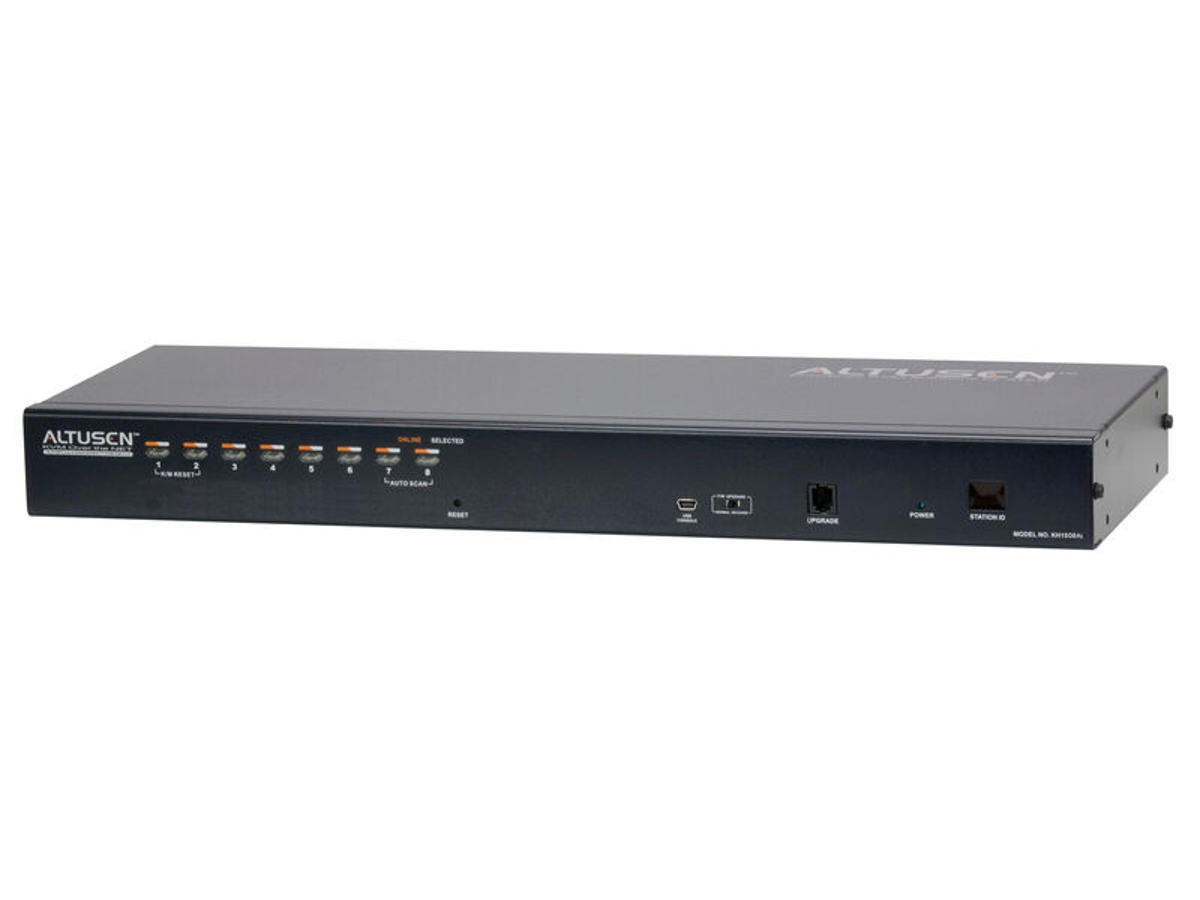

- 1x KH1508Ai Cat 5 High-Density KVM Over the NET™ Switch
- 1x Firmware Upgrade Cable
- 1x Laptop USB Console Cable
- 1x 0AD8-0C05-34EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
Porte & Grænseflader | |
Antal kontrollerede computere | 8 |
Video porttype | VGA |
Antal VGA-porte (D-sub) | 1 |
Antal USB 2.0-porte | 3 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Netværksstandarder | IEEE 802.3, IEEE 802.3u |
Sikkerhedsalgoritmer | 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS |
Præstation | |
Maksimal opløsning | 1600 x 1200 pixel |
Skanningsinterval | 255 sek./side |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Metal |
Kabellængde | 50,29 m |
LED-indikatorer | Ja |
Strømstyring | |
Strømforbrug (typisk) | 12,5 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 161 mm |
Dybde | 437 mm |
Højde | 44 mm |
Vægt | 2,8 kg |
Emballeringsdata | |
Pakkevægt | 4,08 kg |
Emballage indhold | |
Hurtig installationsvejledning | Ja |
Brugervejledning | Ja |
Andre funktioner | |
Forbindelsesteknologi | Ledningsført |
Porte, antal | 8 |
Effektkrav | 1A |
Minimum systemkrav | Pentium III 1 GHz 1024 x 768 VGA/SVGA/Multisync USB Type A 6-pin mini-DIN |
Skærmopløsningsfrekvens | 1600 x 1200 @ 60Hz 1280 x 1024 @ 75Hz |
