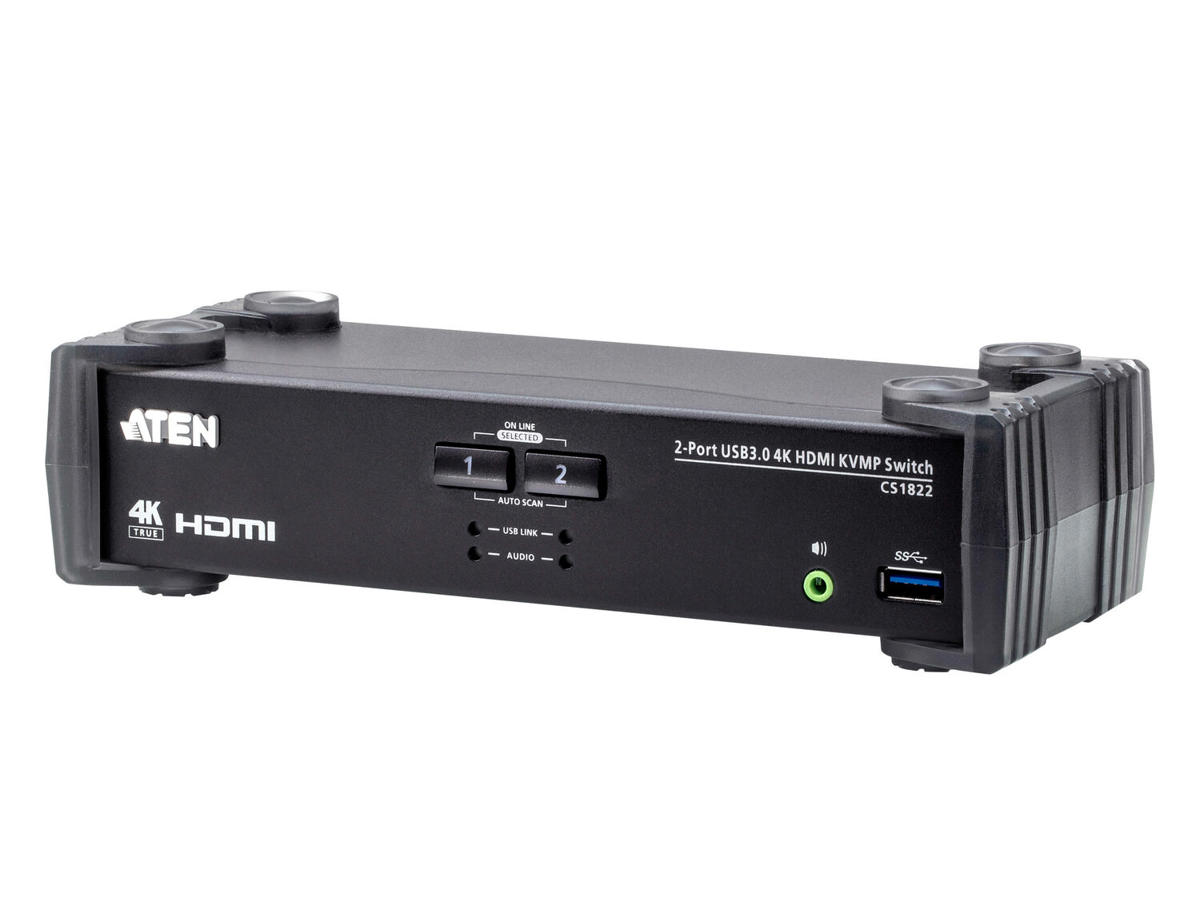

The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
Porte & Grænseflader | |
Antal kontrollerede computere | 2 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | HDMI |
Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A |
Antal HDMI-porte | 3 |
Antal USB 2.0 Type-B porte | 2 |
Antal konsol USB porte | 2 |
Antal USB 2.0 type-A hub porte | 2 |
USB-stik type | USB Type-A, USB Type-B |
Serie porttype | RS-232 |
Antal serielle porte | 1 |
Lydforbindelse | Ja |
DC-in-stik | Ja |
Præstation | |
HD-type | 4K Ultra HD |
Maksimal opløsning | 4096 x 2160 pixel |
Video båndbredde | 60 Hz |
Design | |
Produktfarve | Sort |
Husmateriale | Metal, Plast |
Trykknap | Ja |
Display | |
Indbygget skærm | Ingen |
Strømstyring | |
Strømkilde | DC |
Indgangsspænding | 5 V |
Strømforbrug (typisk) | 1,78 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 880 mm |
Dybde | 210 mm |
Højde | 555 mm |
Vægt | 740 g |
