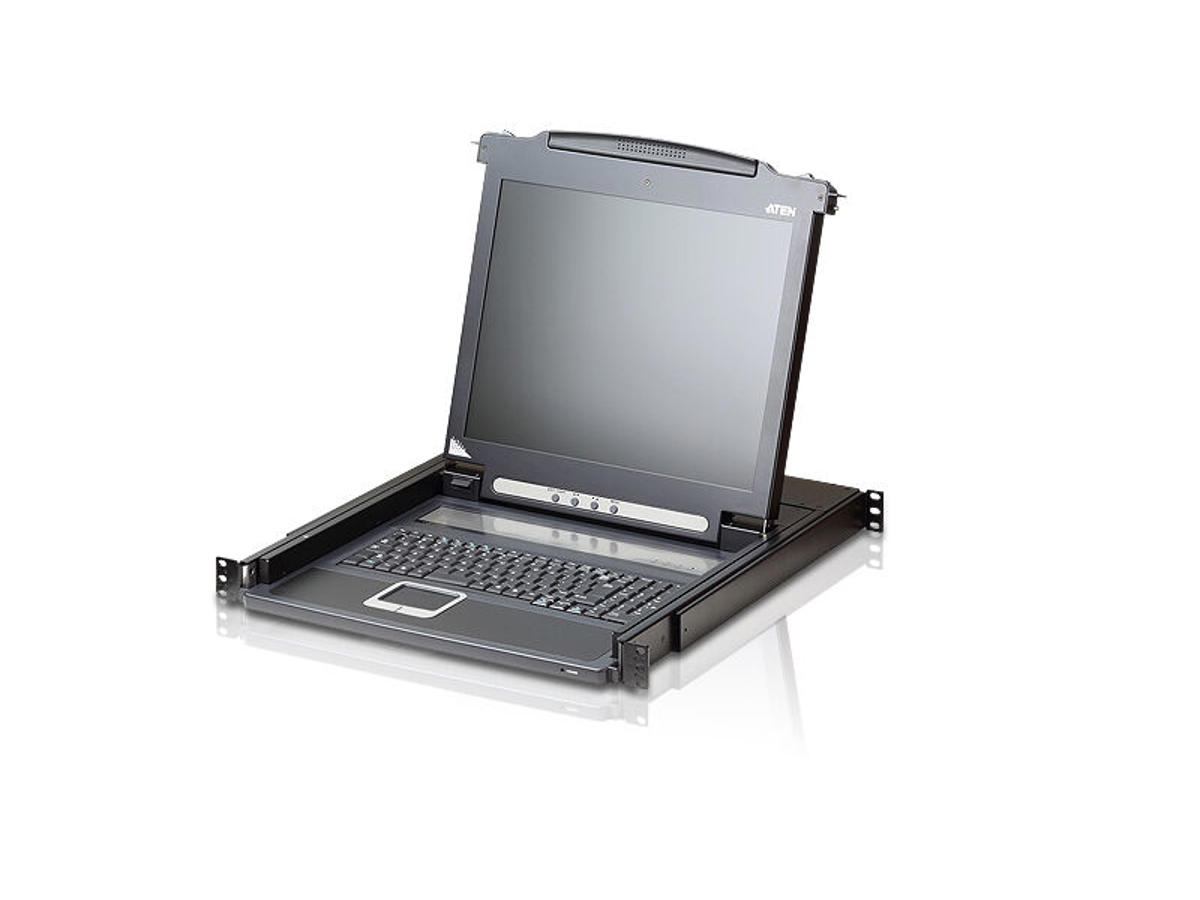

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Porte & Grænseflader | |
Antal kontrollerede computere | 1 |
Tastatur porttype | PS/2 |
Mus porttype | PS/2 |
Video porttype | VGA |
Konsol porte | VGA (D-Sub) |
Antal VGA-porte (D-sub) | 1 |
DC-in-stik | Ingen |
Præstation | |
HD-type | WUXGA |
Maksimal opløsning | 1920 x 1200 pixel |
Video båndbredde | 60 Hz |
DDC/DDC2 understøttet | Ja |
DDC2B support | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Metal, Plast |
LED-indikatorer | Ja |
Trykknap | Ja |
Display | |
Indbygget skærm | Ja |
Skærm | LCD |
Skærm diagonal | 43,2 cm (17") |
Strømstyring | |
Strømkilde | Vekselstrøm |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Indgangsstrøm | 1 A |
Strømforbrug (typisk) | 16 W |
Systemkrav | |
Understøttede Windows-operativsystemer | Ja |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | Ja |
Bæredygtighed | |
Bæredygtighedscertifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 480 mm |
Dybde | 538,3 mm |
Højde | 44 mm |
Vægt | 12 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, KVM |
Hurtig installationsvejledning | Ja |
