With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

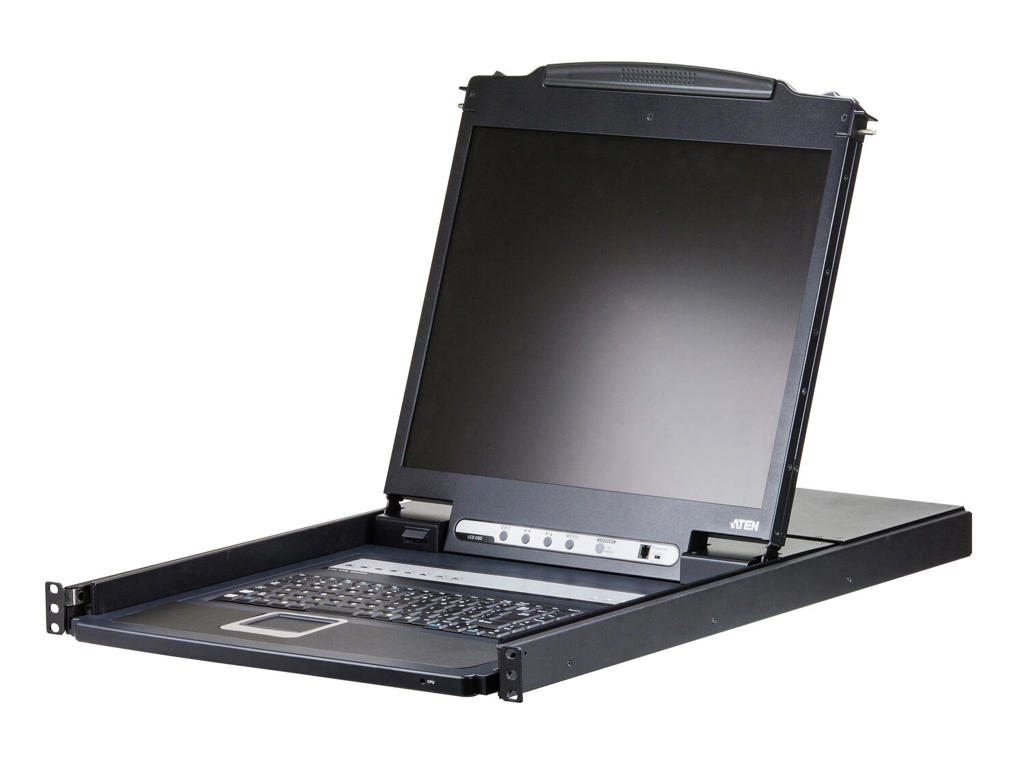

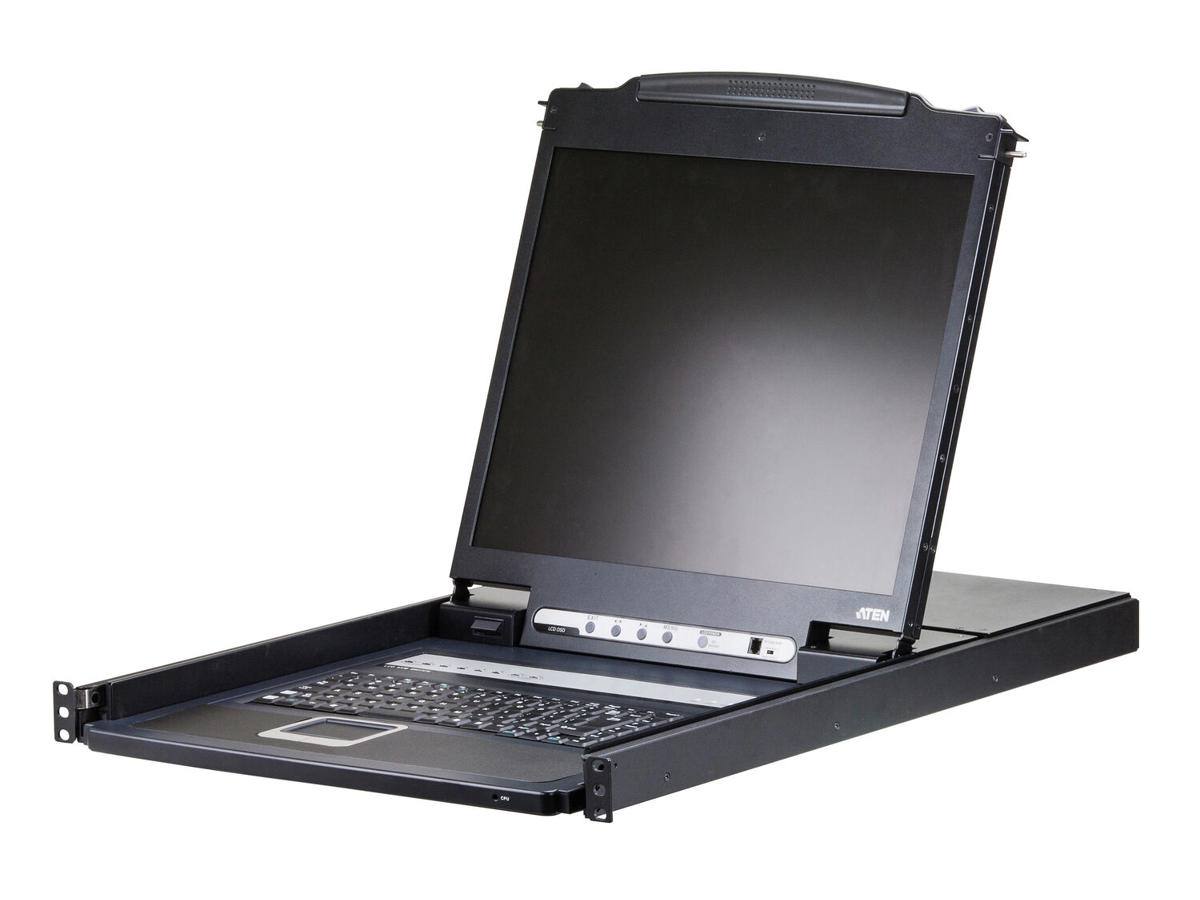

The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Porte & Grænseflader | |
Antal kontrollerede computere | 128 |
Tastatur porttype | PS/2 |
Mus porttype | USB |
Video porttype | VGA |
Konsol porte | SPHD |
Antal RJ-11-porte | 1 |
Antal AC-indgange | 1 |
Præstation | |
HD-type | WUXGA |
Maksimal opløsning | 1280 x 1024 pixel |
Maksimal analog opløsning | 1920 x 1200 pixel |
Video båndbredde | 75 Hz |
Skanningsinterval | 1,255 sek./side |
DDC2B support | Ja |
Understøtter hot-plug | Ja |
Firmware kan opgraderes | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Metal, Plast |
Cascadable | Ja |
LED-indikatorer | Ja |
Displayknap kontakt | Ja |
Trykknap | Ja |
Genvejstaster | Ja |
Display | |
Indbygget skærm | Ja |
Skærm | LCD |
Skærm diagonal | 48,3 cm (19") |
Skærmvisning (OSD) | Ja |
Strømstyring | |
Strømkilde | Vekselstrøm |
Indgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Indgangsstrøm | 1 A |
Systemkrav | |
Understøttede Windows-operativsystemer | Ja |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | Ja |
Bæredygtighed | |
Compliance-certifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 689,2 mm |
Dybde | 483 mm |
Højde | 44 mm |
Vægt | 12,6 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, KVM |
Hurtig installationsvejledning | Ja |
Brugervejledning | Ja |
Rack monteringskit | Ja |
Andre funktioner | |
Output-forbindere | 8x SPHD |
