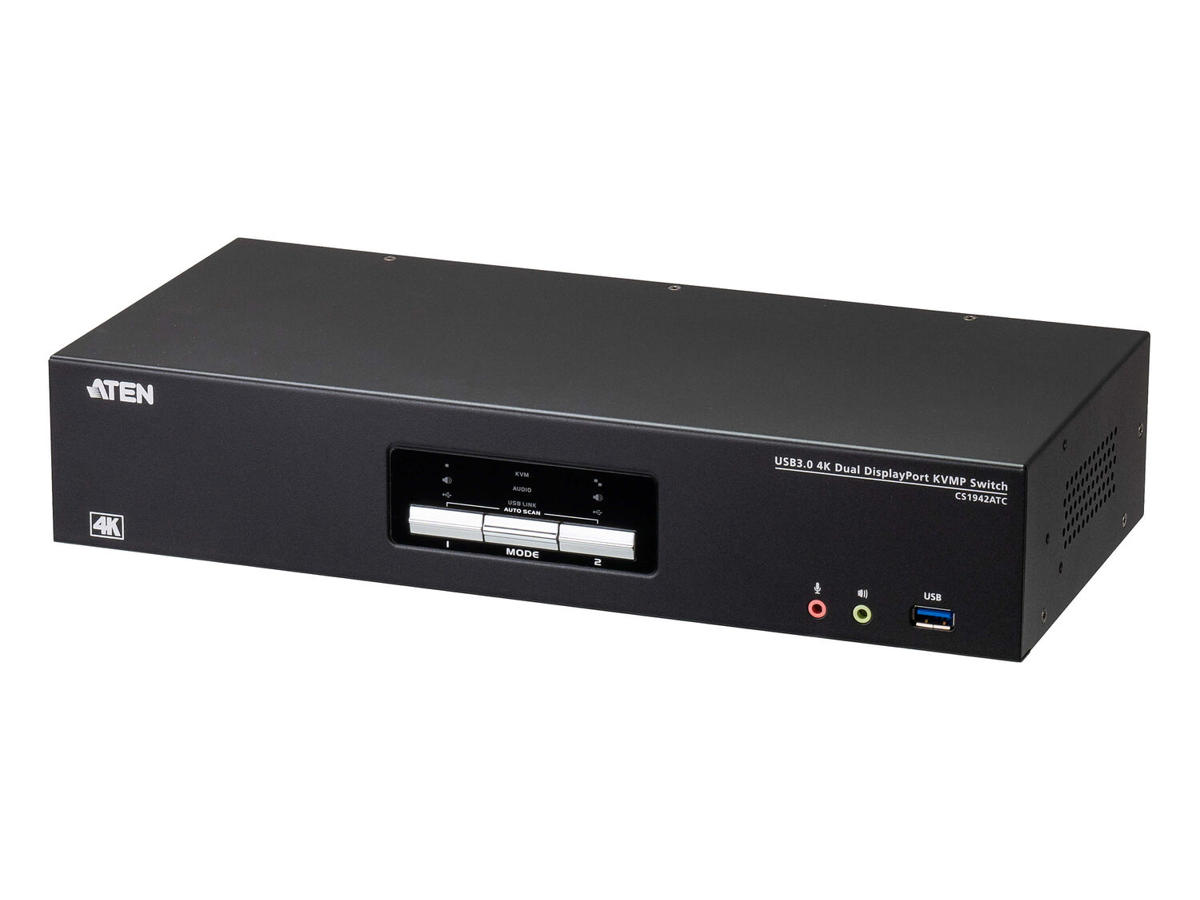

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
Porte & Grænseflader | |
Antal kontrollerede computere | 2 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | DisplayPort |
Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) |
Antal VGA-porte (D-sub) | 3 |
Antal DisplayPorts | 4 |
Antal konsol USB porte | 2 |
Antal konsol displayporte | 2 |
USB stik | Ja |
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte | 2 |
USB-stik type | Micro-USB, USB Type-A |
Lydforbindelse | Ja |
Udgange til hovedtelefoner | 2 |
Antal mikrofon-indgange | 2 |
Antal RJ-11-porte | 1 |
DC-in-stik | Ja |
Præstation | |
HD-type | 4K Ultra HD |
Maksimal opløsning | 4096 x 2160 pixel |
Video båndbredde | 60 Hz |
Firmware kan opgraderes | Ja |
Design | |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Trykknap | Ja |
Genvejstaster | Ingen |
Display | |
Indbygget skærm | Ja |
Strømstyring | |
Strømkilde | DC |
Indgangsspænding | 12 V |
Strømforbrug (typisk) | 17,8 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 20 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 161 mm |
Dybde | 335 mm |
Højde | 65,5 mm |
Vægt | 1,88 kg |
Emballeringsdata | |
Pakkebredde | 133 mm |
Pakkedybde | 499 mm |
Pakkehøjde | 324 mm |
Pakkevægt | 4,21 kg |
Emballage indhold | |
Hurtig installationsvejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 84718000 |
Oprindelsesland | Taiwan |
