Operate a USB & VGA KVM or PC over 500ft as if it were right in front of you

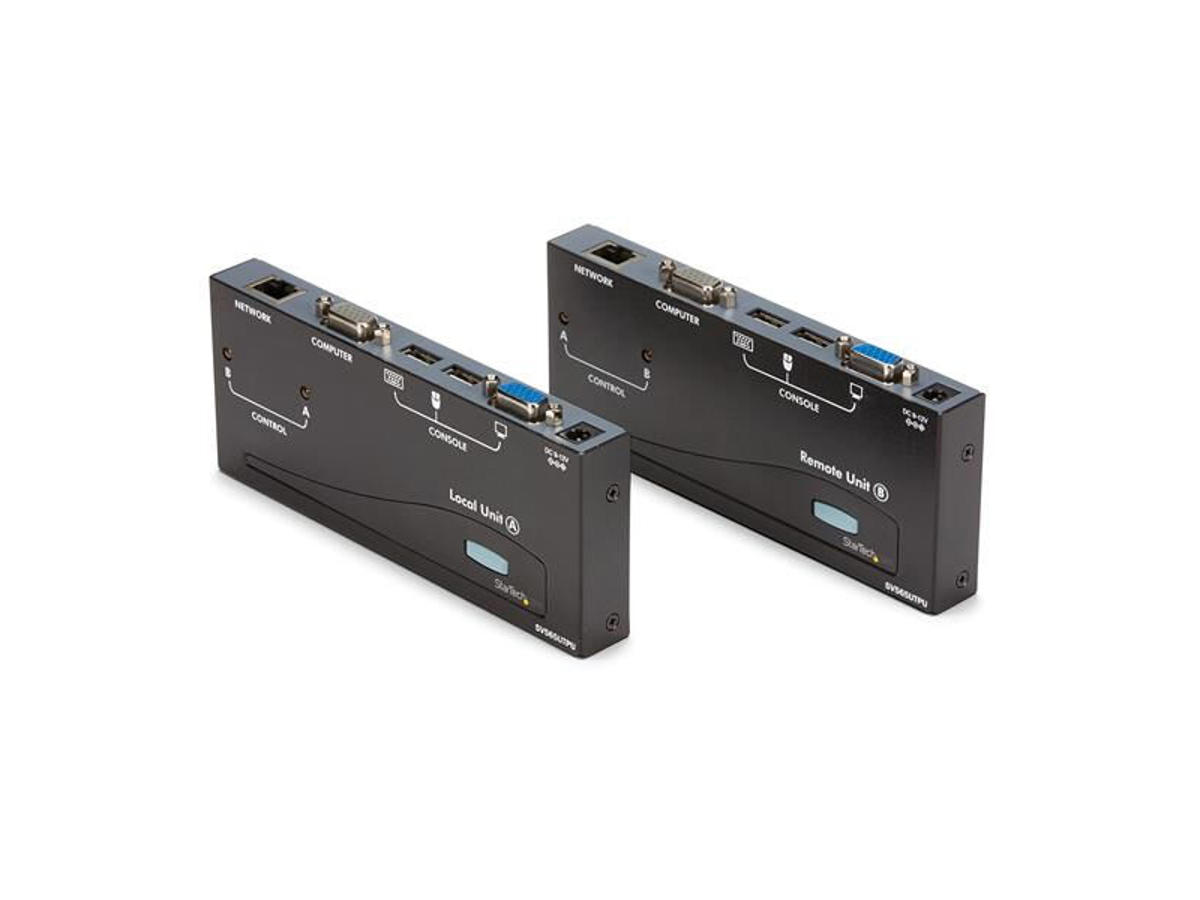

The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
Funktioner | |
Type | Sender & modtager |
Forbindelsesteknologi | Ledningsført |
Maksimal overførselsafstand | 150 m |
Stativ-montering | Ingen |
Produktfarve | Sort |
Plug and play | Ja |
Certificering | CE, FCC, REACH, TAA, UL |
Sender | |
Sender til video porttype | VGA |
Sender til lokal videoport | Ja |
Sender til lokal video porttype | VGA |
Porte & Grænseflader | |
USB porttype | USB Type-A |
Antal USB 2.0-porte | 4 |
Antal RJ-45-porte | 2 |
Strømstyring | |
Strømstiktype | Type M |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 0.2 A |
Udgangsspænding for vekselstrømsadapter | 9 V |
Vekselstrømsadapterens udgangsstrøm | 0,6 A |
Strømforbrug (sender) (maks) | 5,4 W |
Strømforbrug (modtager) (maks) | 5,4 W |
Vægt & størrelser | |
Transmitter bredde | 15,5 cm |
Transmitter dybde | 7,5 cm |
Transmitter højde | 2 cm |
Transmitter vægt | 299 g |
Modtager bredde | 15,5 cm |
Modtager dybde | 7,5 cm |
Modtager højde | 2 cm |
Modtager vægt | 299 g |
Emballeringsdata | |
Pakkebredde | 85 mm |
Pakkedybde | 294 mm |
Pakkehøjde | 243 mm |
Pakkevægt | 1,7 kg |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Kabler inkluderet | KVM |
Brugervejledning | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Tekniske detaljer | |
Maksimal opløsning | 1280 x 1024 pixel |
Vægt | 299 g |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
