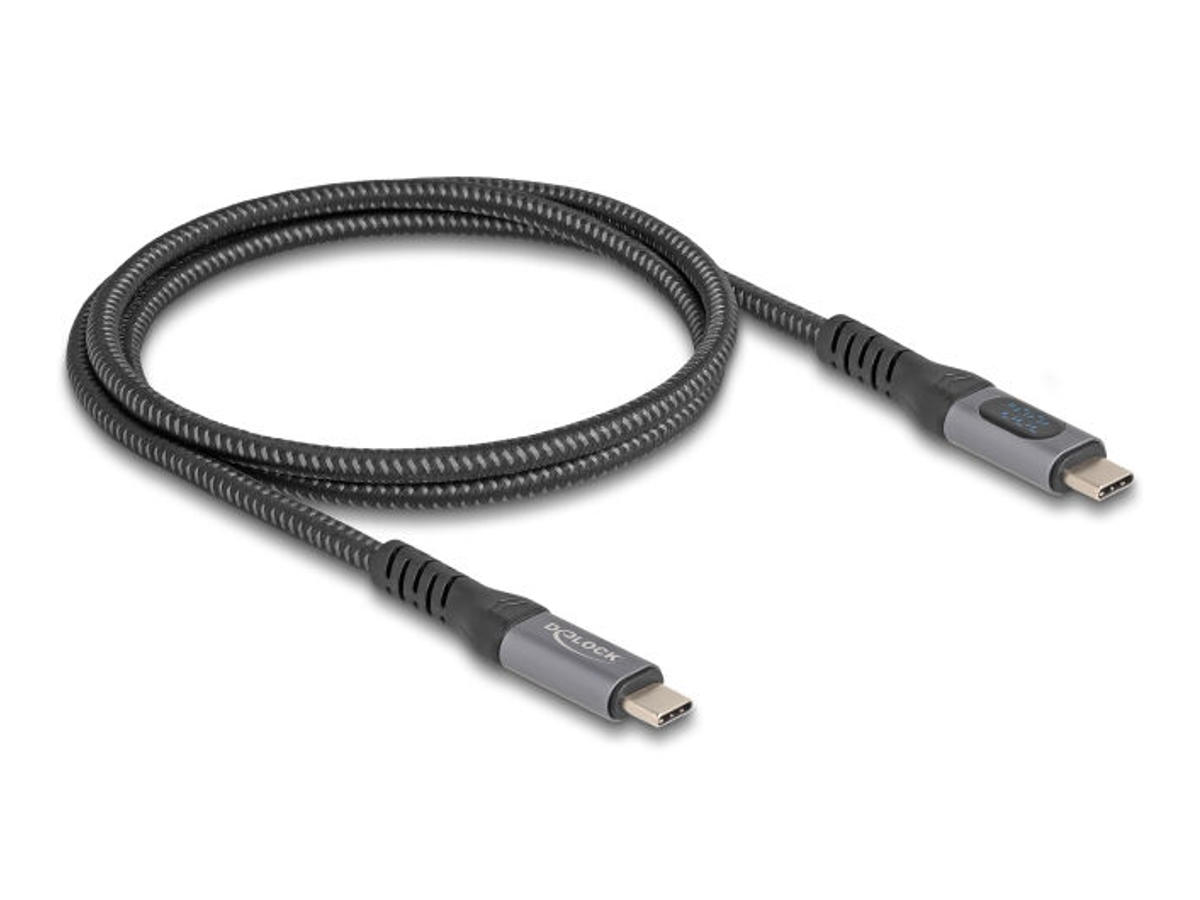

This USB 40 Gbps "full featured" cable by Delock enables the connection of various devices, such as smart phones, monitors, external enclosures and docking stations, via a USB Type-C™, Thunderbolt™ 3 or Thunderbolt™ 4 port of a PC or laptop. A suitable PD power supply unit with a USB Type-C™ socket can be used for the charging function only. Support for the Extended Power Range resp. USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) is possible. The cable supports the transfer of USB as well as DisplayPort and PCI Express data.
Display
A special feature of this cable is the power indication, which shows the current charging power in watts as well as the current in amperes and voltage in volts. The power will be displayed with three digits.
Connect USB-C™ 8K monitors
The Delock cable supports the DisplayPort 2.0 Alternate Mode, enabling the connection of corresponding USB-C™ monitors with a screen resolution up to 8K 60 Hz.
Quality and performance
The cable is very sturdy and durable due to its robust textile shielding and strong strain relief. The high cable gauge of the power line with 21 AWG also supports a stable power supply of up to 5 A.
Funktioner | |
USB version | USB4 Gen 3x2 |
Stik 1 | USB C |
Stik 2 | USB C |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
AWG-ledningsstørrelse | 29/21 |
Kabel kappemateriale | Tekstil |
Kablets kappetype | Flettet |
Maksimal dataoverførselshastighed | 40 Gbit/sek. |
Kabeltype | Rundt kabel |
USB strømforsyning | Ja |
USB strømforsyning revision | 3.1 |
USB strømforsyning op til | 240 W |
USB type-C DisplayPort alternativ tilstand | Ja |
DisplayPort-version | 1.4a |
Indbygget skærm | Ja |
Indbygget effektmåler | Ja |
High Dynamic Range (HDR) understøttet | Ja |
HDR-teknologi (High Dynamic Range) | High Dynamic Range 10 (HDR10) |
HDCP | Ja |
HDCP-version | 1.4/2.3 |
Strømstyring | |
Indgangsspænding | 48 V |
Indgående strøm (maks.) | 5 A |
Vægt & størrelser | |
Kabellængde | 1 m |
Kabeldiameter | 5,5 mm |
Emballeringsdata | |
Pakketype | Kasse |
Emballage indhold | |
Antal pr. pakke | 1 stk |
