USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.

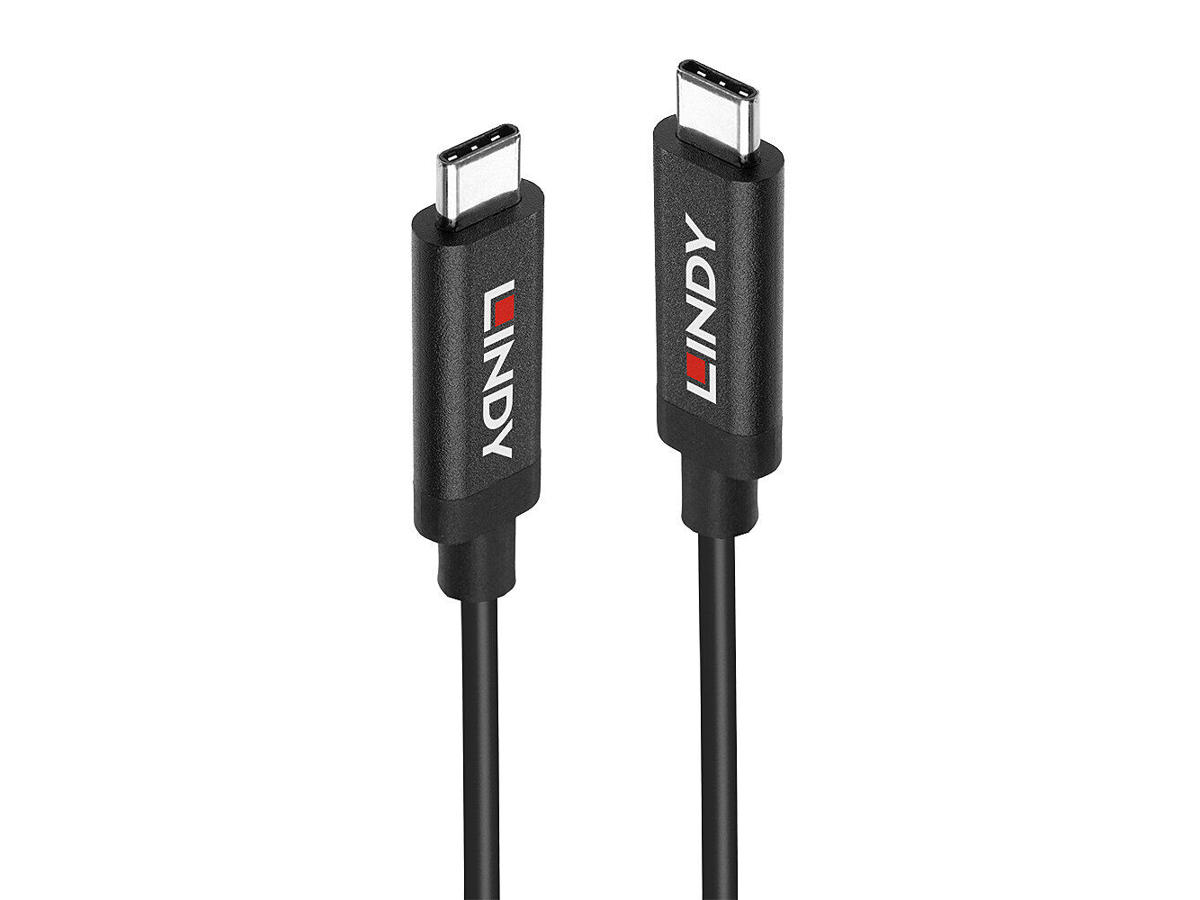

The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB device by an additional 3m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Funktioner | |
USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
Stik 1 | USB C |
Stik 2 | USB C |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Nikkel |
Kabel kappemateriale | Polyvinylchlorid (PVC) |
Ledningsmateriale | Fortinnet kobber |
Maksimal dataoverførselshastighed | 10000 Mbit/s, 10 Gbit/sek. |
USB strømforsyning | Ja |
USB strømforsyning op til | 60 W |
Certificering | CE, FCC, RoHS & REACH |
Vægt & størrelser | |
Kabellængde | 3 m |
Kabeldiameter | 5,3 mm |
Vægt | 130 g |
Emballeringsdata | |
Pakketype | Polybag |
Pakkebredde | 236 mm |
Pakkehøjde | 255 mm |
Pakkevægt | 200 g |
Emballage indhold | |
Antal pr. pakke | 1 stk |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
