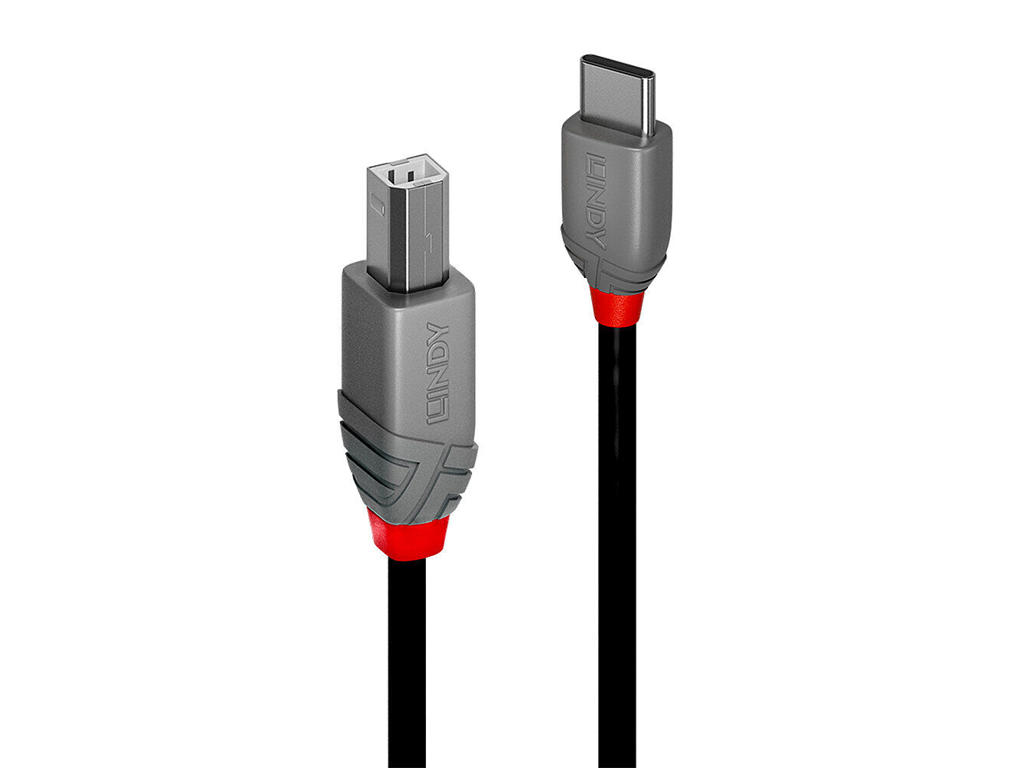

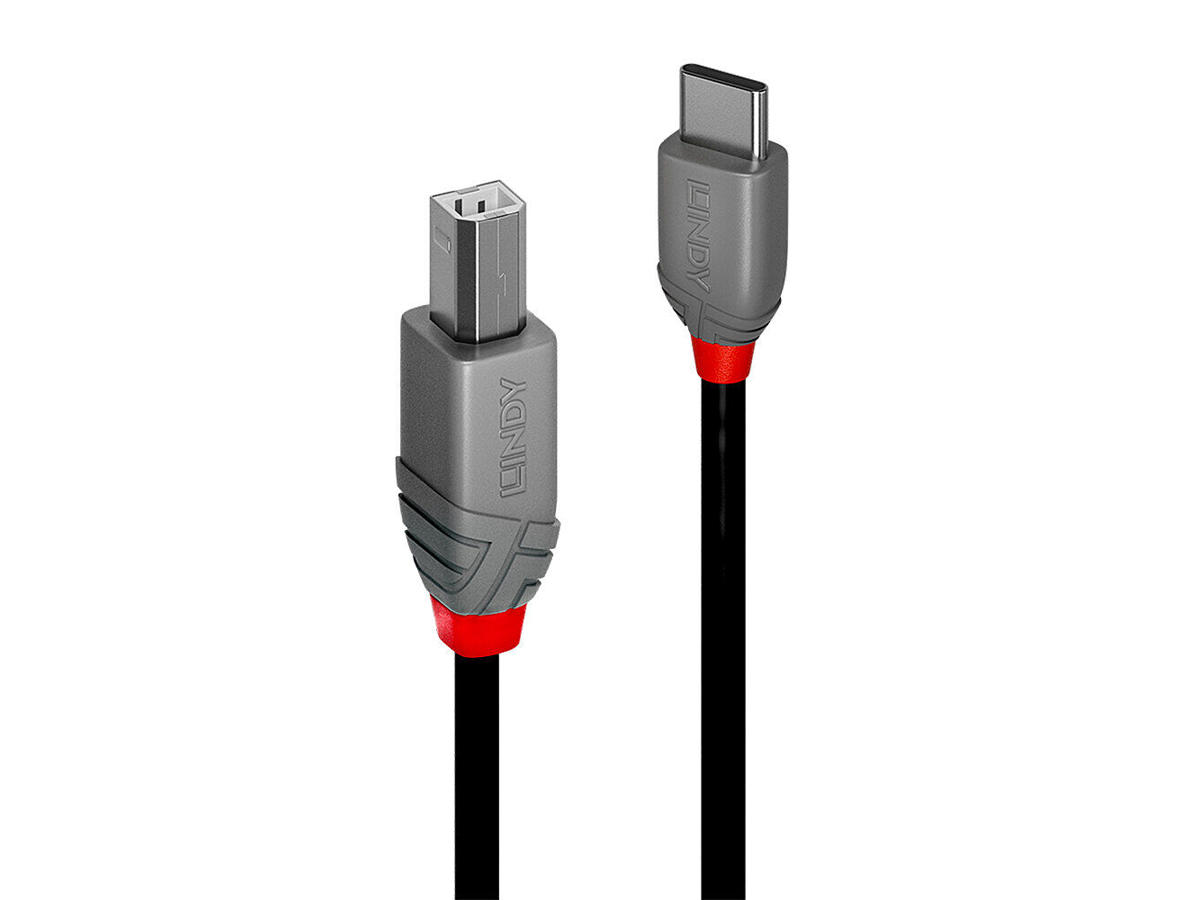

The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 2.0 Type C to B cables are available in the following length: 0.5m, 1m, 2m and 3m.
Funktioner | |
USB version | USB 2.0 |
Stik 1 | USB C |
Stik 2 | USB B |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
AWG-ledningsstørrelse | 26/28 |
Kontaktmateriale | Messing |
Stikforbindelse kontakter plettering | Nikkel |
Kabel kappemateriale | Polyvinylchlorid (PVC) |
Ledningsmateriale | Fortinnet kobber |
Stik afskærmning | Ja |
Maksimal dataoverførselshastighed | 480 Mbit/s, 0,48 Gbit/sek. |
Kabeltype | Rundt kabel |
Nominel dæmpning | 1-400MHz < 5.8dB |
Vægt & størrelser | |
Kabellængde | 2 m |
Kabeldiameter | 4,4 mm |
Bøjningsradius (min) | 2,5 cm |
Stik 1 dimensioner (BxDxH) | 10,9 x 28,3 x 7,2 mm |
Stik 2 dimensioner (BxDxH) | 11,8 x 47 x 10,2 mm |
Emballeringsdata | |
Pakketype | Polybag |
Emballage indhold | |
Antal pr. pakke | 1 stk |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | 0 - 70 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Andre funktioner | |
Compliance-certifikater | REACH, RoHS |
