Lindy 43229 USB-kabel USB 3.2 Gen 1 (3.1 Gen 1) 15 m USB A Sort
Varenummer: 43229
.
DKK 3.561,25 / Stk
DKK 2.849,00 ekskl. moms
  •
Lindy 43229. Kabellængde: 15 m. Stik 1: USB A, Stik 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maksimal dataoverførselshastighed: 5 Gbit/sek., Stikforbindelse kontakter plettering: Guld, Produktfarve: Sort


Mere information

Bedst sælgende i Kabler

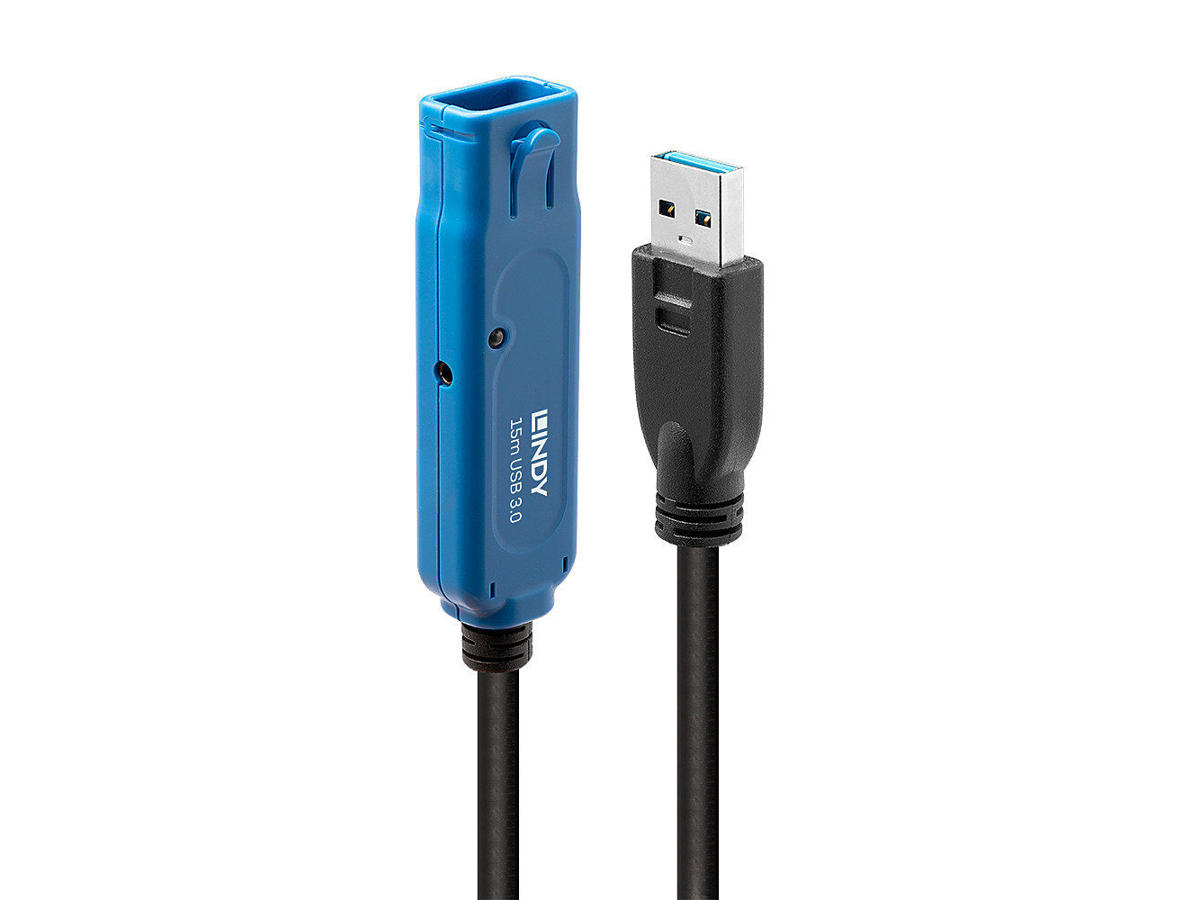

  • The Lindy 15m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.

    The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.

    This 15m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

    Using this cable as part of the USB 3.0 Active Extension System Pro

    If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

    The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

    The final part of the extension can be any cable or hub from the Extension System Pro range.

    If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.

    Information about USB 3.0, 3.1 and 3.2

    USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

  • Funktioner
    USB version USB 3.2 Gen 1 (3.1 Gen 1)
    Stik 1 USB A
    Stik 2 USB A
    Stik 1 køn Hanstik
    Stik 2 køn Hunstik
    Produktfarve Sort
    Stik 1 formfaktor Lige
    Stik 2 formfaktor Lige
    AWG-ledningsstørrelse 24/24/20
    Tilslutningsmateriale Nikkel
    Kontaktmateriale Messing
    Stikforbindelse kontakter plettering Guld
    Kabel kappemateriale Polyvinylchlorid (PVC)
    Ledningsmateriale Fortinnet kobber
    Materiale til stikhus Plast
    Maksimal dataoverførselshastighed 5000 Mbit/s, 5 Gbit/sek.
    Kabeltype Rundt kabel
    Transmissionsmedium Snoet par
    Nominel dæmpning 0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
    Certificering CE, UKCA, FCC, RoHS, REACH, California Proposition 65
    Strømstyring
    Effektnote 2.5/0.7mm DC Connector
    Vægt & størrelser
    Kabellængde 15 m
    Kabeldiameter 7 mm
    Vægt 1 kg
    Bøjningsradius (min) 3,6 cm
    Stik 1 dimensioner (BxDxH) 15 x 49 x 8 mm
    Stik 2 dimensioner (BxDxH) 20 x 80 x 13 mm
    Emballeringsdata
    Pakketype Kasse
    Pakkebredde 280 mm
    Pakkedybde 180 mm
    Pakkehøjde 10 mm
    Pakkevægt 1,35 kg
    Emballage indhold
    Antal pr. pakke 1 stk
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Logistik data
    Harmoniseret systemkode (HS) 84733080
