High Capacity – 10TB HDD, drop-in ready for mainstream enterprise
Low Power – 44% more efficient (Watts/TB) than air-filled drives
Most Reliable – Best-in-class reliability rating of 2.5M hours MTBF

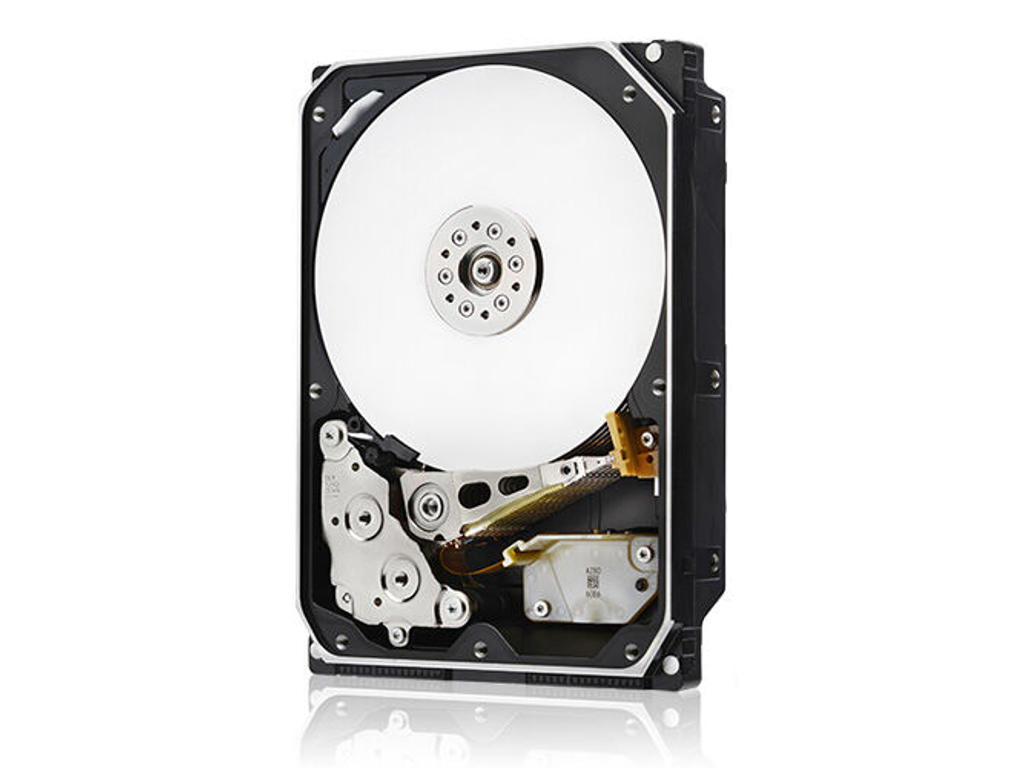

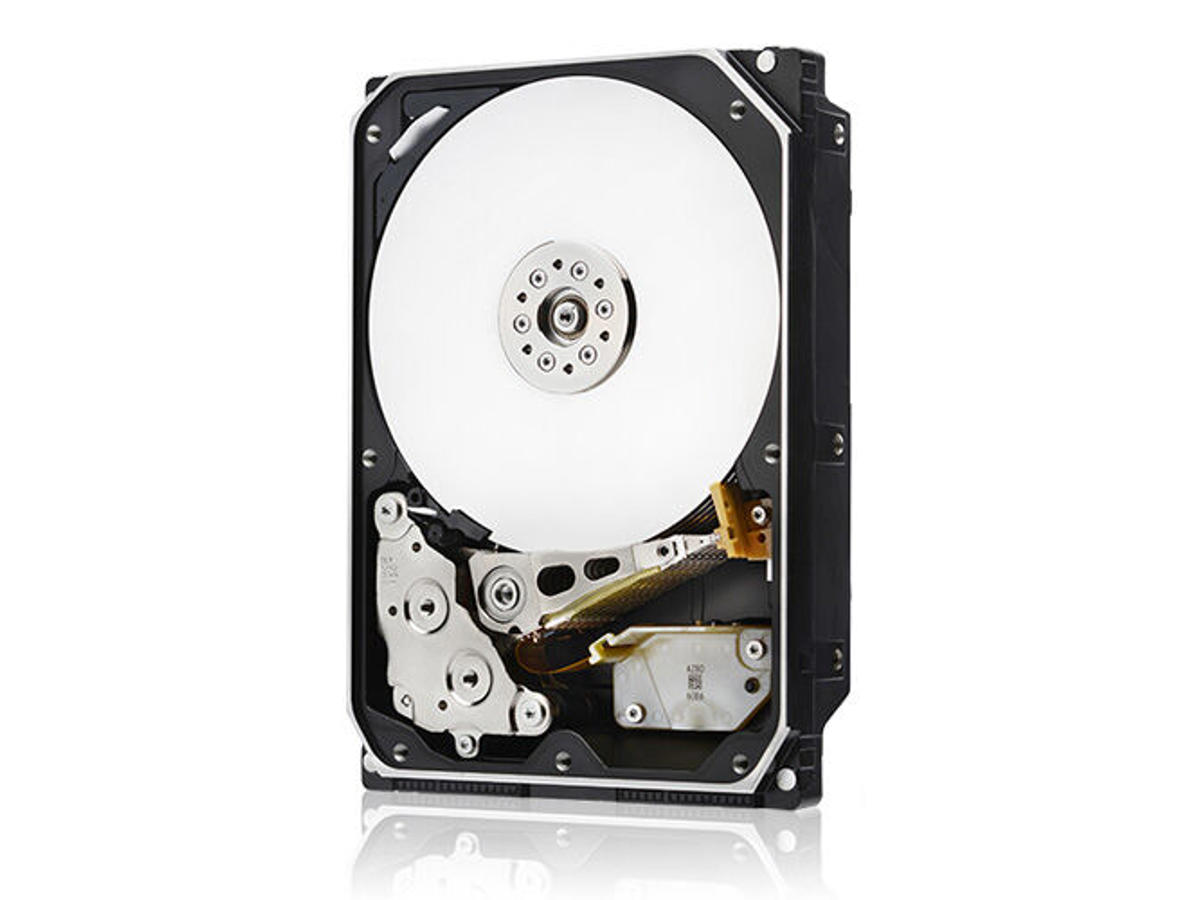

Laying the foundation for a worry-free data center, HGST delivers an exceptional capacity hard drive in the industry – Ultrastar He10. Designed to handle workloads up to 550TB per year, the He10 uses PMR technology and is the industry’s first 10TB drive that is drop-in ready for any enterprise-capacity application or environment. Based on field proven, third-generation HelioSeal® technology, it offers the lowest power profile in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the He10 provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 8TB and 6TB predecessors. Trust HGST and Ultrastar He10 to deliver more capacity, more efficiency, more reliability and more value to your data center.
Funktioner | |
HDD kapacitet | 10 TB |
HDD hastighed | 7200 rpm |
HDD-størrelse | 3.5" |
Grænseflade | SAS |
Type | HDD |
Komponent til | Server/arbejdsplads |
Lagringsdrev buffer størrelse | 256 MB |
Overførselshastighed for HDD-grænseflade | 12 Gbit/sek. |
HDD vedvarende overførselshastighed | 237 MiB/s |
Læs søgetid | 8 ms |
Skriv søgetid | 8,6 ms |
Gennemsnitlig ventetid | 4,16 ms |
Bytes pr. sektor | 4096 |
Gennemsnitstid mellem fejl (MTBF) | 2500000 t |
Strømstyring | |
Strømforbrug (typisk) | 9,5 W |
Strømforbrug (inaktiv) | 5,8 W |
Driftsspænding | 5 / 12 V |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 60 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Driftsvibrationer | 0,67 G |
Ikke-drift vibration | 1,04 G |
Stød under drift | 70 G |
Ikke-drift stød | 300 G |
Vægt & størrelser | |
Bredde | 101,6 mm |
Højde | 26,1 mm |
Dybde | 147 mm |
Vægt | 660 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Logistik data | |
Harmoniseret systemkode (HS) | 84717050 |
