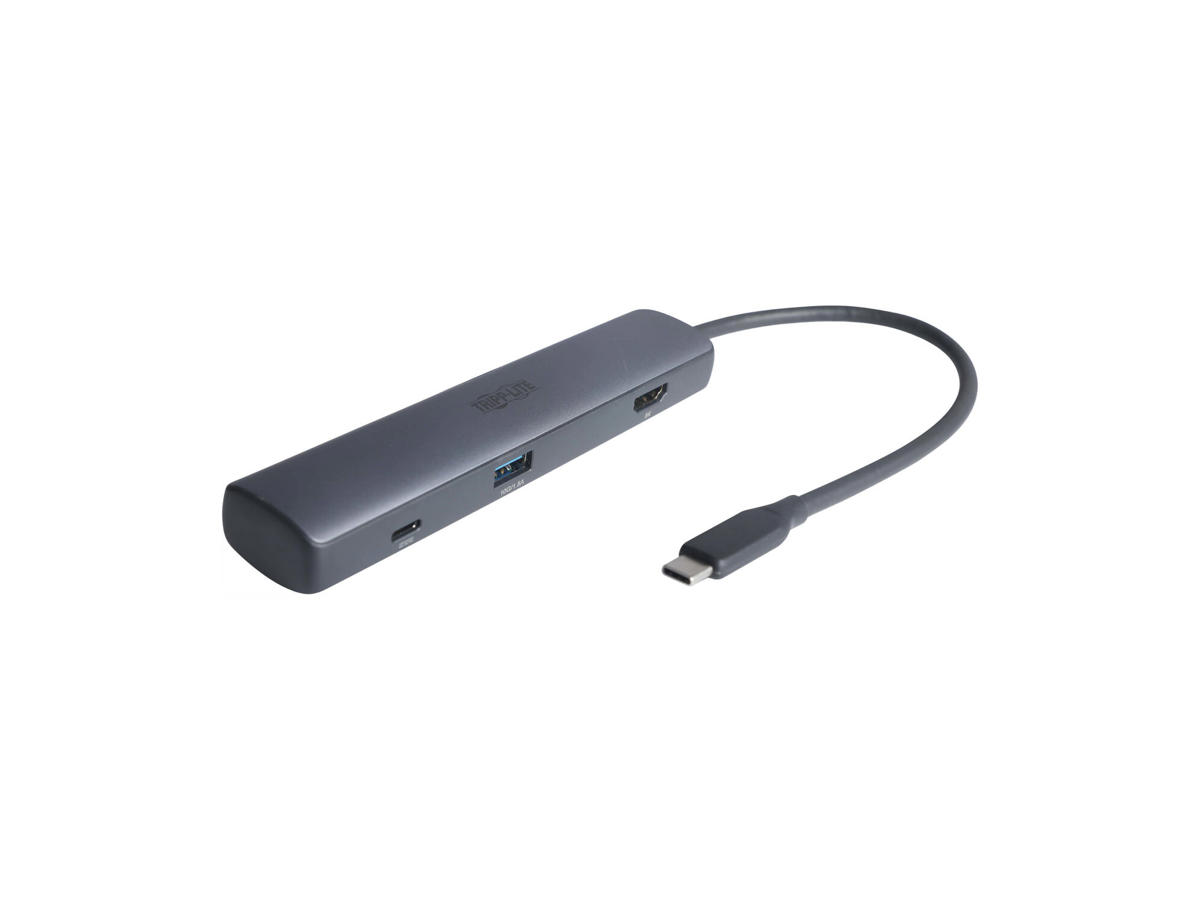

USB-C Mini Dock Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
This versatile 8K adapter adds multiple ports to the USB-C or Thunderbolt 3 port on your MacBook Pro, Windows laptop or Chromebook. The U442-DOCK40-5 allows you to transmit digital audio and 8K video to an external display, add USB peripherals, and power and charge a PD Charging-compliant host device simultaneously. It is ideal for future-proofing your high-definition or Ultra HD application in anticipation of an 8K upgrade.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 8K video and digital audio to a compatible HDMI monitor, television or projector without installing special software drivers.
Enjoy the Clarity of 4K/8K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The HDMI port supports 8K UHD resolutions up to 7680 x 4320 at 30 Hz for professional photo and video editing. It also supports High Dynamic Range (HDR10+), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.3 compliance allows you to stream 4K content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Connects USB Peripherals and Transfers Data at Fast USB 3.2 Gen 2 Speeds
Three USB 3.2 Gen 2 ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support lightning-fast data transfer rates up to 10 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One port provides up to 5V/1.5A (7.5W) of charging power to mobile devices. The three ports share a budget of 12W (2.4A total) and support over-current and short-circuit protection.
PD 3.0 Charging Port Charges High-Powered Devices via AC Wall Charger
The USB-C Power Delivery port provides power output up to 20V 5A (100W), which is sufficient for charging and powering the connected source device, such as a MacBook or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play USB-C multiport adapter is specifically designed for the MacBook Pro, Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. Its thin profile design fits easily into a pocket, purse or laptop bag for convenient connections on the go.
Porte & Grænseflader | |
Porte, antal | 5 |
Værtsgrænseflade | USB Type-C |
Hub-grænseflader | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 3 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
Antal HDMI-porte | 1 |
DisplayPort-version | 1.4 |
USB type-C DisplayPort alternativ tilstand | Ja |
Funktioner | |
Maksimal opdateringshastighed | 30 Hz |
Understøttede grafikopløsninger | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 5120 x 2880, 7680 x 4320 |
Maksimal opløsning (HDMI) | 7680 x 4320 pixel |
High Dynamic Range (HDR) understøttet | Ja |
3D | Ja |
Produktfarve | Grå |
HDCP | Ja |
HDCP-version | 1.4/2.3 |
USB strømforsyning | Ja |
USB strømforsyning revision | 3.0 |
USB strømforsyning op til | 100 W |
Beskyttelse mod overspænding | Ja |
Overgangsstrøm beskyttelse | Ja |
Batteri opladningskapabilitet | Ja |
AWG-ledningsstørrelse | 34/24 |
Kabel kappemateriale | Termoplastisk elastomer (TPE) |
Vægt & størrelser | |
Bredde | 31 mm |
Dybde | 142 mm |
Højde | 18 mm |
Vægt | 91 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 200 mm |
Pakkedybde | 90 mm |
Pakkehøjde | 22 mm |
Pakkevægt | 100 g |
Pakketype | Kasse |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
