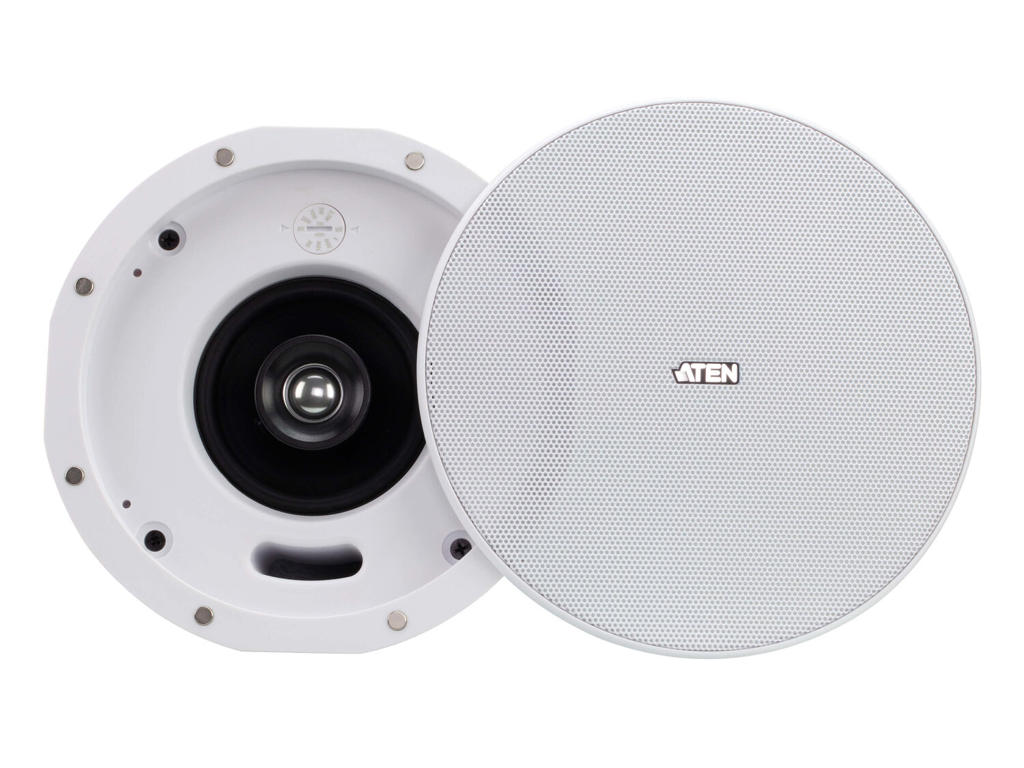

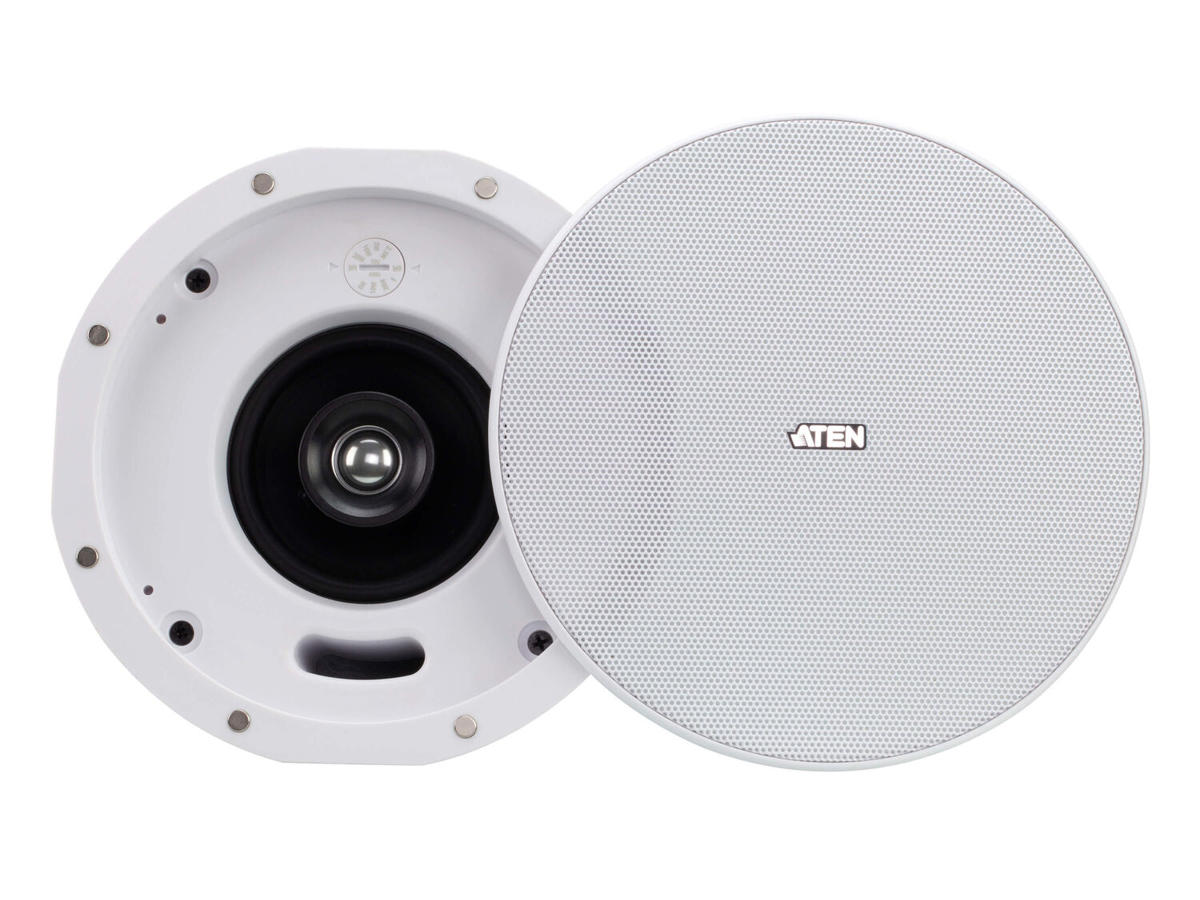

The AS104 comes in a pair of 4” coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4” woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
Højttalere | |
Højttaler, type | 2-vejs |
Højttaler, placering | Kan monteres i loftet |
Antal drivere | 2 |
Diskanthøjttaler | Ja |
Antal drivere til diskant | 1 |
Diskant diameter | 2 cm |
Bashøjttaler | Ja |
Antal bashøjttalerdrev | 1 |
Woofer diameter | 10,2 cm |
Lyd | |
Udgangseffekt (RMS) | 30 W |
Peak Music-Udgangseffekt (PMPO) | 60 W |
Frekvensområde | 100 - 20000 Hz |
Impedens | 8 ohm (Ω) |
Sensitivitet | 86 dB |
klirfaktor (THD) | 5% |
Præstation | |
Produktfarve | Hvid |
Anbefalet brug | Universel |
Husmateriale | Plast, Gummi, Stål |
Forstærker | |
Forstærker | Ingen |
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Bluetooth | Ingen |
Strømstyring | |
Strømkilde type | DC |
Transformer ventiler | 2.5,5,10,20 W |
Vægt & størrelser | |
Bredde | 218 mm |
Dybde | 218 mm |
Højde | 130 mm |
Vægt | 2,2 kg |
Emballeringsdata | |
Pakkevægt | 9,46 kg |
Emballage indhold | |
Brugervejledning | Ja |
Monteringsbeslag inkluderet | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS, WEEE |
Logistik data | |
Hovedkassens bredde (udvendigt) | 350 mm |
Hovedkassens længde (udvendigt) | 725 mm |
Hovedkassen højde (udvendigt) | 200 mm |
Hovedkassens bruttovægt (udvendigt) | 9,46 kg |
Ydre emballage nettovægt | 6,6 kg |
Produkter pr. hovedkasse (udvendigt) | 2 stk |
Ydre emballage volumen | 50687,16 cm³ |
Andre funktioner | |
Oprindelsesland | Kina |
Pakkevolumen | 50687,16 cm³ |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
