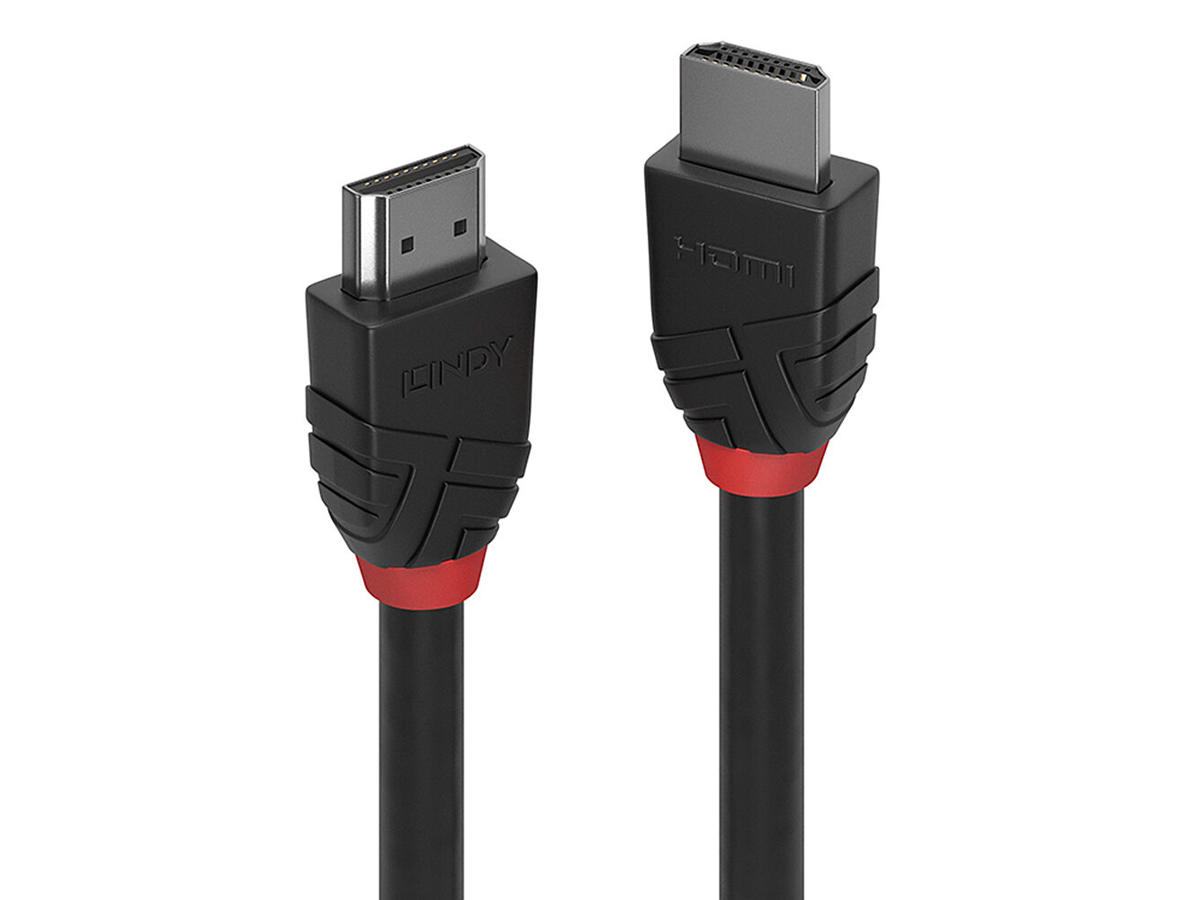

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths from 0.5m to 15m.
Funktioner | |
Kabellængde | 3 m |
Stik 1 | HDMI Type A (Standard) |
Stik 2 | HDMI Type A (Standard) |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Sort |
Stikforbindelse kontakter plettering | Guld |
Antal pr. pakke | 1 stk |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDMI-version | 2.0 |
Understøttede grafikopløsninger | 4096 x 2160 |
HDMI Ethernet-kanal | Ja |
Dataoverførselshastighed | 18 Gbit/sek. |
Maksimal opløsning | 4096 x 2160 pixel |
AWG-ledningsstørrelse | 30 |
Kontaktmateriale | Fosforbronze |
Materiale til stikhus | Polyvinylchlorid (PVC) |
Tilslutningsmateriale | Nikkel |
Kabelmateriale | Kobberbelagt stål (CCS) |
Kabeltype | Rundt kabel |
Kabel kappemateriale | Polyvinylchlorid (PVC) |
Skjold materiale | Aluminium |
Bøjeradius (min.) | 6 cm |
Farvedybde | 8 Bit |
Farveprøvetagning | 4:4:4 |
Nominel dæmpning | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
Certificering | RoHS, REACH, UL |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 80 °C |
Opbevaringstemperatur (T-T) | -10 - 80 °C |
Vægt & størrelser | |
Kabeldiameter | 6 mm |
Stik 1 dimensioner (BxDxH) | 19,2 x 34,1 x 10,6 mm |
Stik 2 dimensioner (BxDxH) | 19,2 x 34,1 x 10,6 mm |
Pakketype | Polybag |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
