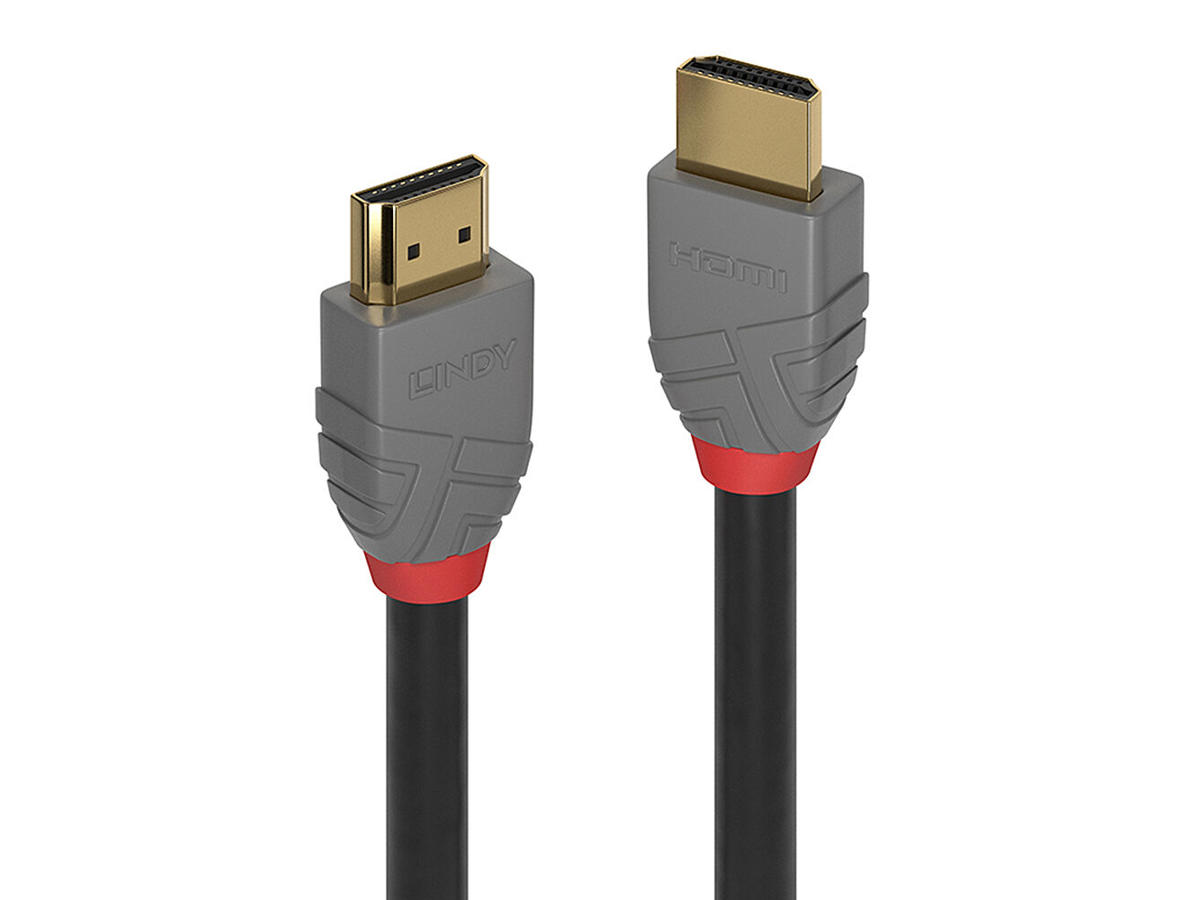

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
Funktioner | |
Kabellængde | 3 m |
Stik 1 | HDMI Type A (Standard) |
Stik 2 | HDMI Type A (Standard) |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Sort, Grå |
Stikforbindelse kontakter plettering | Guld |
Antal pr. pakke | 1 stk |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Understøttede grafikopløsninger | 4096 x 2160 |
Understøttede videotilstande | 2160p |
HDMI Ethernet-kanal | Ja |
Dataoverførselshastighed | 18 Gbit/sek. |
Maksimal opløsning | 4096 x 2160 pixel |
AWG-ledningsstørrelse | 30 |
Kontaktmateriale | Fosforbronze |
Materiale til stikhus | Polyvinylchlorid (PVC) |
Tilslutningsmateriale | Guld |
Kabelmateriale | Kobber |
Kabeltype | Rundt kabel |
Kabel kappemateriale | Polyvinylchlorid (PVC) |
Skjold materiale | Kobber |
Bøjeradius (min.) | 4,8 cm |
Farvedybde | 8 Bit |
Plug and play | Ja |
Farveprøvetagning | 4:4:4 |
Nominel dæmpning | 300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB |
Certificering | RoHS, REACH, UL, ATC |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 80 °C |
Opbevaringstemperatur (T-T) | -10 - 80 °C |
Vægt & størrelser | |
Kabeldiameter | 6 mm |
Stik 1 dimensioner (BxDxH) | 20 x 34,2 x 10,9 mm |
Stik 2 dimensioner (BxDxH) | 20 x 34,2 x 10,9 mm |
Pakketype | Polybag |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
