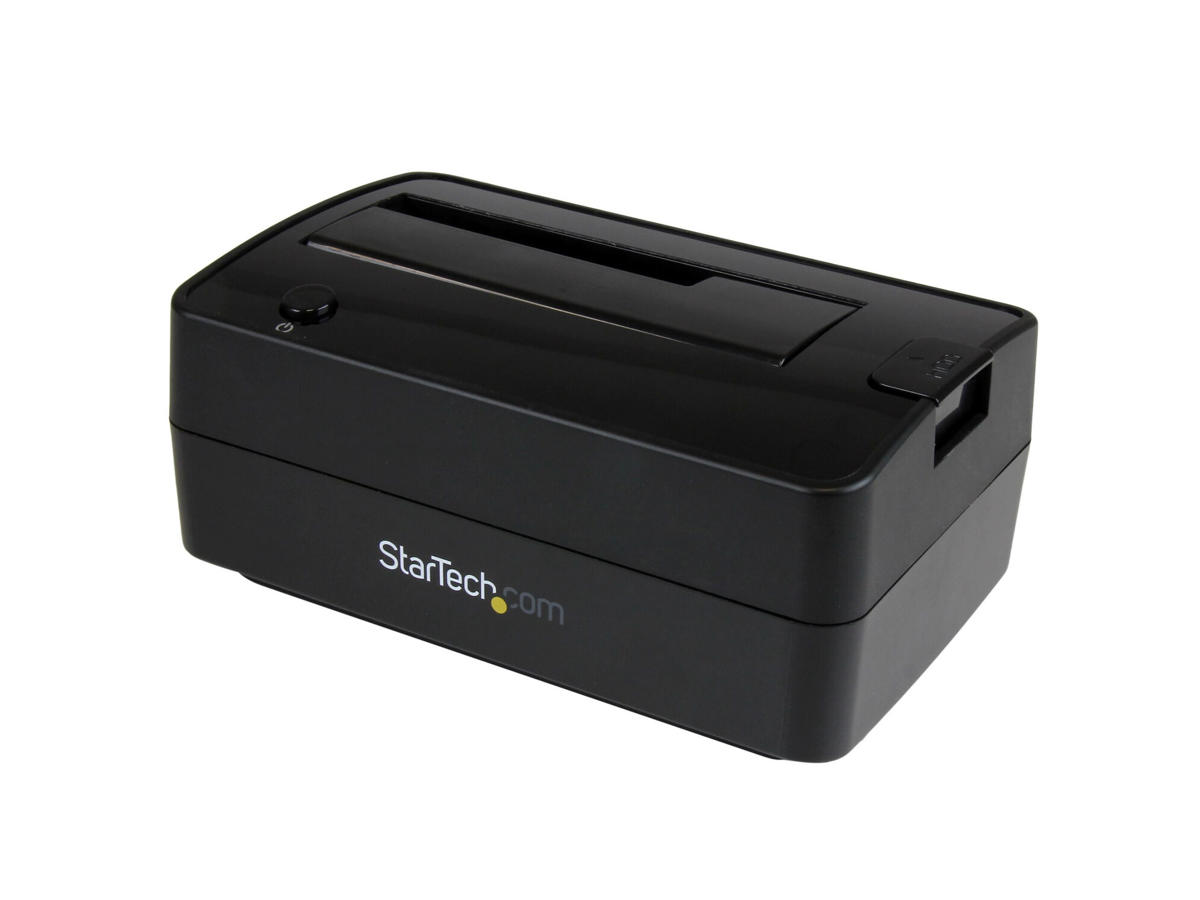

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATA
Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.
Top-loading design for easy drive access
The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Diskdrev | |
Opbevaringsmedietype | HDD, SSD |
Grænseflade til lagerdisk | SATA, Serial ATA II, Serial ATA III |
Understøttede lagerdisk størrelser | 2.5,3.5" |
Antal understøttede lagerdiske | 1 |
Maksimal lagerkapacitet | 6 TB |
Porte & Grænseflader | |
Værtsgrænseflade | USB 3.2 Gen 2 (3.1 Gen 2) Type-B |
Antal eSATA-porte | 1 |
DC-in-stik | Ja |
Funktioner | |
Maksimal dataoverførselshastighed | 10 Gbit/sek. |
Produktfarve | Sort |
Materiale | Plast |
Hot-swap | Ja |
Plug and play | Ja |
LED-indikatorer | Aktivitet, Strøm |
Understøtter UASP | Ja |
Certificering | CE, FCC, REACH |
Nedkøling | |
Indbygget ventilator | Ingen |
Strømstyring | |
Vekselstrømsindgangsspænding | 110-240 V |
Indgangsstrøm | 0.6 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 2 A |
Strømstiktype | Type M |
Vægt & størrelser | |
Bredde | 93 mm |
Dybde | 145 mm |
Højde | 63 mm |
Vægt | 410 g |
Emballeringsdata | |
Pakkebredde | 161 mm |
Pakkedybde | 171 mm |
Pakkehøjde | 91 mm |
Pakkevægt | 862 g |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Kabler inkluderet | USB, eSATA |
Inkluderede strømstik typer | AU, EU, NA, UK |
Hurtig installationsvejledning | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 35 °C |
Opbevaringstemperatur (T-T) | -20 - 50 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Andre funktioner | |
Chipsæt | ASMedia - ASM1351 |
Compliance-certifikater | RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 382 mm |
Hovedkassens længde (udvendigt) | 484 mm |
Hovedkassen højde (udvendigt) | 184 mm |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
