External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATA

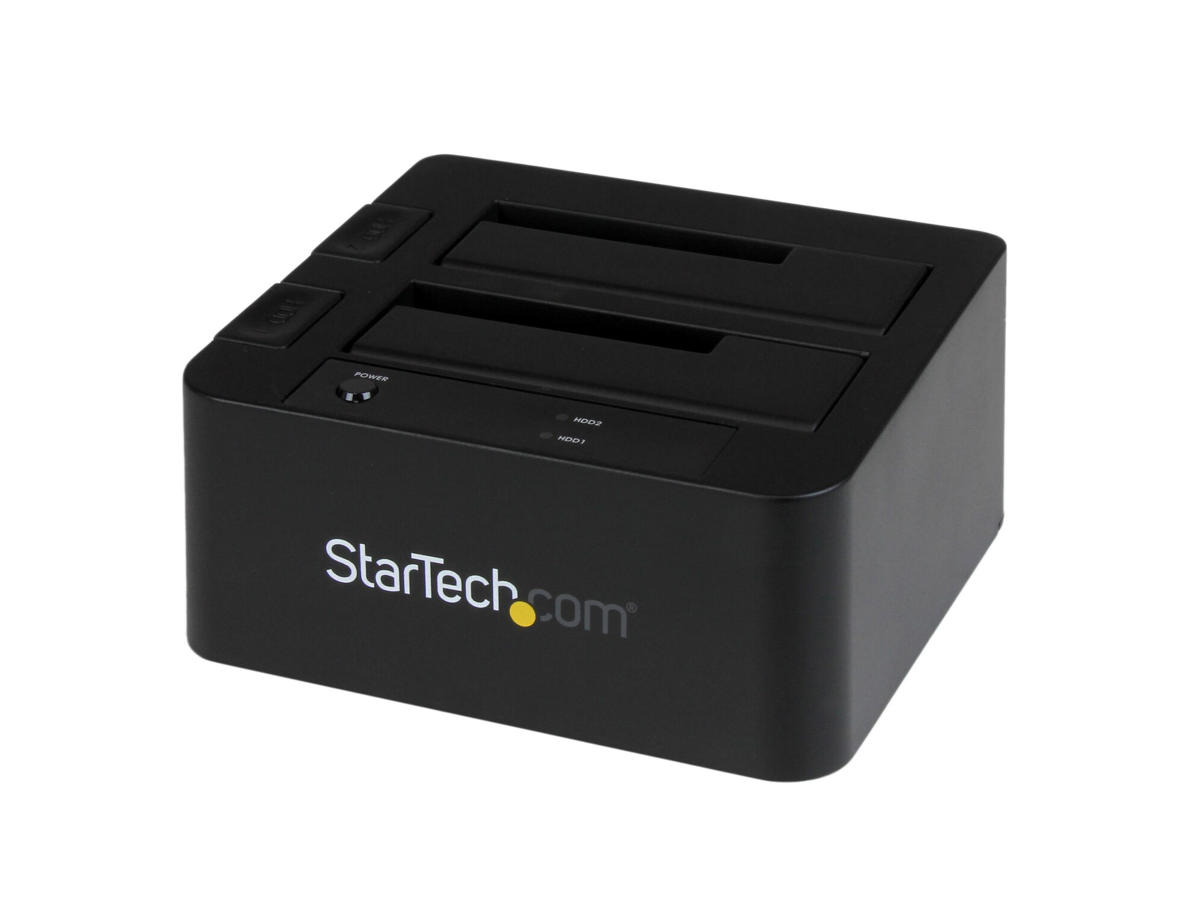

The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.
For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
Diskdrev | |
Opbevaringsmedietype | HDD, SSD |
Grænseflade til lagerdisk | Serial ATA III |
Understøttede lagerdisk størrelser | 2.5,3.5" |
Antal understøttede lagerdiske | 2 |
Maksimal lagerkapacitet | 8 TB |
Porte & Grænseflader | |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
Antal USB 3.2 Gen 1 (3.1 Gen 1) -porte | 1 |
Antal eSATA-porte | 1 |
DC-in-stik | Ja |
Funktioner | |
Maksimal dataoverførselshastighed | 6 Gbit/sek. |
Produktfarve | Sort |
Materiale | Plast |
LED-indikatorer | Aktivitet, Strøm |
Certificering | CE, FCC |
Strømstyring | |
Vekselstrømsindgangsspænding | 100-240 V |
Indgangsstrøm | 1.5 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 3 A |
Strømstiktype | Type M |
Software | |
Understøttede Windows-operativsystemer | Windows 2000, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Vægt & størrelser | |
Bredde | 132 mm |
Dybde | 143 mm |
Højde | 70 mm |
Vægt | 524 g |
Emballeringsdata | |
Pakkebredde | 123 mm |
Pakkedybde | 185 mm |
Pakkehøjde | 210 mm |
Pakkevægt | 1,1 kg |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Kabler inkluderet | eSATA, USB |
Brugervejledning | Ja |
Inkluderede strømstik typer | ANZ, EU, NA, UK |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 35 °C |
Opbevaringstemperatur (T-T) | -20 - 50 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Andre funktioner | |
Standard grænseflader | eSATA, USB 3.2 Gen 1 (3.1 Gen 1) |
Chipsæt | JMicron - JMS562 |
Compliance-certifikater | RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 461 mm |
Hovedkassens længde (udvendigt) | 618 mm |
Hovedkassen højde (udvendigt) | 200 mm |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
