Connect fiber network devices for high-speed transfers with LSZH rated cable

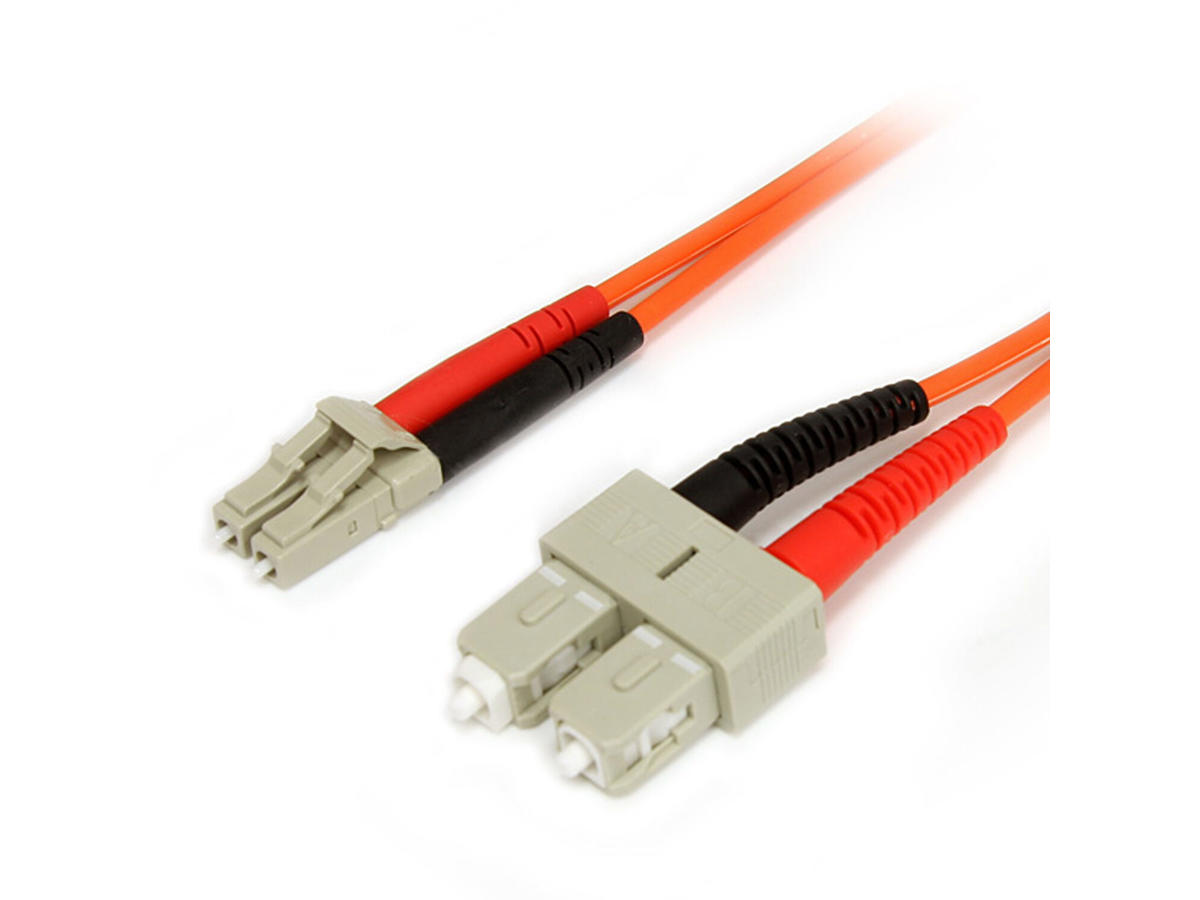

The FIBLCSC1 1-meter (3.2ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 1 m |
Stik 1 | LC |
Stik 2 | SC |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Orange |
Materiale for kapper | Lav røg ingen halogen (LSZH) |
Fiberoptisk type | OM1 |
Fuld duplex | Ja |
Kernediameter | 62,5 µm |
Beklædning diameter | 125 µm |
Fibertilstandsstruktur | Multitilstand |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | -20 - 60 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Vægt & størrelser | |
Vægt | 26 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 200 mm |
Pakkedybde | 220 mm |
Pakkehøjde | 26 mm |
Pakkevægt | 35 g |
Logistik data | |
Hovedkassens bredde (udvendigt) | 340 mm |
Harmoniseret systemkode (HS) | 85447000 |
Hovedkassens længde (udvendigt) | 245 mm |
Hovedkassen højde (udvendigt) | 317 mm |
Produkter pr. hovedkasse (udvendigt) | 320 stk |
