LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

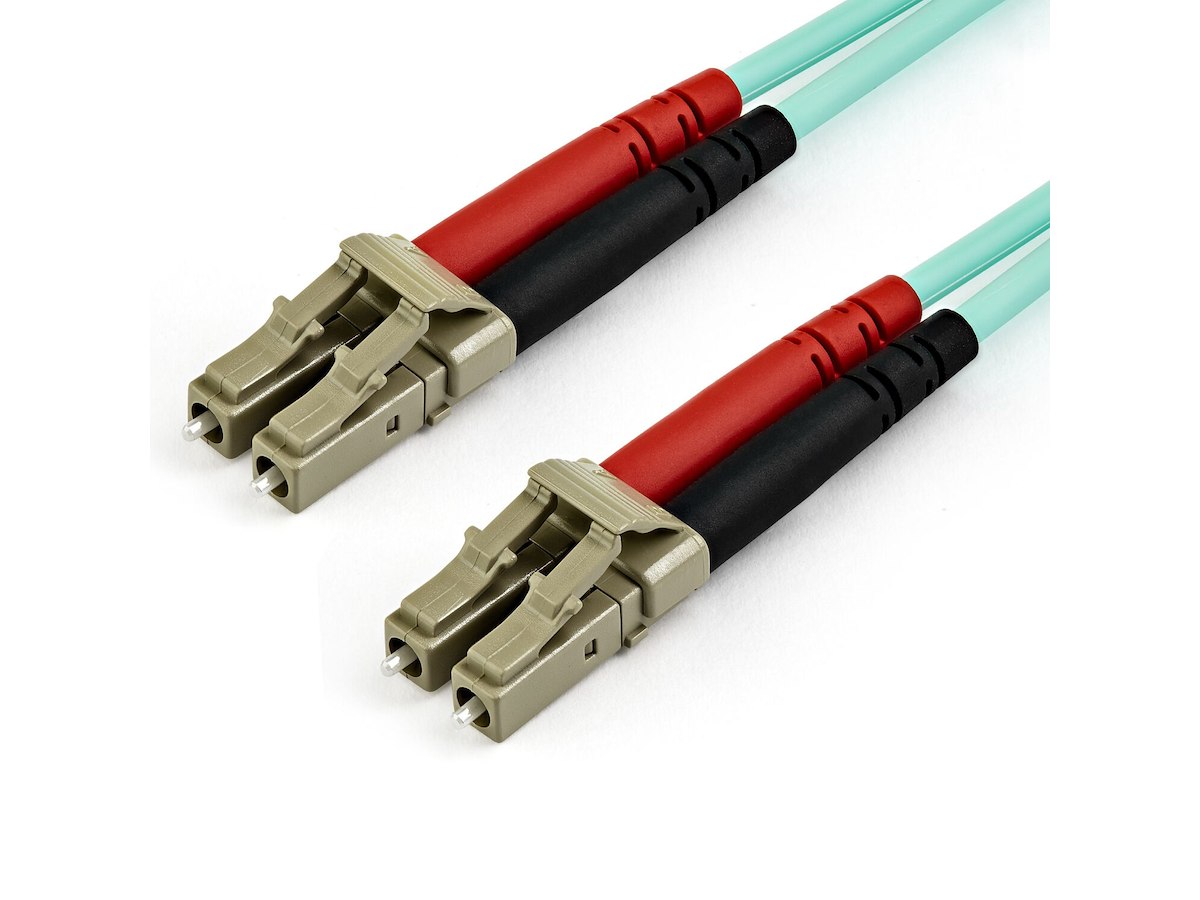

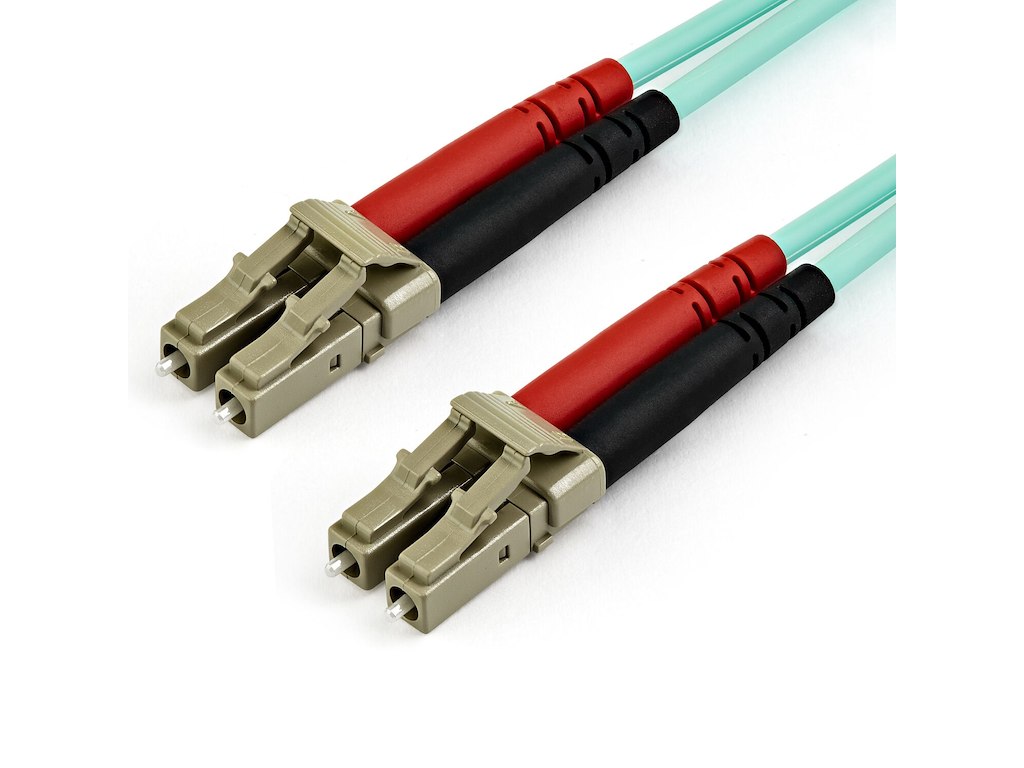

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.
Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 7 m |
Stik 1 | LC |
Stik 2 | LC |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Turkisfarve |
Materiale for kapper | Lav røg ingen halogen (LSZH) |
Fiberoptisk type | OM3 |
Fuld duplex | Ja |
Kernediameter | 50 µm |
Beklædning diameter | 125 µm |
Fibertilstandsstruktur | Multitilstand |
Bølgelængder understøttet | 850 nm |
Dataoverførselshastighed | 100 Gbit/sek. |
Tekniske detaljer | |
Indeholder ikke | Halogen |
Compliance-certifikater | RoHS, CE |
Driftsbetingelser | |
Driftstemperatur (T-T) | -20 - 60 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Vægt & størrelser | |
Vægt | 96 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 215 mm |
Pakkedybde | 200 mm |
Pakkehøjde | 20 mm |
Pakkevægt | 106 g |
Logistik data | |
Hovedkassens bredde (udvendigt) | 410 mm |
Harmoniseret systemkode (HS) | 85447000 |
Hovedkassens længde (udvendigt) | 410 mm |
Hovedkassen højde (udvendigt) | 435 mm |
Produkter pr. hovedkasse (udvendigt) | 120 stk |
