Connects a server or PC with a C20 plug to a PDU or UPS with C13 outlets.
Power Cord Connects Equipment in Small Data Centers to Reliable AC Power

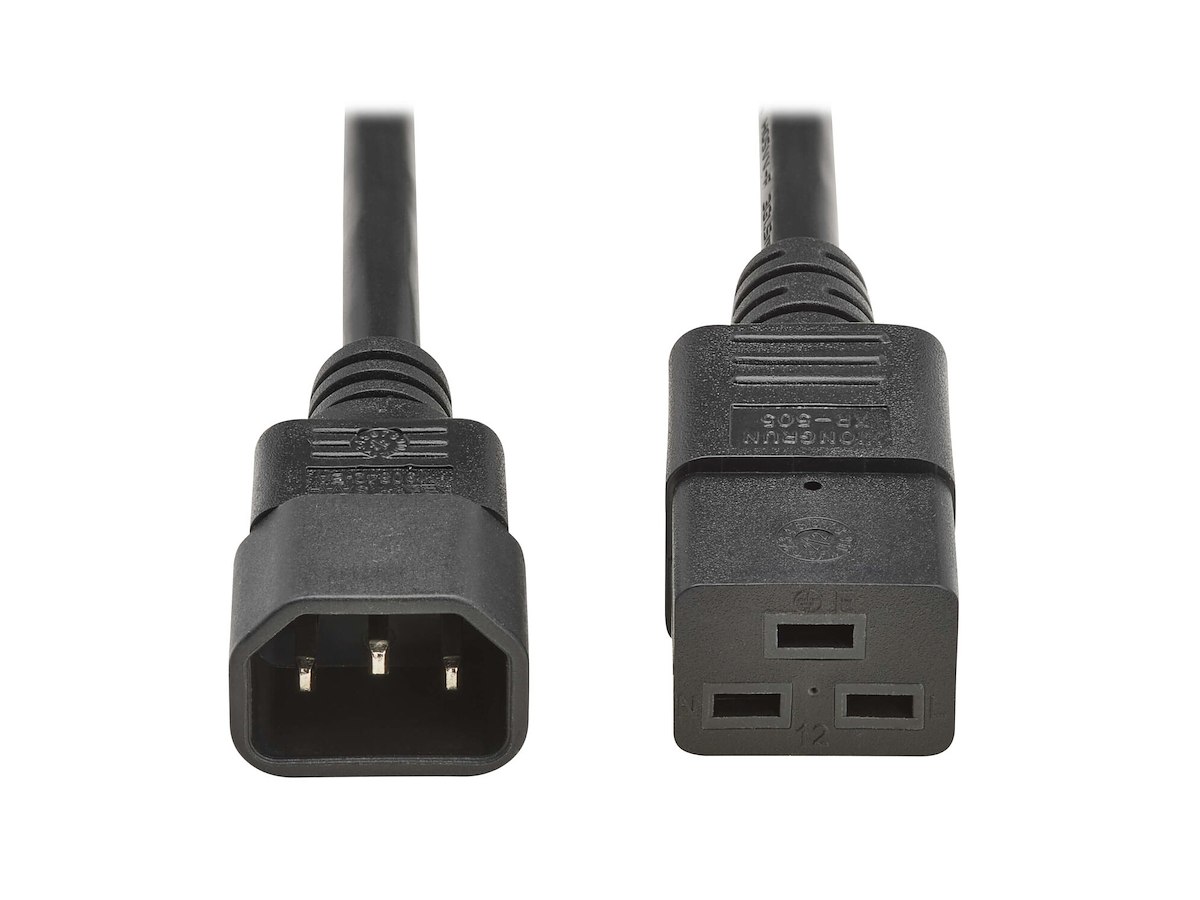

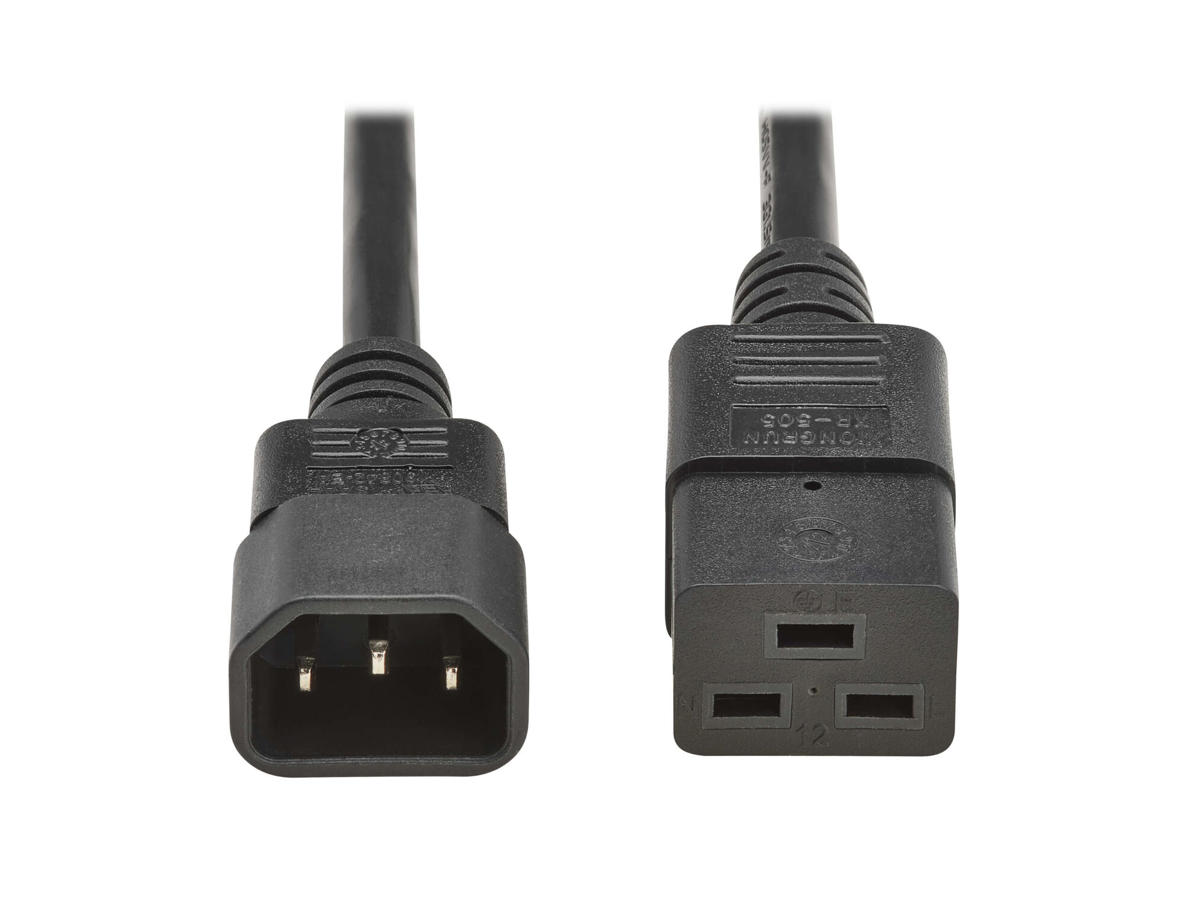

This VDE-compliant power cable connects a computer, server, hard drive or other device with a C20 plug to a PDU, UPS system or surge protector with C13 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P047-02M-EU features an IEC-320-C14 end for connecting to an AC power source and an IEC-320-C19 end for connecting to a device in a small data center or office workstation application that does not require a heavy-gauge connection.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 1.5mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
Funktioner | |
Produktfarve | Sort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Kabellængde | 2 m |
Stik 1 | IEC C14 |
Stik 2 | IEC C19 |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Materiale for kapper | Polyvinylchlorid (PVC) |
AWG-ledningsstørrelse | 16 |
Kabeltype | H05VV-F |
Antal ledere | 3 |
Certificering | CE (Europe); REACH; RoHS; UKCA |
Strømstyring | |
Indgangsspænding | 100-250 V |
Indgangsstrøm | 10 A |
Driftsbetingelser | |
Driftstemperatur (T-T) | -15 - 70 °C |
Opbevaringstemperatur (T-T) | -15 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 20 - 80% |
Vægt & størrelser | |
Diameter | 8,2 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 178 mm |
Pakkedybde | 13 mm |
Pakkehøjde | 279 mm |
Pakkevægt | 331 g |
