Connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet.
Power Cord Connects Data Center Equipment to Reliable AC Power

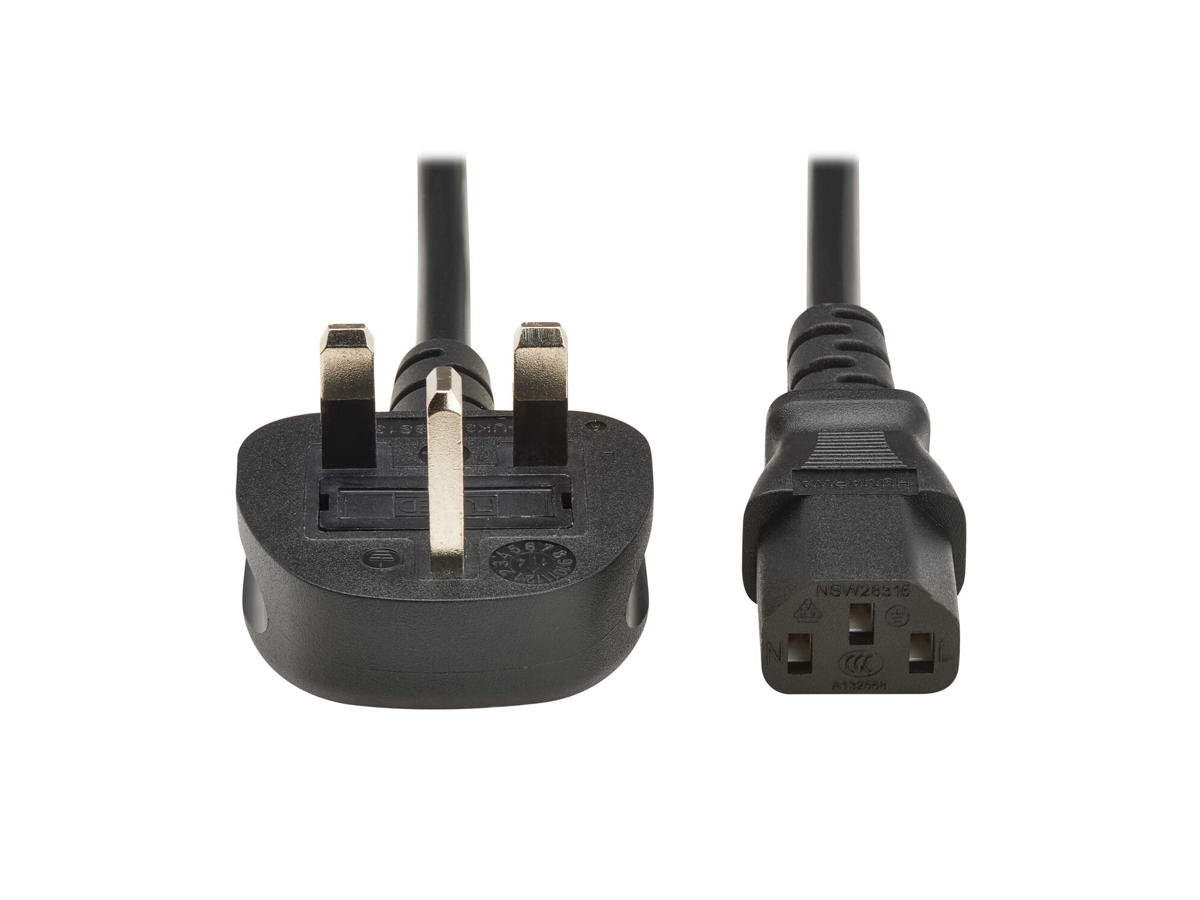

This VDE-compliant power cable connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet. It can also connect a computer, server, monitor or other device to a PDU, UPS or surge protector with BS 1363 outlets. Or you can extend an existing power connection up to two meters (6.6 feet). The P056-02M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
Funktioner | |
Produktfarve | Sort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Kabellængde | 2 m |
Stik 1 | BS 1363 |
Stik 2 | IEC C13 |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Materiale for kapper | Polyvinylchlorid (PVC) |
AWG-ledningsstørrelse | 24 |
Kabeltype | H05VV-F |
Antal ledere | 3 |
Certificering | CE (Europe); REACH; RoHS; UKCA |
Strømstyring | |
Indgangsspænding | 250 V |
Indgangsstrøm | 10 A |
Driftsbetingelser | |
Driftstemperatur (T-T) | -15 - 70 °C |
Opbevaringstemperatur (T-T) | -15 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 20 - 80% |
Vægt & størrelser | |
Diameter | 6,7 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 178,1 mm |
Pakkedybde | 12,7 mm |
Pakkehøjde | 229,1 mm |
Pakkevægt | 330 g |
