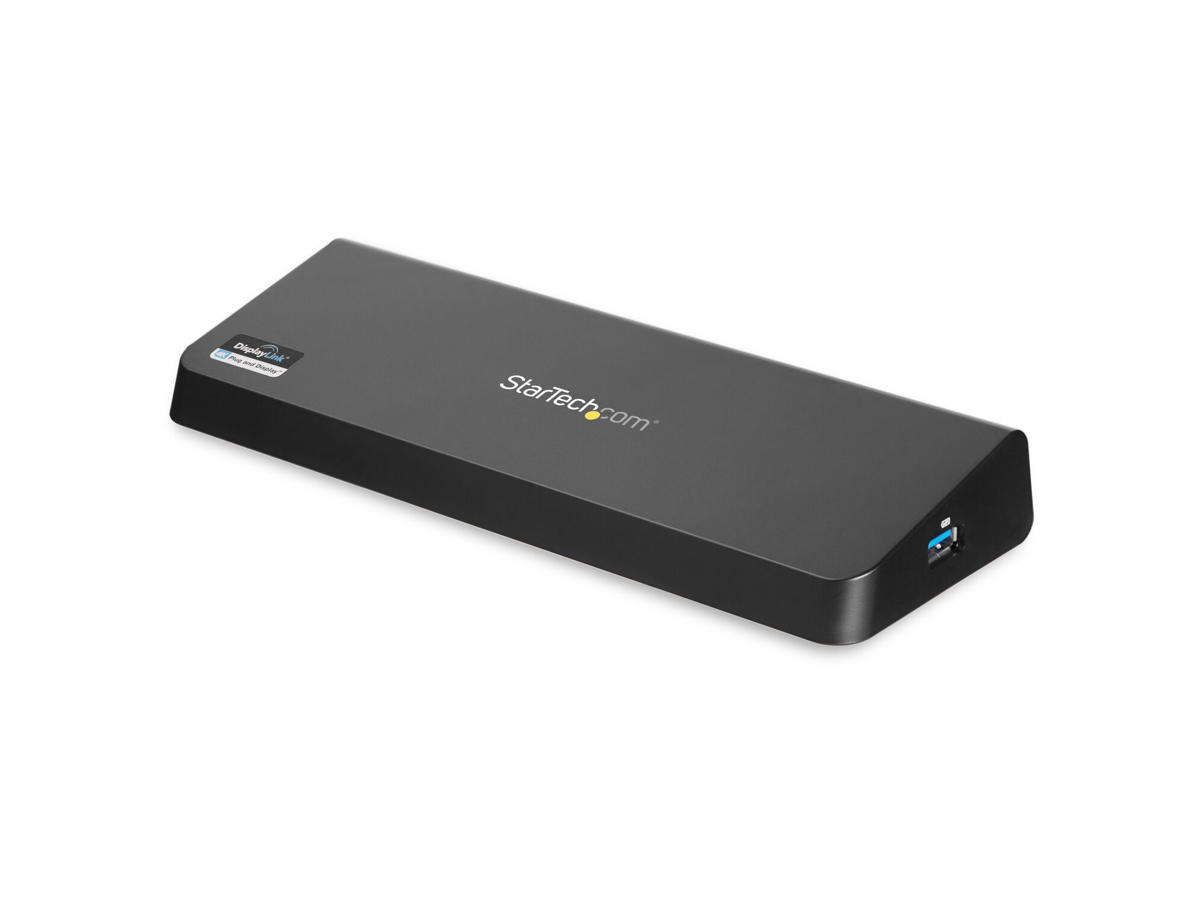

Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge
The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
Antal HDMI-porte | 1 |
Udgange til hovedtelefoner | 1 |
Antal DisplayPorts | 1 |
Tilslutning af hovedtelefoner | 3,5 mm |
USB-stik type | USB Type-A |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Wake-on-LAN klar | Ja |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Auto MDI/MDI-X | Ja |
Fuld duplex | Ja |
Præstation | |
Produktfarve | Sort |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 3840 x 2160 pixel |
Slot til kabellås | Ja |
LED-indikatorer | Aktivitet, Link |
Funktion for opladning | Ja |
Understøtter UASP | Ja |
Husmateriale | Plast, Stål |
Mærke kompatibilitet | Alle mærker |
Certificering | CE, FCC, DisplayLink |
Strømstyring | |
Vekselstrømsindgangsspænding | 100-240 V |
Indgangsstrøm | 1.5 A |
Udgangsspænding | 5 V |
Udgangsstrøm | 6,5 A |
Strømforbrug (typisk) | 32,5 W |
Kompatible strømplug typer | AU, EU, UK, US |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Mac kompabilitet | Ja |
Understøttede Mac-operativsystemer | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Andre understøttede operativsystemer | ChromeOS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 80 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Vægt & størrelser | |
Bredde | 76 mm |
Dybde | 227 mm |
Højde | 24 mm |
Vægt | 277 g |
Emballeringsdata | |
Pakkebredde | 251 mm |
Pakkedybde | 198 mm |
Pakkehøjde | 71 mm |
Pakkevægt | 1,1 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, USB |
AC-adapter inkluderet | Ja |
Brugervejledning | Ja |
Drivere inkluderet | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
Hovedkassens bredde (udvendigt) | 390 mm |
Hovedkassens længde (udvendigt) | 426 mm |
Hovedkassen højde (udvendigt) | 302 mm |
Produkter pr. forsendelseskasse (indvendig) | 150 stk |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Kabellængde | 0,6 m |
Chipsæt | DisplayLink - DL-5900, VLI - VL812 |
USB-dataoverførselshastigheder | 5000 Mbit/s |
