Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

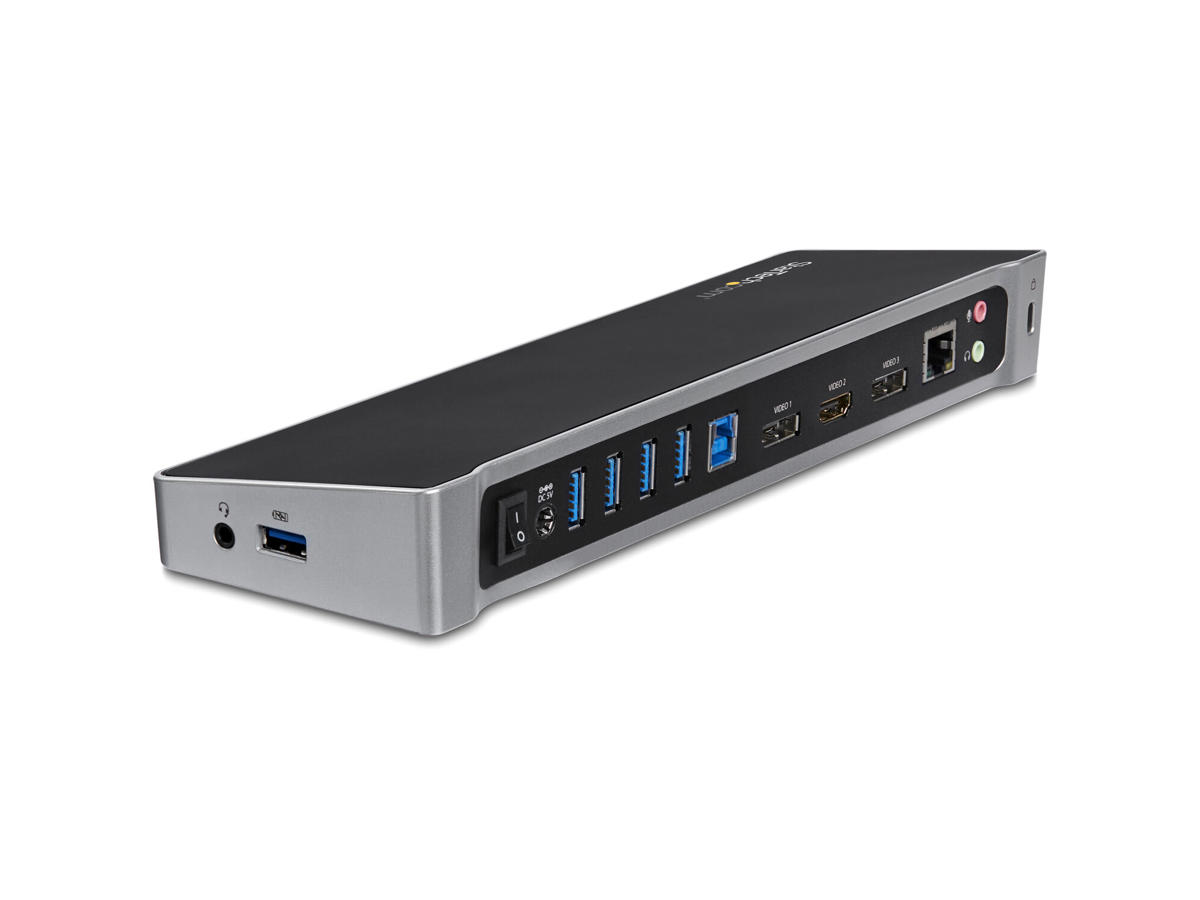

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.
Triple Display Flexibility
The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.
Powerful Connections and Fast Device Charging
To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.
The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 5 |
Antal HDMI-porte | 1 |
Mikrofonindgang | Ja |
Udgange til hovedtelefoner | 2 |
Antal DisplayPorts | 2 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
USB-stik type | USB Type-A |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Wake-on-LAN klar | Ja |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Auto MDI/MDI-X | Ja |
Fuld duplex | Ja |
Præstation | |
Produktfarve | Sort, Sølv |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 3840 x 2160 pixel |
Slot til kabellås | Ja |
LED-indikatorer | Aktivitet, Link |
Understøtter UASP | Ja |
Husmateriale | Plast |
Mærke kompatibilitet | Alle mærker |
Certificering | CE, FCC, DisplayLink, TAA, REACH |
Strømstyring | |
Vekselstrømsindgangsspænding | 100-240 V |
Indgangsstrøm | 1.5 A |
Udgangsspænding | 5 V |
Udgangsstrøm | 6,5 A |
Strømforbrug (typisk) | 32,5 W |
Strømstiktype | Type N |
Kompatible strømplug typer | AU, EU, UK, US |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Mac kompabilitet | Ja |
Understøttede Mac-operativsystemer | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Andre understøttede operativsystemer | ChromeOS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 80 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Vægt & størrelser | |
Bredde | 82 mm |
Dybde | 270 mm |
Højde | 34 mm |
Vægt | 376 g |
Emballeringsdata | |
Pakkebredde | 296 mm |
Pakkedybde | 164 mm |
Pakkehøjde | 71 mm |
Pakkevægt | 1,03 kg |
Emballage indhold | |
Kabler inkluderet | USB |
AC-adapter inkluderet | Ja |
Brugervejledning | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
Hovedkassens bredde (udvendigt) | 363 mm |
Hovedkassens længde (udvendigt) | 373 mm |
Hovedkassen højde (udvendigt) | 395 mm |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Chipsæt | DisplayLink - DL-5910, VLI - VL812 |
Antal mikrofon-indgange | 1 |
USB-dataoverførselshastigheder | 5000 Mbit/s |
