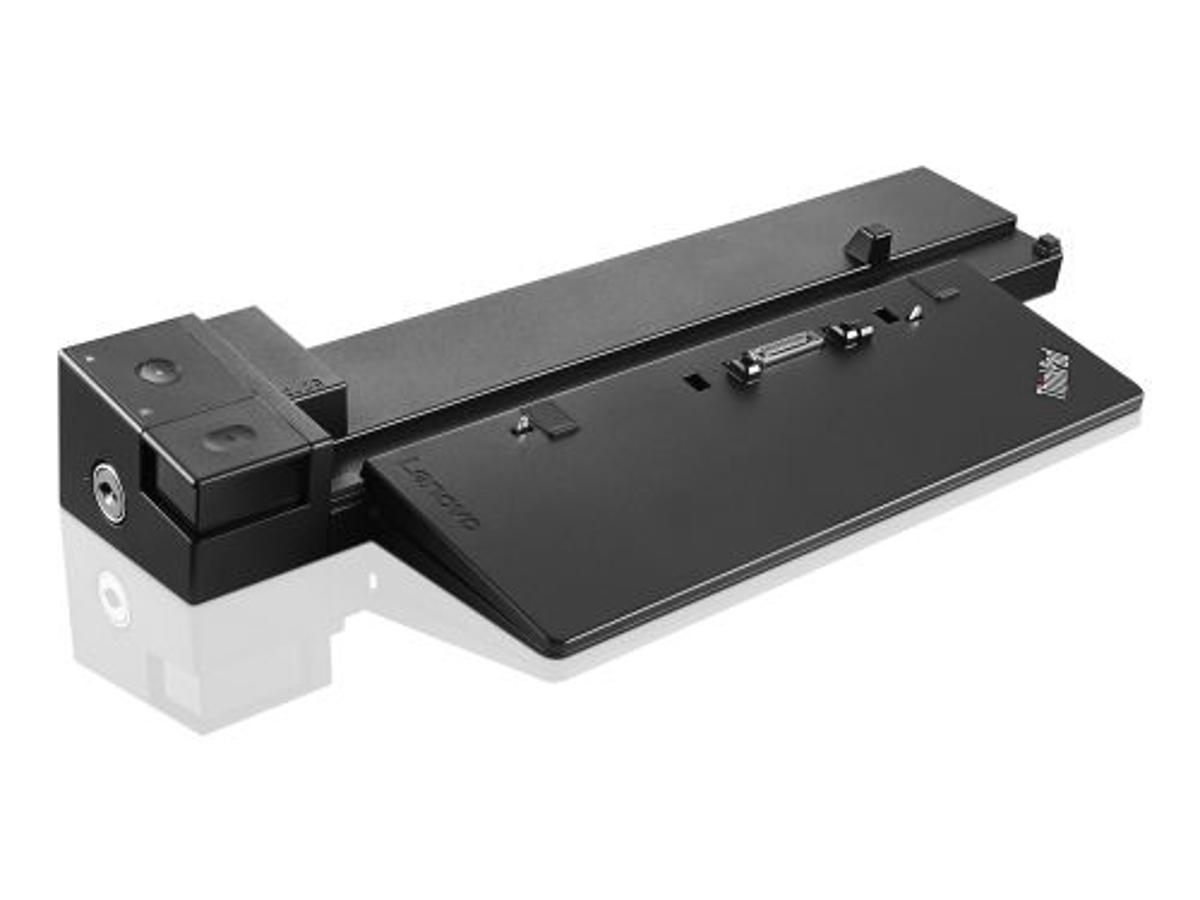

The completely redesigned and supercharged ThinkPad Workstation Dock with included ThinkPad 230W AC adapter enhances your work capability with multiple connectivity options. As the ultimate multi-port docking solution, the ThinkPad Workstation Dock includes a range of video outputs, including HDMI 1.4, and DP 1.2 to support multiple external monitors delivering outstanding driver free video quality.
With an enlarged support base, the Workstation Dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230W AC adapter to power and charge your mobile workstation notebook.
Porte & Grænseflader | |
Forbindelsesteknologi | Docking |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 6 |
Antal HDMI-porte | 1 |
Mikrofonindgang | Ingen |
HDMI-version | 1.4 |
Antal VGA-porte (D-sub) | 1 |
Antal DisplayPorts | 2 |
Antal DVI-D-porte | 1 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Præstation | |
Produktfarve | Sort |
Indbygget kortlæser | Ingen |
Maksimal digital opløsning | 3840 x 2160 pixel |
Antal understøttede skærme | 3 |
Slot til kabellås | Ja |
Mærke kompatibilitet | Lenovo |
Kapabilitet | ThinkPad P50/P70 |
Certificering | AS / NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC |
Strømstyring | |
Strømkilde type | Vekselstrøm |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Software | |
Understøttede Windows-operativsystemer | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 43 °C |
Relativ luftfugtighed ved drift (H-H) | 8 - 95% |
Vægt & størrelser | |
Bredde | 402,2 mm |
Dybde | 165,4 mm |
Højde | 55,6 mm |
Vægt | 980 g |
Emballeringsdata | |
Pakkebredde | 443 mm |
Pakkedybde | 215 mm |
Pakkehøjde | 112 mm |
Pakkevægt | 2,64 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Brugervejledning | Ja |
