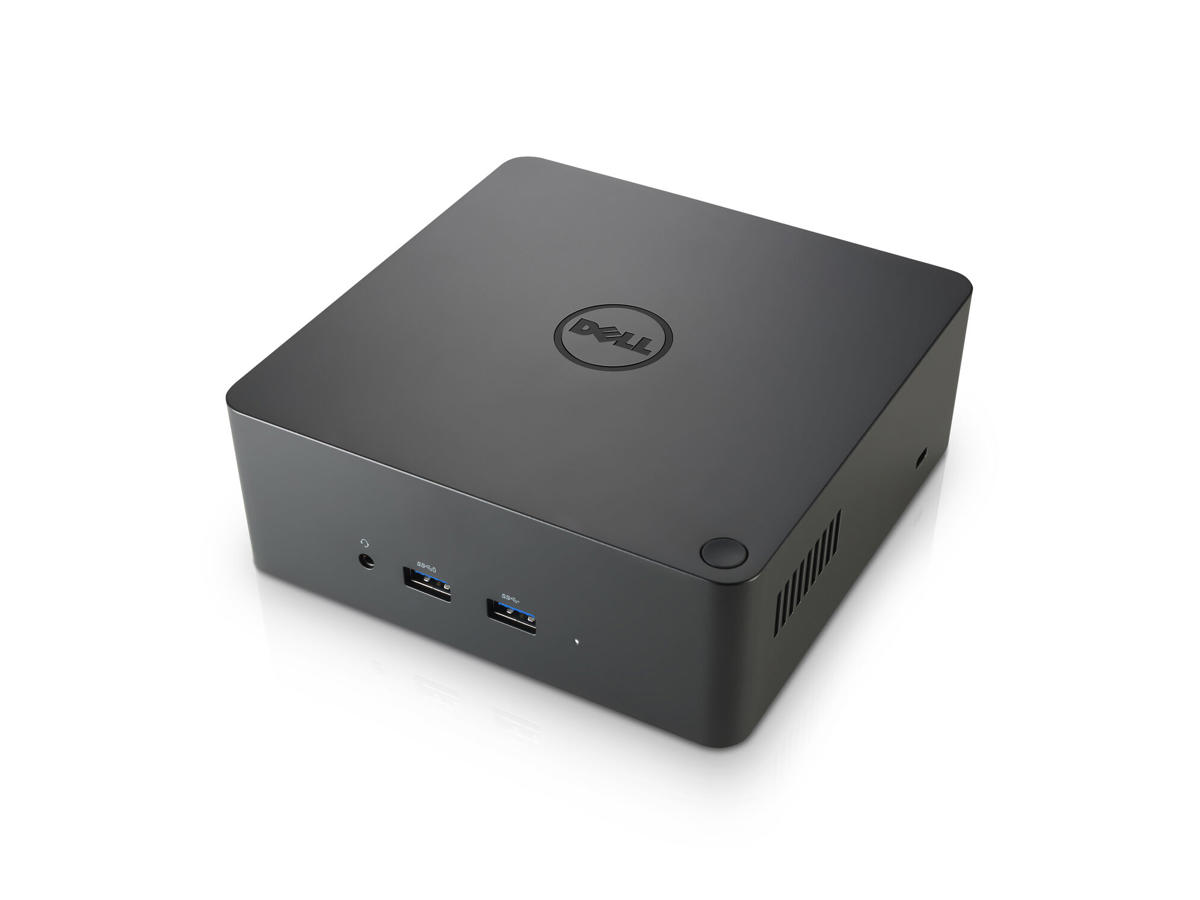

The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace. * While Dell has committed to ensuring the TB16 meets open standards, 3rd party OEMs can limit compatibility
One dock. One cable. Ultimate Performance.
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Small footprint and big flexibility
The Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
One source for power
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | Thunderbolt 3 |
Antal USB 2.0-porte | 2 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal HDMI-porte | 1 |
Mikrofonindgang | Ingen |
HDMI-version | 1.4a |
Antal VGA-porte (D-sub) | 1 |
Antal DisplayPorts | 1 |
Antal mini DisplayPorts | 1 |
Antal Thunderbolt 3-porte | 1 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
Linie ud | Ja |
USB-stik type | USB Type-A, USB Type-C |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Præstation | |
Produktfarve | Sort |
Indbygget kortlæser | Ingen |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
LED-indikatorer | Ja |
Mærke kompatibilitet | Dell |
Kapabilitet | - Latitude 7275 - Latitude 7280 - Latitude 7370 - Latitude 7480 |
Strømstyring | |
Strømkilde type | Vekselstrøm |
Strømforsyning | 180 W |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Understøttede Linux-operativsystemer | Ubuntu 14.04 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 35 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 145 mm |
Dybde | 145 mm |
Højde | 52 mm |
Vægt | 720 g |
Emballage indhold | |
Kabler inkluderet | Thunderbolt |
AC-adapter inkluderet | Ja |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 84733020 |
