Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot
Transition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

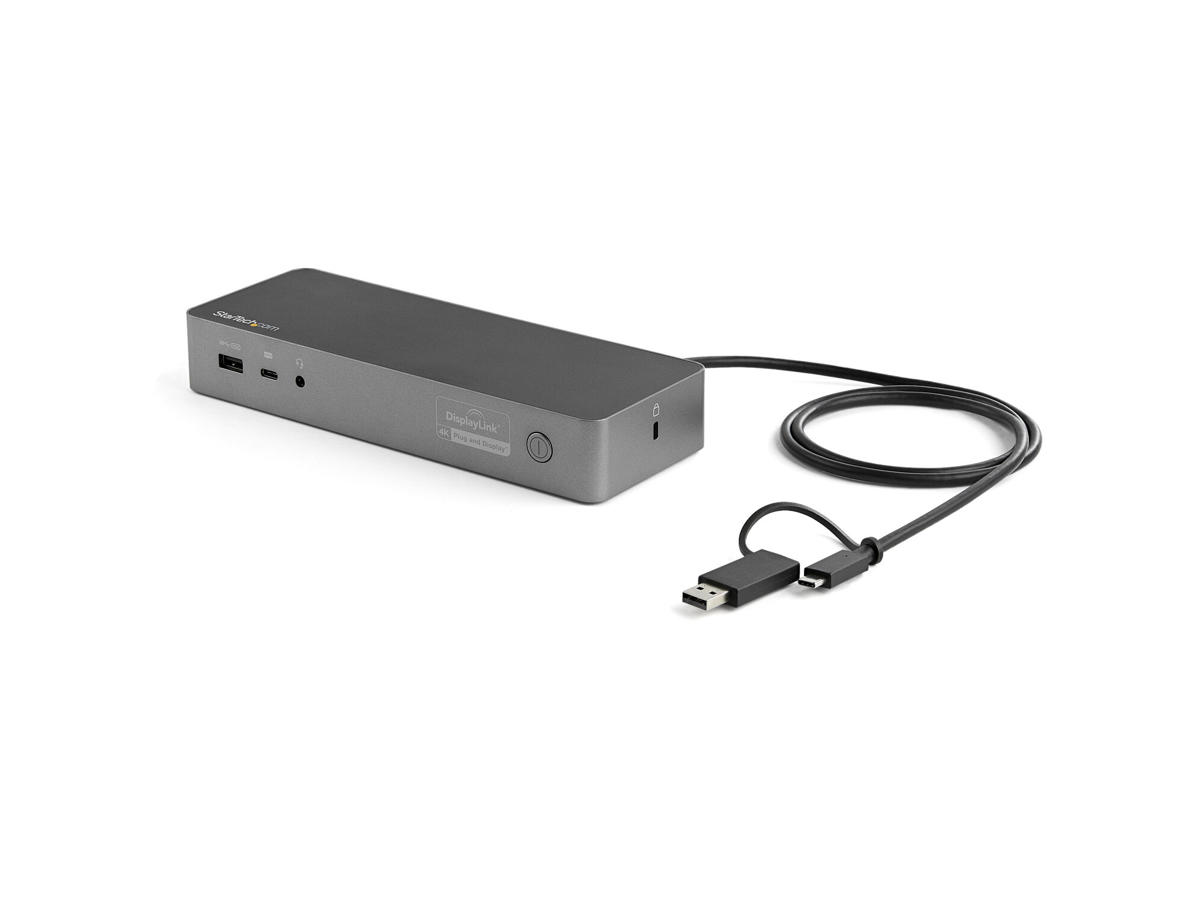

The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.
Replacement or extra cables can be purchased separately here.
100W Power Delivery
For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 150W power adapter - all through a single cable.
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
•
Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
•
Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
•
Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
•
Single 5K DisplayPort * | Up to 5120 × 2880
*Requires monitor support for 5K using two DP ports
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).
The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The IT Pro's Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
DK30C2DPEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal HDMI-porte | 2 |
Udgange til hovedtelefoner | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
Antal DisplayPorts | 2 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Fuld duplex | Ja |
10G understøttelse | Ingen |
Præstation | |
Produktfarve | Sort, Grå |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 5120 x 2880 pixel |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Tænd-/slukkontakt | Ja |
Understøtter UASP | Ja |
Husmateriale | Plast |
Certificering | CE, FCC, REACH |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 2.5 A |
Strømforsyning | 100 W |
Udgangsspænding | 20 V |
Udgangsstrøm | 8,5 A |
Strømforbrug (typisk) | 170 W |
Strømstiktype | Type N |
Kompatible strømplug typer | EU, UK |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac kompabilitet | Ja |
Understøttede Mac-operativsystemer | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Andre understøttede operativsystemer | ChromeOS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
Vægt & størrelser | |
Bredde | 80 mm |
Dybde | 220 mm |
Højde | 30 mm |
Vægt | 280 g |
Emballeringsdata | |
Pakkebredde | 155 mm |
Pakkedybde | 270 mm |
Pakkehøjde | 90 mm |
Pakkevægt | 1,3 kg |
Emballage indhold | |
Kabler inkluderet | USB Type-A til USB Type-C |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 6 stk |
Hovedkassens bredde (udvendigt) | 280 mm |
Hovedkassens længde (udvendigt) | 335 mm |
Hovedkassen højde (udvendigt) | 302 mm |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Chipsæt | DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E |
