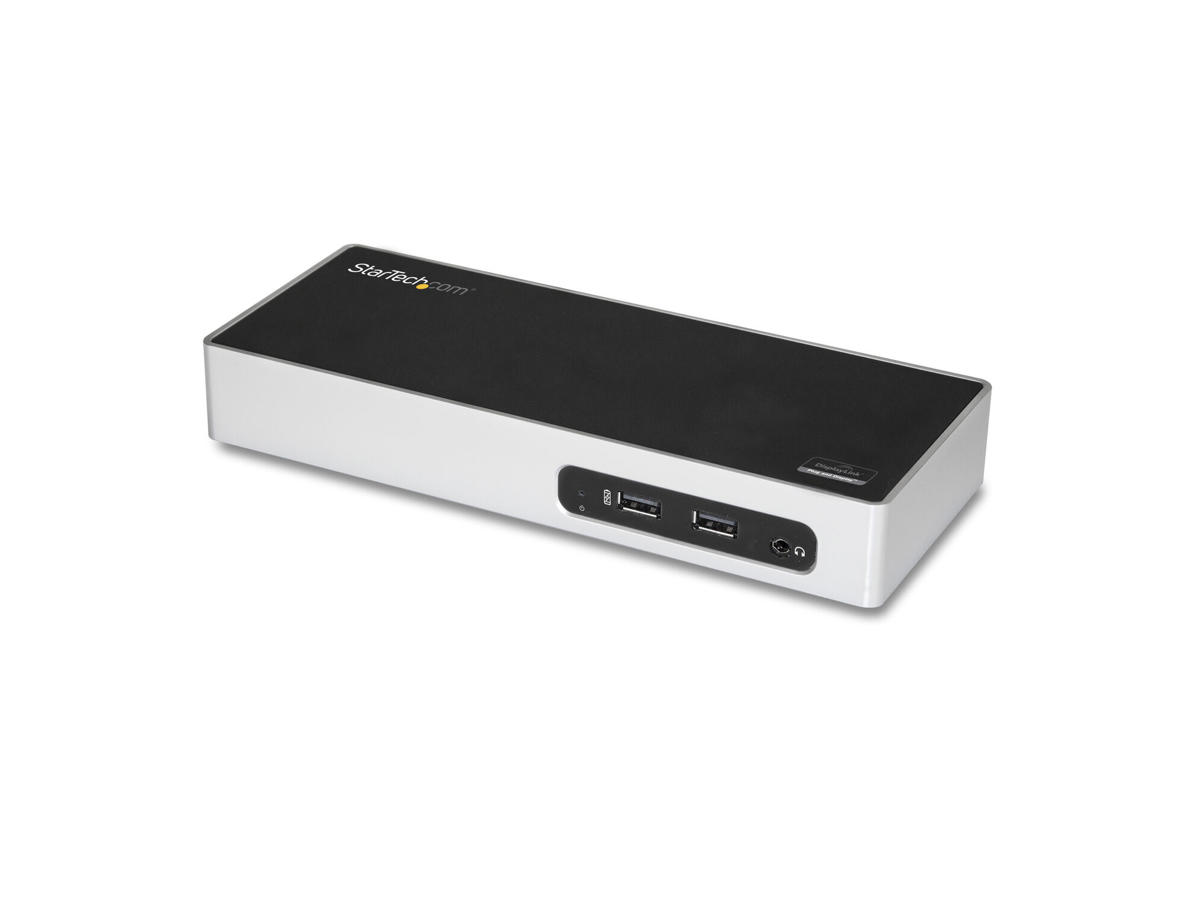

Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need
Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 6 |
Antal HDMI-porte | 1 |
Udgange til hovedtelefoner | 1 |
Antal DVI-I-porte | 1 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Wake-on-LAN klar | Ja |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Auto MDI/MDI-X | Ja |
Fuld duplex | Ja |
Præstation | |
Produktfarve | Sort, Sølv |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 2048 x 1152 pixel |
Antal understøttede skærme | 2 |
Tænd-/slukkontakt | Ja |
LED-indikatorer | Strøm |
Understøtter UASP | Ja |
Husmateriale | Plast |
Mærke kompatibilitet | Alle mærker |
Certificering | CE, FCC, DisplayLink, REACH |
Strømstyring | |
Strømkilde type | Vekselstrøm |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 1 A |
Udgangsspænding | 20 V |
Udgangsstrøm | 2 A |
Strømforbrug (typisk) | 40 W |
Strømstiktype | Type N |
Kompatible strømplug typer | AU, EU, JP, UK, US |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Understøttede Mac-operativsystemer | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 86,2 mm |
Dybde | 216 mm |
Højde | 31 mm |
Vægt | 291 g |
Emballeringsdata | |
Pakkebredde | 140 mm |
Pakkedybde | 307 mm |
Pakkehøjde | 60 mm |
Pakkevægt | 800 g |
Emballage indhold | |
Kabler inkluderet | USB |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
Hovedkassens bredde (udvendigt) | 315 mm |
Hovedkassens længde (udvendigt) | 325 mm |
Hovedkassen højde (udvendigt) | 295 mm |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Kabellængde | 1 m |
Chipsæt | DisplayLink - DL-3900, VIA/VLI - VL813 |
