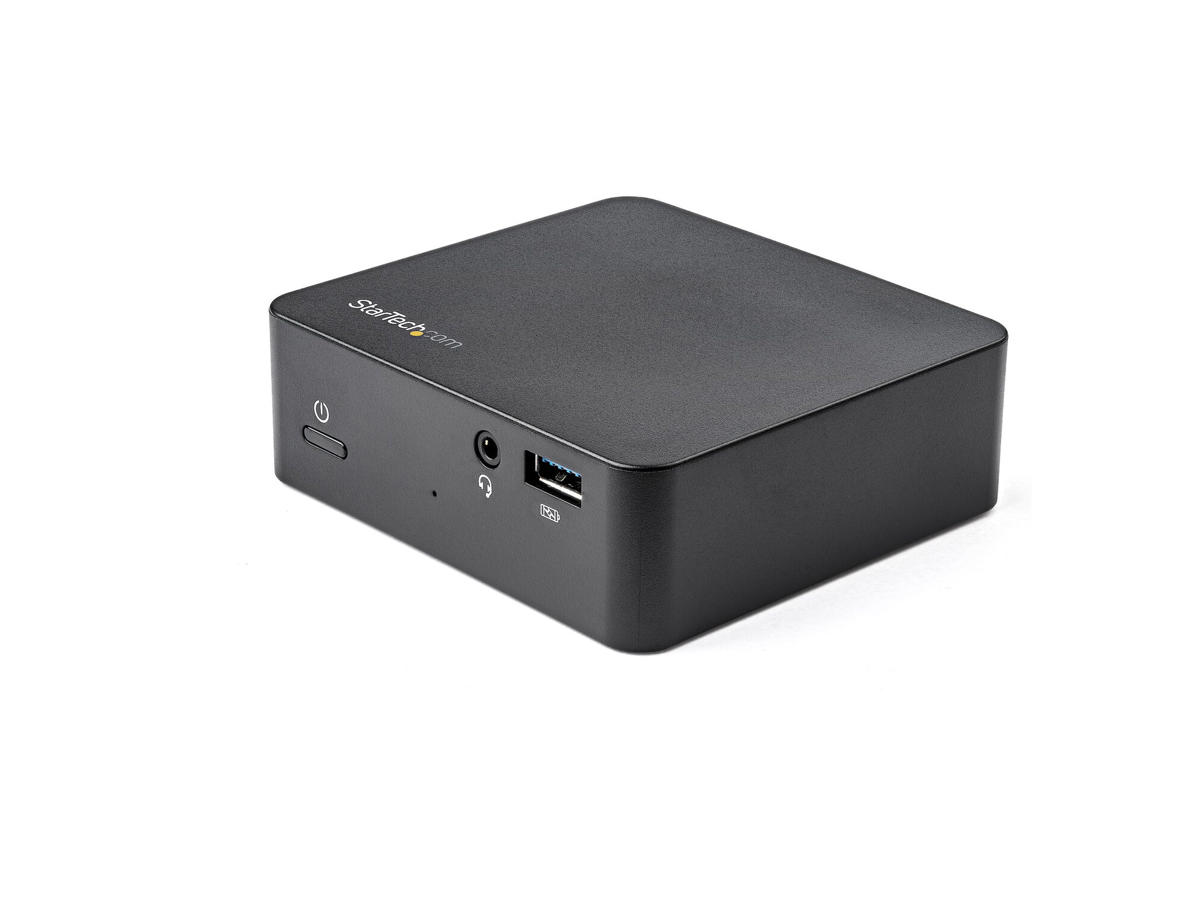

Power and charge your laptop through USB Type-C, and create a workstation virtually anywhere you go by adding 4K HDMI display, plus GbE, and four USB 3.0 ports
This USB-C dock gives you all the connections you need to turn your USB-C enabled laptop or tablet into a fully capable workstation, with support for a single external 4K HDMI monitor or ultrawide monitor. With USB Power Delivery 2.0 (85W), you can power and charge your laptop as you work, eliminating the need to use a separate power adapter with your laptop. It’s the perfect companion for your MacBook Pro or other Thunderbolt 3 equipped laptop or tablet.
Create a 4K HDMI workstation
The USB-C dock helps you maximize your workspace, ideal for smaller or shared work areas using one monitor. The dock expands the display capabilities of your laptop, connecting to an HDMI display with support for resolutions including: 4096x2160 @ 30Hz, 3840 x 2160 @ 30Hz, 2560x1600 @60 Hz, 1920 x 1200 @ 60Hz.
Create an immersive experience by connecting the USB-C dock to an ultrawide or ultrawide curved monitor with 21:9 aspect ratio (3440 x 1440p @ 60 Hz), to emulate a multi-display set-up and gain exceptional picture quality.
Ample connections
The dock provides four USB 3.0 (Type-A) ports to connect peripherals such as your mouse or keyboard. It also includes a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port (with PXE Boot support), and a combined 3.5 mm audio and microphone port.
Universal support
Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.
The DK30CHDPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- COMPACT FULL FEATURE DOCK: This USB-C dock features single 4K 30Hz HDMI video, 85W PD, 4x USB-A 3.0 (5Gbps) ports (1 fast charge), Gigabit Ethernet, a headset/audio port & 1m/3.3 ft USB-C cable
- WIDE DEVICE COMPATIBILITY: USB C dock supports USB-C/Thunderbolt 3 (TB3) laptops like HP, Dell, Lenovo, Surface Laptop 3 & Pro 7, Chromebook, MacBook Pro, MacBook Air, iPad Pro, Samsung, Google Pixel
- 85W POWER DELIVERY: The USB 3.1 Gen 1 Type-C docking station will quickly charge workstation laptops like Lenovo ThinkPad P Series, HP Z Books & MacBook Pro 15/16, where more power is required
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
Antal HDMI-porte | 1 |
Udgange til hovedtelefoner | 1 |
USB strømforsyning | Ja |
USB strømforsyning revision | 2.0 |
USB strømforsyning op til | 100 W |
Tilslutning af hovedtelefoner | 3,5 mm |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Auto MDI/MDI-X | Ja |
Fuld duplex | Ja |
10G understøttelse | Ingen |
Præstation | |
Produktfarve | Sort |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 4096 x 2160 pixel |
Tænd-/slukkontakt | Ja |
Understøtter UASP | Ja |
Husmateriale | Plast |
Certificering | CE, FCC, REACH |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 2 A |
Udgangsspænding | 20 V |
Udgangsstrøm | 5 A |
Strømforbrug (typisk) | 100 W |
Strømstiktype | Type N |
Kompatible strømplug typer | EU, UK |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac kompabilitet | Ja |
Understøttede Mac-operativsystemer | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 91 mm |
Dybde | 98 mm |
Højde | 32 mm |
Vægt | 200 g |
Emballeringsdata | |
Pakkebredde | 185 mm |
Pakkedybde | 165 mm |
Pakkehøjde | 95 mm |
Pakkevægt | 1 kg |
Emballage indhold | |
Kabler inkluderet | USB Type-C |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 6 stk |
Hovedkassens bredde (udvendigt) | 200 mm |
Hovedkassens længde (udvendigt) | 310 mm |
Hovedkassen højde (udvendigt) | 360 mm |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Chipsæt | Parade - PS176, Realtek - RTL8153, Realtek - RTS5411, C-Media - CM6533 |
