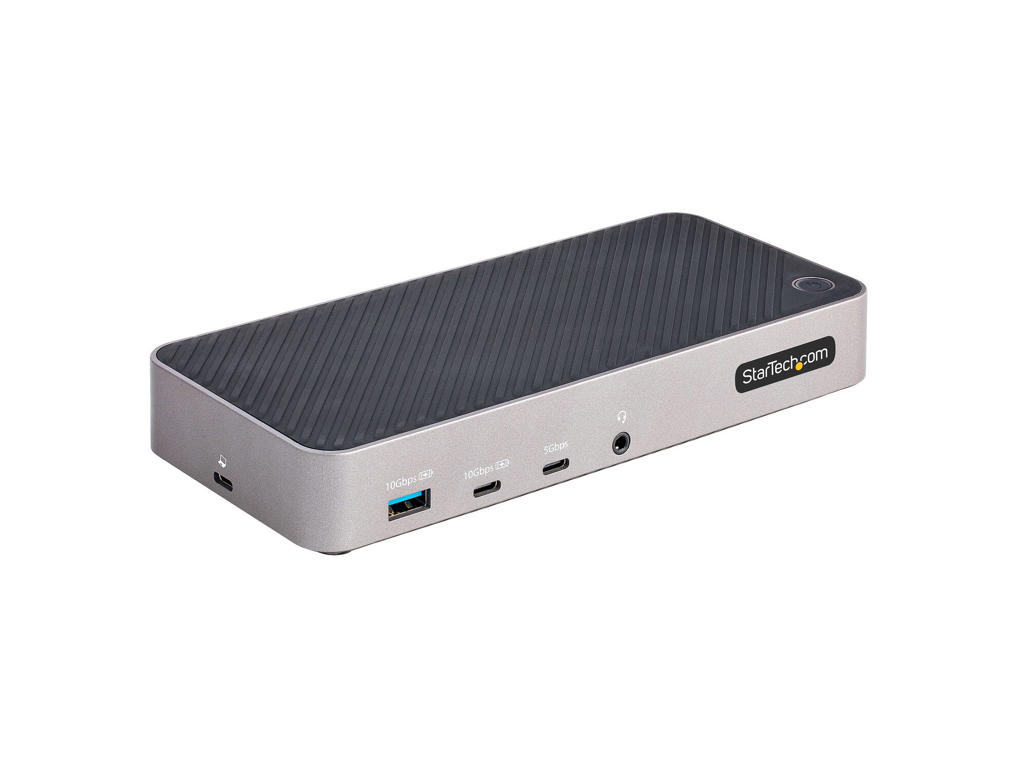

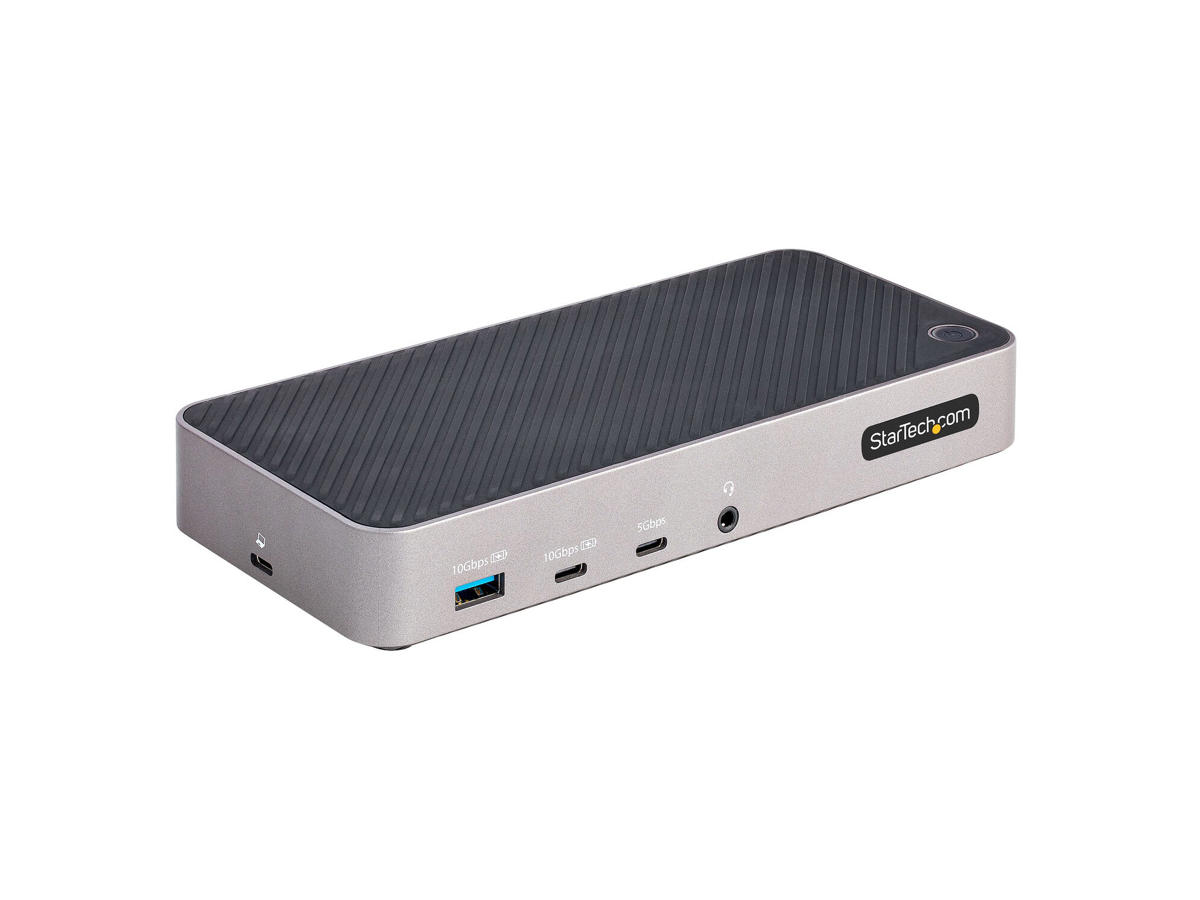

This USB-C Triple 4K Monitor Docking Station enables wide workstation flexibility, featuring compatibility with USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Triple-4K Video
This triple-4K docking station uses a combination of its integrated DisplayLink® graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays.
Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink®), at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.
Full-Featured Docking Station
Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:
- 2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
- 1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
- 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
- 1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.
100W USB Power Delivery
The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.
For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.
Easy Deployment
Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
Antal HDMI-porte | 3 |
Udgange til hovedtelefoner | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
USB strømforsyning | Ja |
USB strømforsyning revision | 3.0 |
USB strømforsyning op til | 100 W |
HDMI-version | 2.0 |
Antal DisplayPorts | 2 |
DisplayPort-version | 1.4 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
USB type-C DisplayPort alternativ tilstand | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Wake-on-LAN klar | Ja |
Netværksstandarder | IEEE 802.3ab |
Præstation | |
Produktfarve | Grå, Sølv |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 10 Gbit/sek. |
HD-type | 4K Ultra HD |
Maksimal digital opløsning | 4096 x 2160 pixel |
Maksimal opdateringshastighed | 60 Hz |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
LED-indikatorer | Strøm |
Husmateriale | Plast |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 2.5 A |
Udgangsspænding | 24 V |
Udgangsstrøm | 5,41 A |
Strømforbrug (typisk) | 15 W |
Strømstiktype | Type M |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Understøttede Mac-operativsystemer | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Understøttede Linux-operativsystemer | Ja |
Understøttede mobile operativsystemer | Android |
Andre understøttede operativsystemer | ChromeOS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 70 °C |
Opbevaringstemperatur (T-T) | -10 - 55 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 85% |
Vægt & størrelser | |
Bredde | 85 mm |
Dybde | 190 mm |
Højde | 30 mm |
Vægt | 350 g |
Emballeringsdata | |
Pakkebredde | 205 mm |
Pakkedybde | 250 mm |
Pakkehøjde | 50 mm |
Pakkevægt | 1,1 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, USB Type-C til USB Type-C |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
Hovedkassens bredde (udvendigt) | 280 mm |
Hovedkassens længde (udvendigt) | 430 mm |
Hovedkassen højde (udvendigt) | 290 mm |
Andre funktioner | |
Chipsæt | DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0 |
