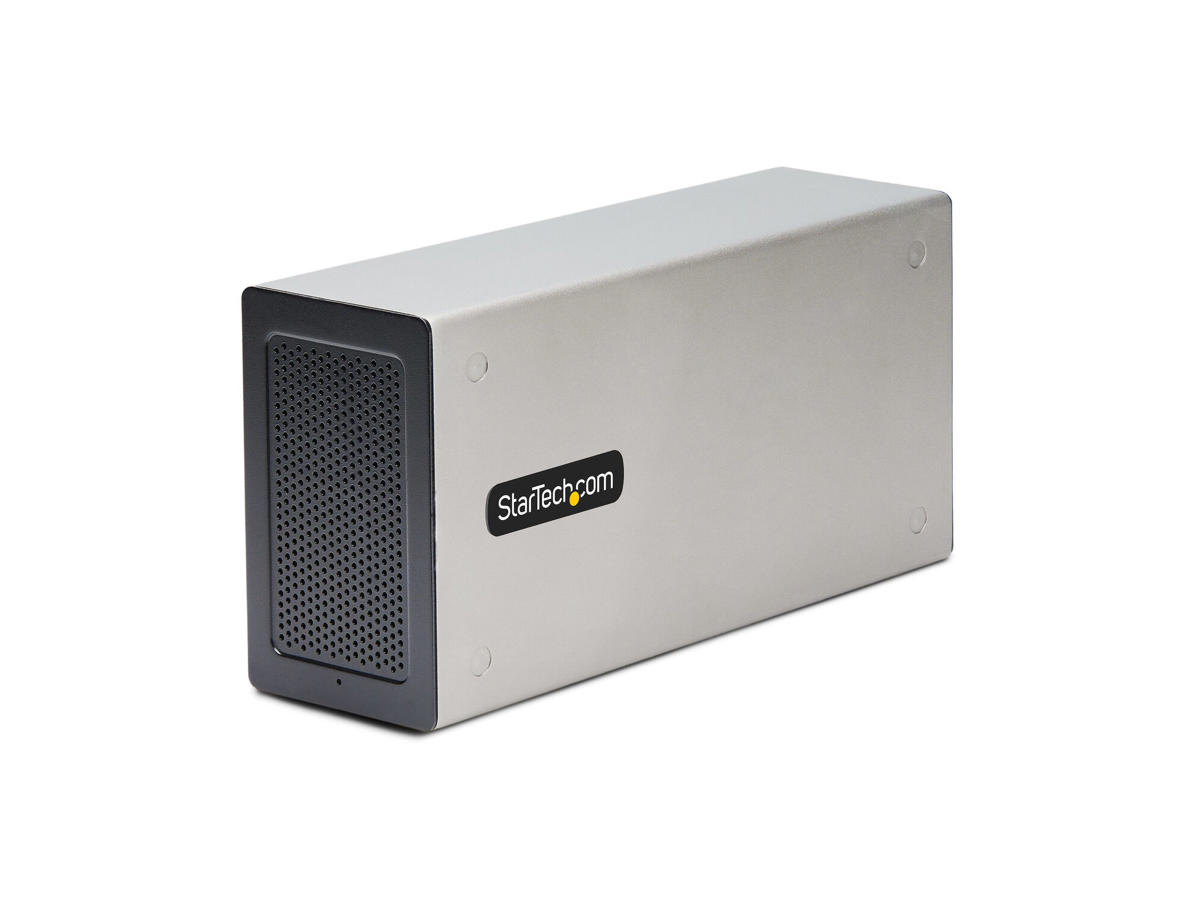

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.
Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.
Enhanced Computer Capabilities
Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.
Flexible Card Support
The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.
The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.
8K & 4K Monitor Support
Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).
Compatibility
The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.
The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.
Note: Some expansion cards installed in the chassis may require drivers to be installed.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | Thunderbolt 3 |
Mikrofonindgang | Ingen |
Antal DisplayPorts | 1 |
DisplayPort-version | 1.4 |
Antal Thunderbolt 3-porte | 2 |
PCI Express x16 slots | 2 |
PCIe-version | 3.0 |
Netværk | |
Ethernet LAN | Ingen |
Præstation | |
Produktfarve | Sølv |
Indbygget kortlæser | Ingen |
HD-type | 8K Ultra HD |
Antal understøttede skærme | 2 |
Maksimal opdateringshastighed | 60 Hz |
LED-indikatorer | Strøm |
Gummifødder | Ja |
Husmateriale | Aluminium |
Nedkøling | |
Indbygget ventilator | Ja |
Antal blæsere | 1 blæser(e) |
Ventilator diameter | 6 cm |
Strømstyring | |
Strømkilde type | DC |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 3 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 10 A |
Strømforbrug (maks.) | 120 W |
Kompatible strømplug typer | AU, EU, JP, UK, US |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Understøttede Mac-operativsystemer | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 65 °C |
Opbevaringstemperatur (T-T) | -20 - 65 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Vægt & størrelser | |
Bredde | 281 mm |
Dybde | 84 mm |
Højde | 142 mm |
Vægt | 1,6 kg |
Emballeringsdata | |
Pakkebredde | 285 mm |
Pakkedybde | 353 mm |
Pakkehøjde | 143 mm |
Pakkevægt | 3,4 kg |
Emballage indhold | |
Kabler inkluderet | Thunderbolt |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS, Lov om handelsaftaler (TAA) |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 3 stk |
Hovedkassens bredde (udvendigt) | 375 mm |
Hovedkassens længde (udvendigt) | 455 mm |
Hovedkassen højde (udvendigt) | 325 mm |
Andre funktioner | |
Chipsæt | Titan Ridge DSL7440 (x2), Ti TPS65983B (x2) |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
