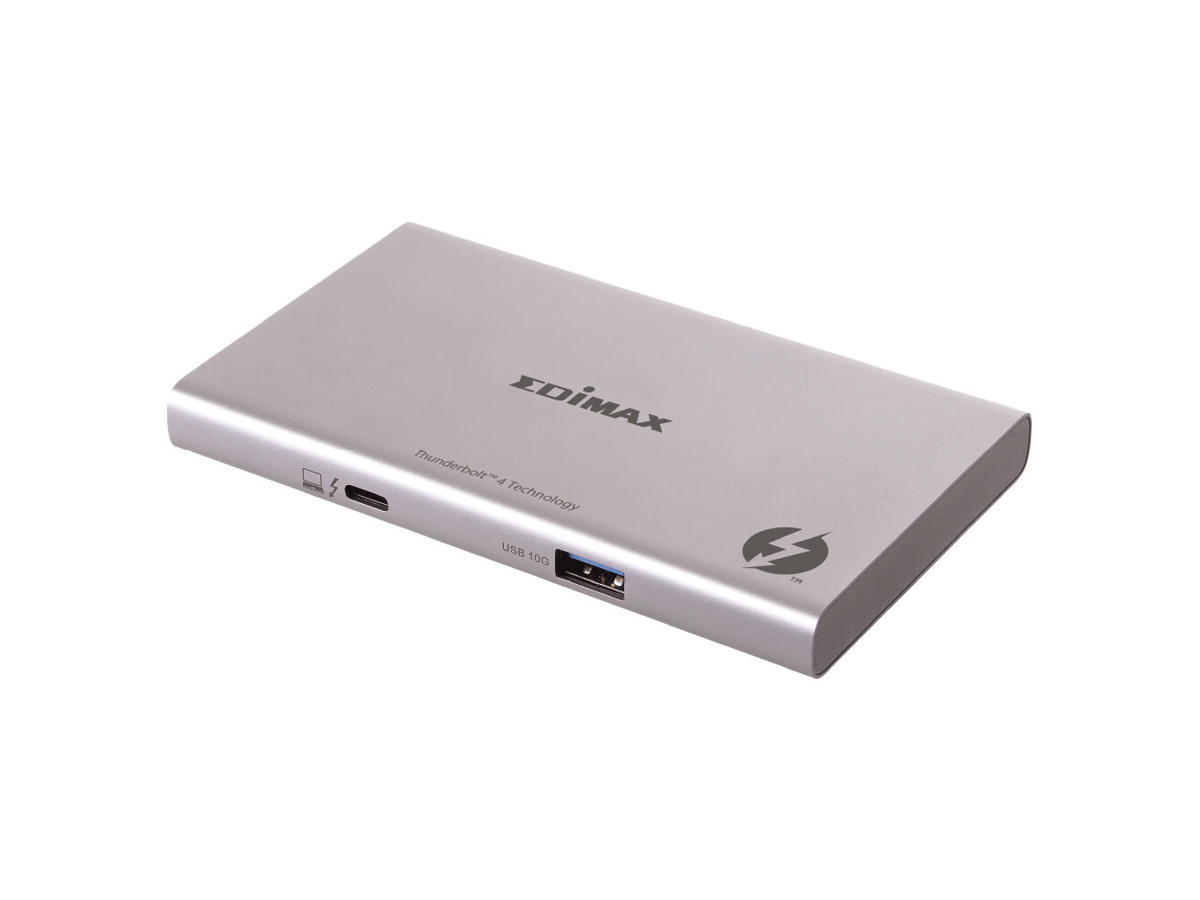

5-in-1 Thunderbolt™ 4 that Does It All
Powered by the latest Thunderbolt™ 4 technology with Intel® Goshen Ridge controller, the EDIMAX TD-405BP Thunderbolt™ 4 Certified Mini Docking Station is designed to enhance productivity for creative professionals and gamers alike. Handle data, video, audio transfers efficiently and creatively.
Superfast Speed Up to 40Gbps
With Thunderbolt™ 4 technology and Intel ® Goshen Ridge solution, the TD-405BP supports reliable data, audio and video, up to 40Gbps astonishing and superfast speed between Thunderbolt™ 4 or 3 USB-C devices.
Smart Power Charging Up to 85W
Supports a smart power design, with dynamic power delivery from the 100W power supply unit (PSU) to powered-devices of up to max. 85W according to the power consumption of the connected devices from the upstream (max. 60W) and downstream ports.
HD Triple-4K or Single 8K Display
The Thunderbolt™ 4 mini docking station delivers authentic high-quality audio and crystal-clear video to an 8K, dual-4K or even triple-4K displays*. (Triple-4K display requires compatibility with DisplayPort Multi-Stream Transport (MST) technology.)
5-in-1, Wide Compatibility
The TD-405BP mini docking station works with all Thunderbolt™ , USB Type-C and Type-A devices which are compatible with USB4/USB3.2/USB3.1/USB2.0, Thunderbolt 4/3/2, DisplayPort 1.4, DisplayPort Alternate Mode (DP Alt Mode), PCI-E 3.0 standards.
Slim, Stylish Aluminum Casing
The TD-405BP 5-in-1 Thunderbolt™ 4 mini docking station comes with a slim and stylish design chassis. The durable aluminum casing is optimized for the heat transfer without fans, ensuring excellent power delivery performance.
Flexible Daisy-Chain
With Thunderbolt™ 4 daisy chain technology, the TD-405BP can connect up to 6 Thunderbolt™ 4 or 3 USB-C enabled devices including hubs, docking stations, monitors, PCs, external graphics cards, SSD drives, displays and more.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | Thunderbolt 4 |
Mikrofonindgang | Ingen |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
USB strømforsyning | Ja |
USB strømforsyning op til | 60 W |
Thunderbolt 4 porte antal | 3 |
Netværk | |
Ethernet LAN | Ingen |
Præstation | |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 40 Gbit/sek. |
Maksimal digital opløsning | 7680 x 4320 pixel |
Husmateriale | Aluminium |
Certificering | CE, FCC, Intel Thunderbolt 4 Certified |
Strømstyring | |
Strømkilde type | DC |
Strømforsyning | 100 W |
Software | |
Understøttede Windows-operativsystemer | Windows 10 |
Understøttede Mac-operativsystemer | Mac OS X 11.0 Big Sur |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | 0 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 74 mm |
Dybde | 124 mm |
Højde | 13 mm |
Vægt | 165 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Emballage indhold | |
Hurtig start guide | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 84733020 |
