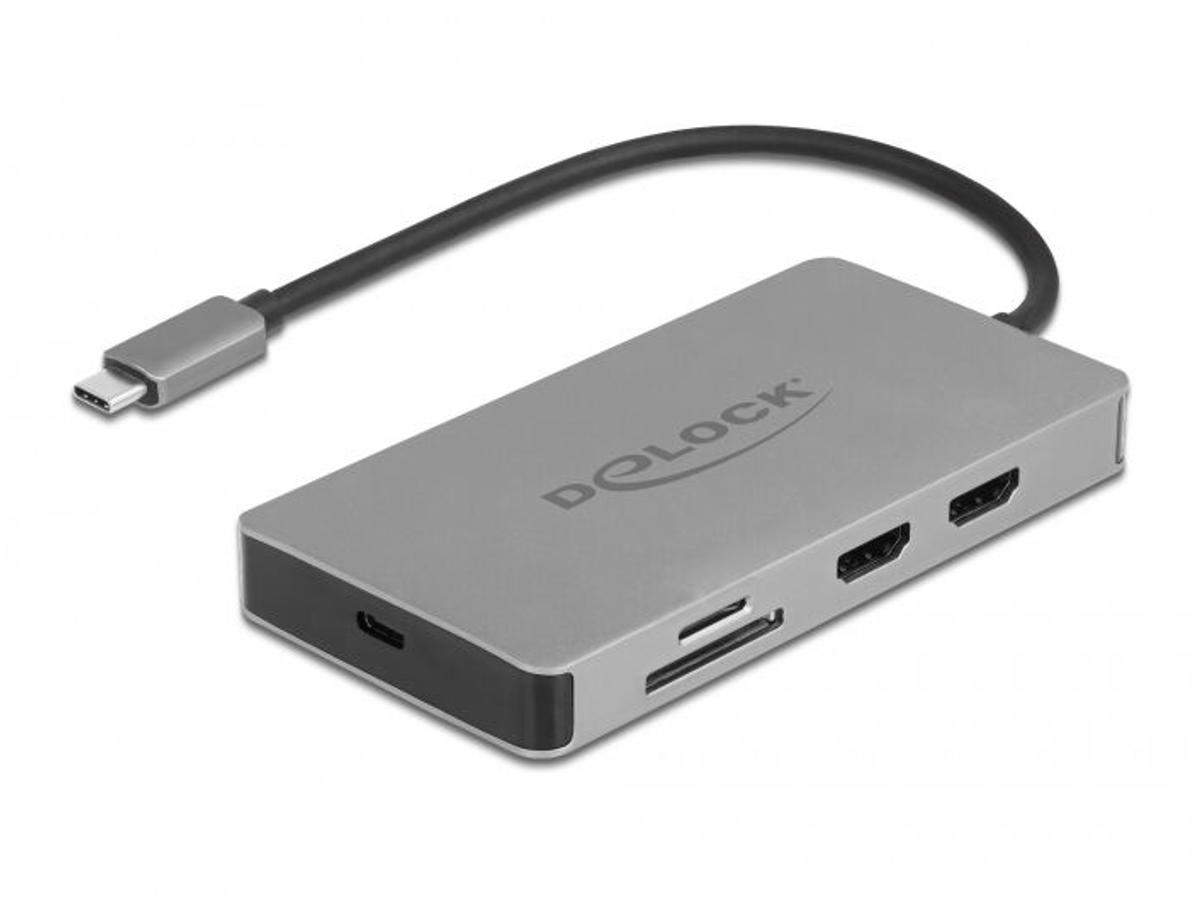

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Two built-in USB ports allow the use of peripherals, and connections for Gigabit network, as well as an SD and Micro SD card reader, complete the features.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 4K 60 Hz per monitor.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. In addition it also supplies the USB ports with power. The docking station can also be used without a power supply.
Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
Antal HDMI-porte | 2 |
USB strømforsyning | Ja |
USB strømforsyning op til | 85 W |
Antal DisplayPorts | 2 |
DisplayPort-version | 1.4 |
HDCP | Ja |
HDCP-version | 1.4/2.2 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Præstation | |
Produktfarve | Grå |
Indbygget kortlæser | Ja |
Kompatible hukommelseskort | MicroSD (TransFlash), SD, SDHC, SDXC |
HD-type | 4K Ultra HD |
Maksimal digital opløsning | 3840 x 2160 pixel |
Maksimal opdateringshastighed | 60 Hz |
High Dynamic Range (HDR) understøttet | Ja |
Skærm funktioner | Udvidet, Spejl |
Plug and play | Ja |
Husmateriale | Metal |
Strømstyring | |
Strømkilde type | USB |
Strømstik | USB Type-C |
Strømkabellængde | 0,2 m |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64 |
Understøttede Mac-operativsystemer | Mac OS X 10.15 Catalina |
Understøttede Linux-operativsystemer | Ja |
Vægt & størrelser | |
Bredde | 59 mm |
Dybde | 115 mm |
Højde | 14 mm |
