This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode, Thunderbolt™ 3 or Thunderbolt™ 4 and provides a variety of interfaces. Three monitors can be operated at the monitor outputs at the same time. Five built-in USB ports allow the use of peripherals and another USB port can be used to charge mobile devices. Connectors for a microphone and speaker, a Gigabit network connection, as well as a card reader for SD memory cards complete the features.
Triple Display 4K UHD resolution
When using the three video outputs at the same time, one monitor is operated via DisplayPort Alternate Mode, the other two via DisplayLink®. One port can be used from each double group of DisplayPort and HDMI connector. The Delock docking station can also be operated on devices without a USB Type-C™ port with DP Alt Mode support, with a video output on a maximum of two monitors.
A maximum resolution of 4K on all ports can be guaranteed, regardless of the operating system. Due to the DisplayLink® graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.
USB Power Delivery (USB PD 3.0) support up to 96 watt
Via the power supply, which is connected to the docking station, the host device is charged with up to 96 watts during operation.

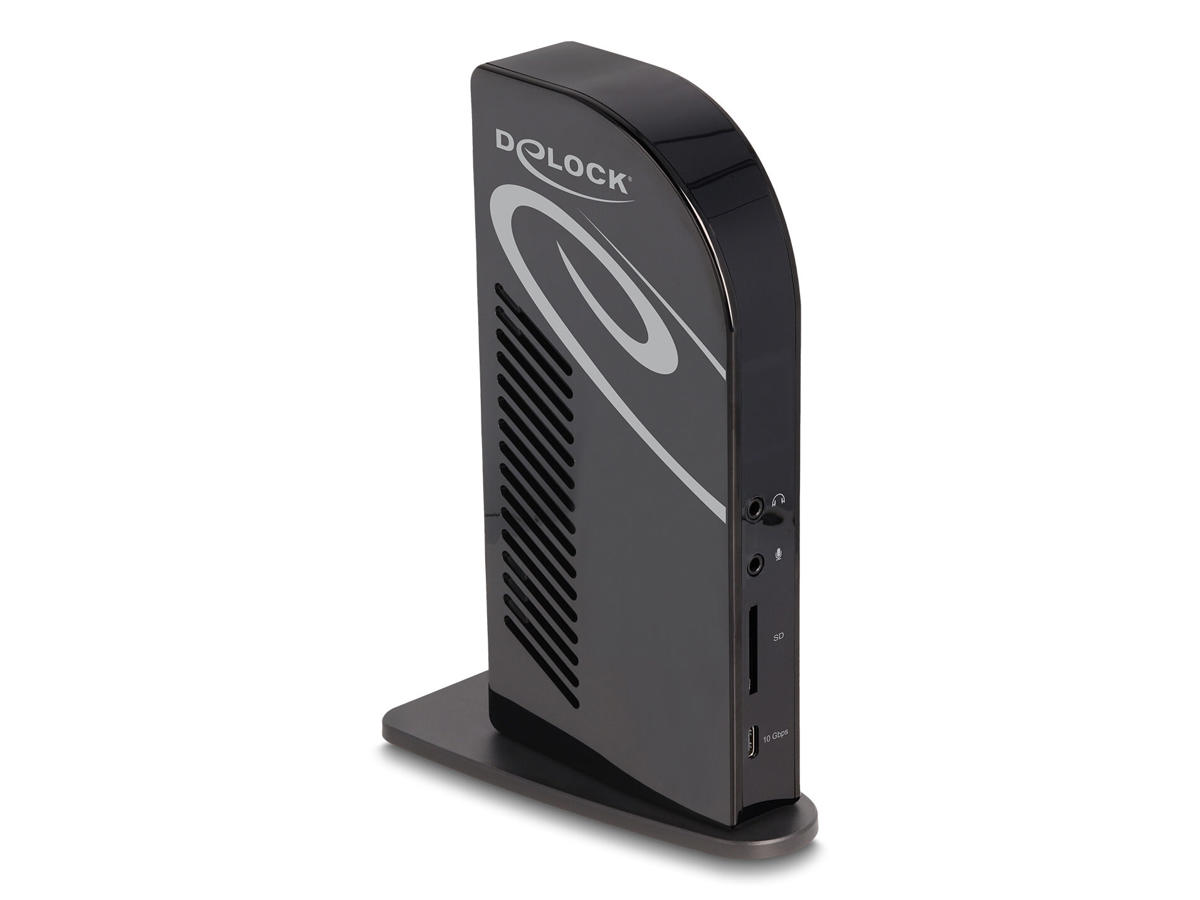

Stand
Due to the vertical installation, the Delock docking station takes up less space on the desk.
Porte & Grænseflader | |
Forbindelsesteknologi | Docking |
Værtsgrænseflade | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
Antal HDMI-porte | 3 |
Mikrofonindgang | Ja |
Udgange til hovedtelefoner | 1 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
USB strømforsyning | Ja |
USB strømforsyning revision | 3.0 |
USB strømforsyning op til | 96 W |
Antal DisplayPorts | 3 |
Tilslutning af hovedtelefoner | 3,5 mm |
DC-in-stik | Ja |
USB type-C DisplayPort alternativ tilstand | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Præstation | |
Produktfarve | Sort |
Indbygget kortlæser | Ingen |
Kompatible hukommelseskort | SD |
Maksimal digital opløsning | 3840 x 2160 pixel |
Antal understøttede skærme | 3 |
Maksimal opdateringshastighed | 60 Hz |
Skærm funktioner | Udvidet, Spejl |
LED-indikatorer | Ja |
Plug and play | Ja |
Funktion for opladning | Ja |
Oprindelsesland | Kina |
Mærke kompatibilitet | Alle mærker |
Strømstyring | |
Strømkilde type | Vekselstrøm |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Indgangsstrøm | 2.37 A |
Strømforsyning | 135 W |
Udgangsspænding | 20 V |
Udgangsstrøm | 6,75 A |
Strømkabellængde | 1,8 m |
USB-kabellængde | 1 m |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
Understøttede Mac-operativsystemer | Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
Vægt & størrelser | |
Bredde | 94 mm |
Dybde | 195 mm |
Højde | 35 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Emballage indhold | |
Kabler inkluderet | Strøm, USB Type-A til Micro-USB Type-B, USB Type-C til Micro-USB Type-B |
Brugervejledning | Ja |
