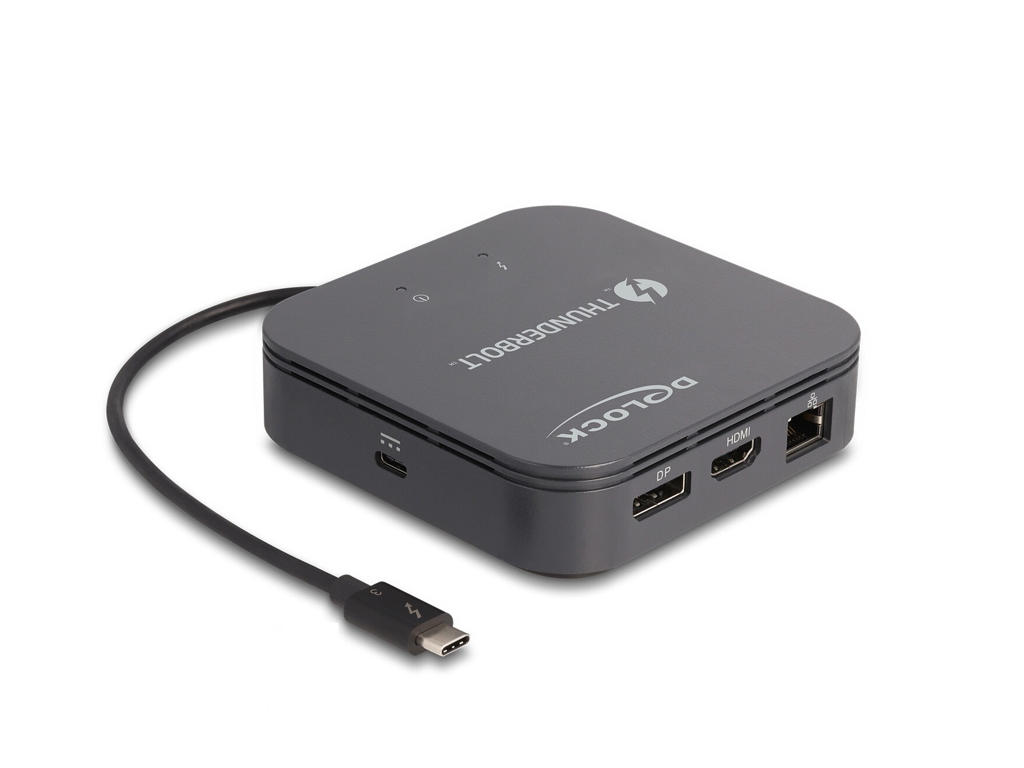

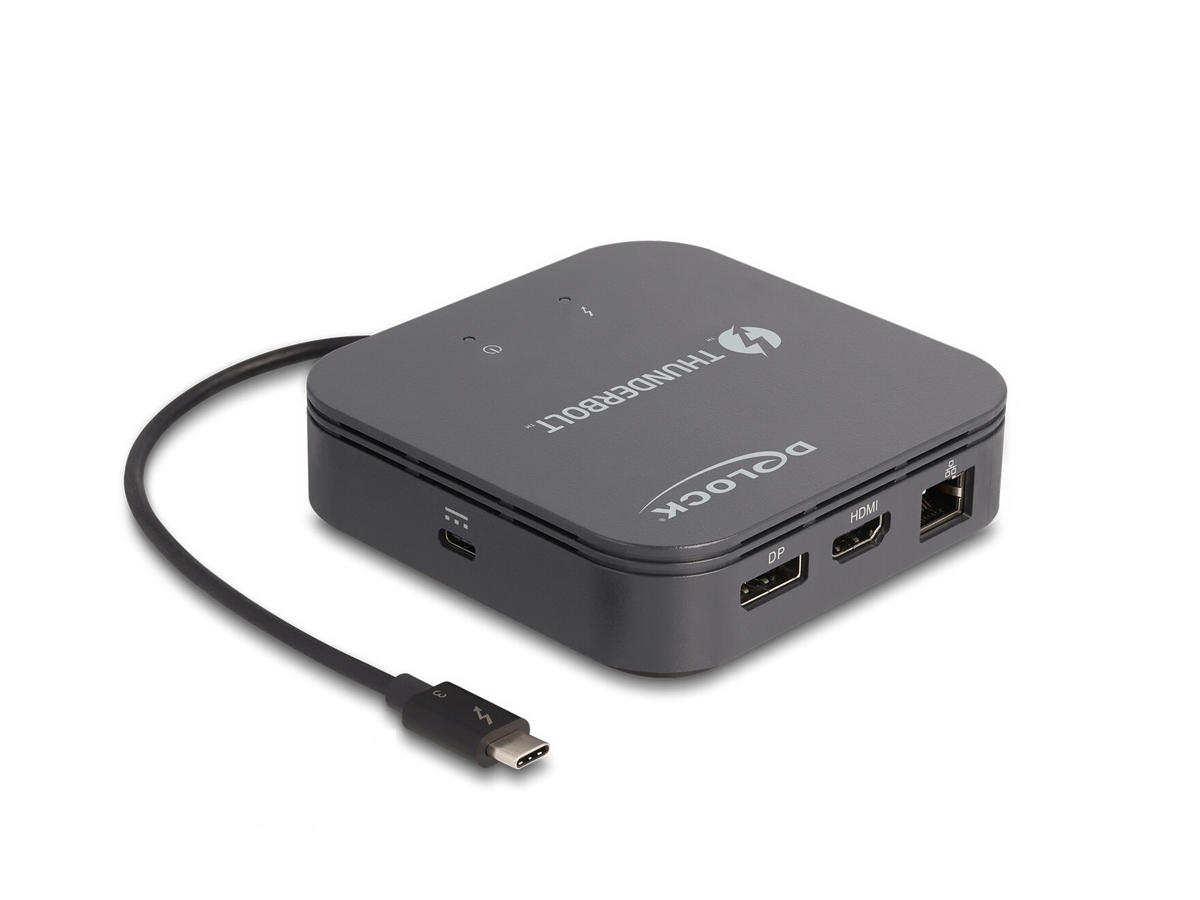

This Thunderbolt™ 3 mini docking station by Delock can be connected to a computer with a Thunderbolt™ 3 port and provides a variety of interfaces. The DisplayPort output allows the connection of an 8K display, the HDMI output a connection of a 4K display, two monitors with 4K resolution can be operated simultaneously. Two built-in USB ports allow the use of peripherals, connections for headset and Gigabit network complete the features.
Certified
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 4K 60 Hz per monitor.
USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.
Plug & Play
This device can simply be plugged in and is immediately ready for use. No extra power supply is needed when using the docking station.
Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | Thunderbolt 3 |
Antal HDMI-porte | 1 |
Mikrofonindgang | Ingen |
Udgange til hovedtelefoner | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
USB strømforsyning | Ja |
USB strømforsyning revision | 3.0 |
USB strømforsyning op til | 60 W |
Antal DisplayPorts | 1 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Tilslutning af hovedtelefoner | 3,5 mm |
HDCP | Ja |
HDCP-version | 2.2 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Præstation | |
Produktfarve | Sort |
Indbygget kortlæser | Ingen |
HD-type | 8K Ultra HD |
Maksimal digital opløsning | 7680 x 4320 pixel |
Maksimal opdateringshastighed | 60 Hz |
High Dynamic Range (HDR) understøttet | Ja |
Skærm funktioner | Udvidet, Spejl |
LED-indikatorer | Ja |
Plug and play | Ja |
Funktion for opladning | Ja |
Husmateriale | Plast |
Oprindelsesland | Kina |
Højt dynamikområde 10 (HDR10) | Ja |
Strømstyring | |
Strømkilde type | Thunderbolt 3 |
USB-kabellængde | 0,2 m |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
Understøttede Mac-operativsystemer | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Vægt & størrelser | |
Bredde | 100 mm |
Dybde | 100 mm |
Højde | 25 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Emballage indhold | |
Brugervejledning | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
